TEHALIT.AK Overfloor trunking cover R12 fi306 1-side slanted 400mm 400x70mm steel AKM400306R12

local index:
TKM339TEHA
Catalog No:
AKM400306R12
EAN code:
4012002243718
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 400
Function: Standard
Price:
54,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

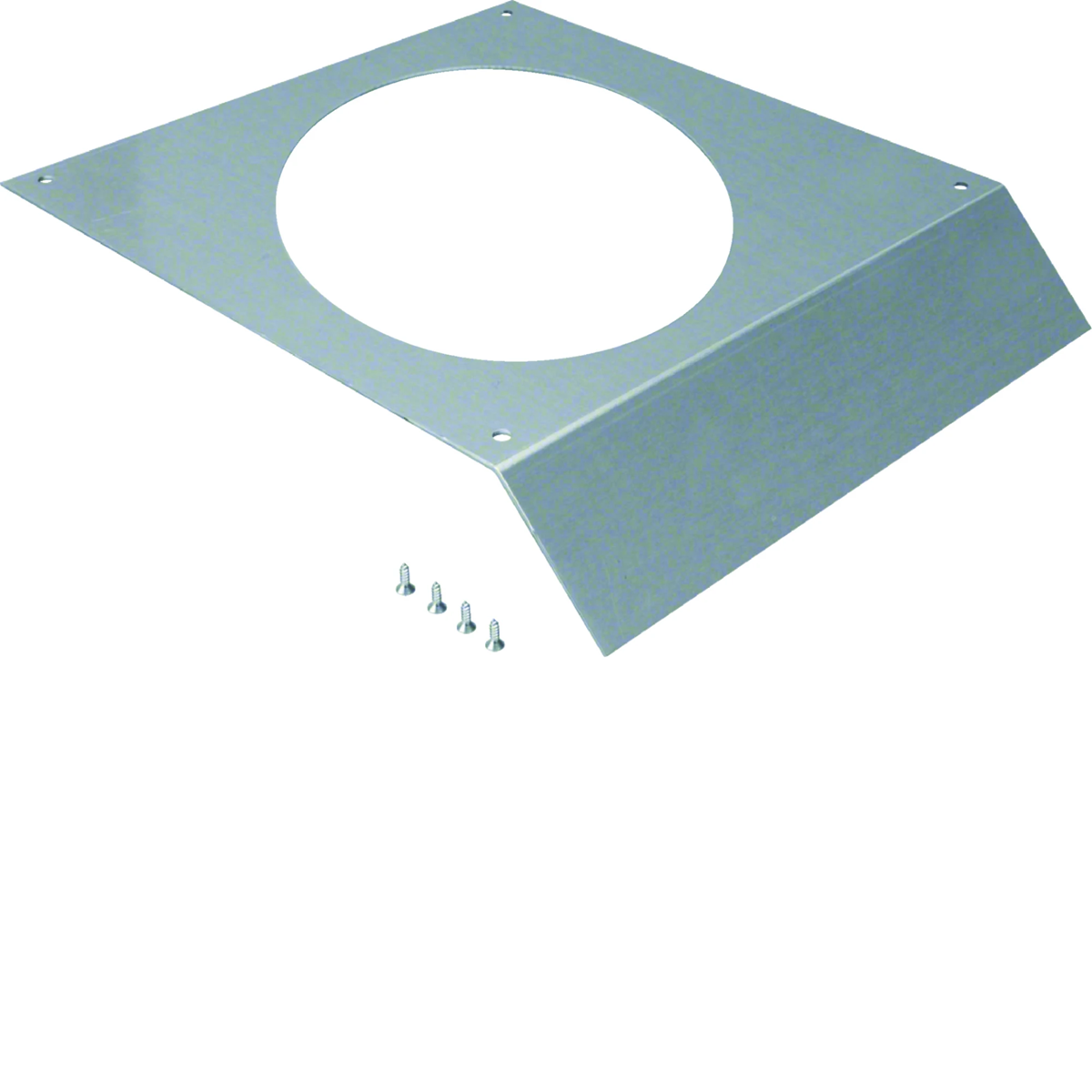

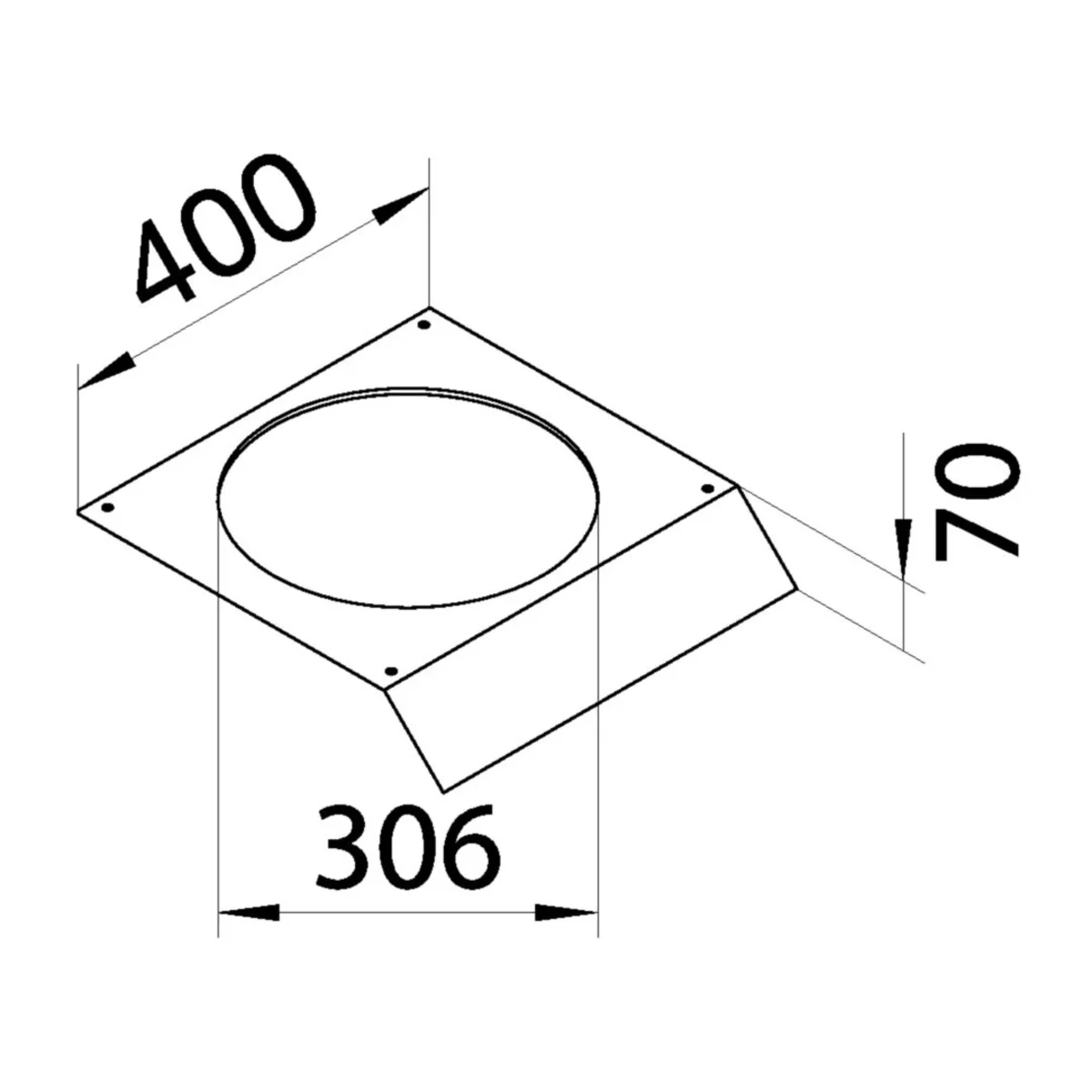

R12 overfloor trunking cover with a mounting hole, diameter 306mm, one-sided slanted, tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Technical data

  • Halogen free
    Yes
  • Function
    Standard
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    70
  • PKWIU
    25.99.29.0
  • Length [mm]
    400
  • Number of mounting holes
    1
  • Material
    Galvanized steel sheet
  • Width [mm]
    400
  • Accurate color
    galvanized

Other technical data

  • Model
    Cover one-sided bevelled
  • Function
    Standard
  • Height
    70 mm
  • Mounting opening
    Round
  • With connection opening
    No
  • With protrusion/offset
    No
  • Width
    400 mm
  • Length
    400 mm
  • Number of mounting openings
    1
  • Material
    Steel

Bulk packaging

A kind of package Paleta
Quantity 1 pcs. 1 pcs.
Weight (kg) 4,707 4,707
Width (m) 0,475 -
Length (m) 0,070 -
Depth (m) 0,400 -
