Name: TEHALIT.AK Overfloor trunking cover Q06 200x200 1-side slanted 400mm 400x70mm steel
Brand: TEHALIT
SKU: TKM334TEHA
Price: 54.96 PLN

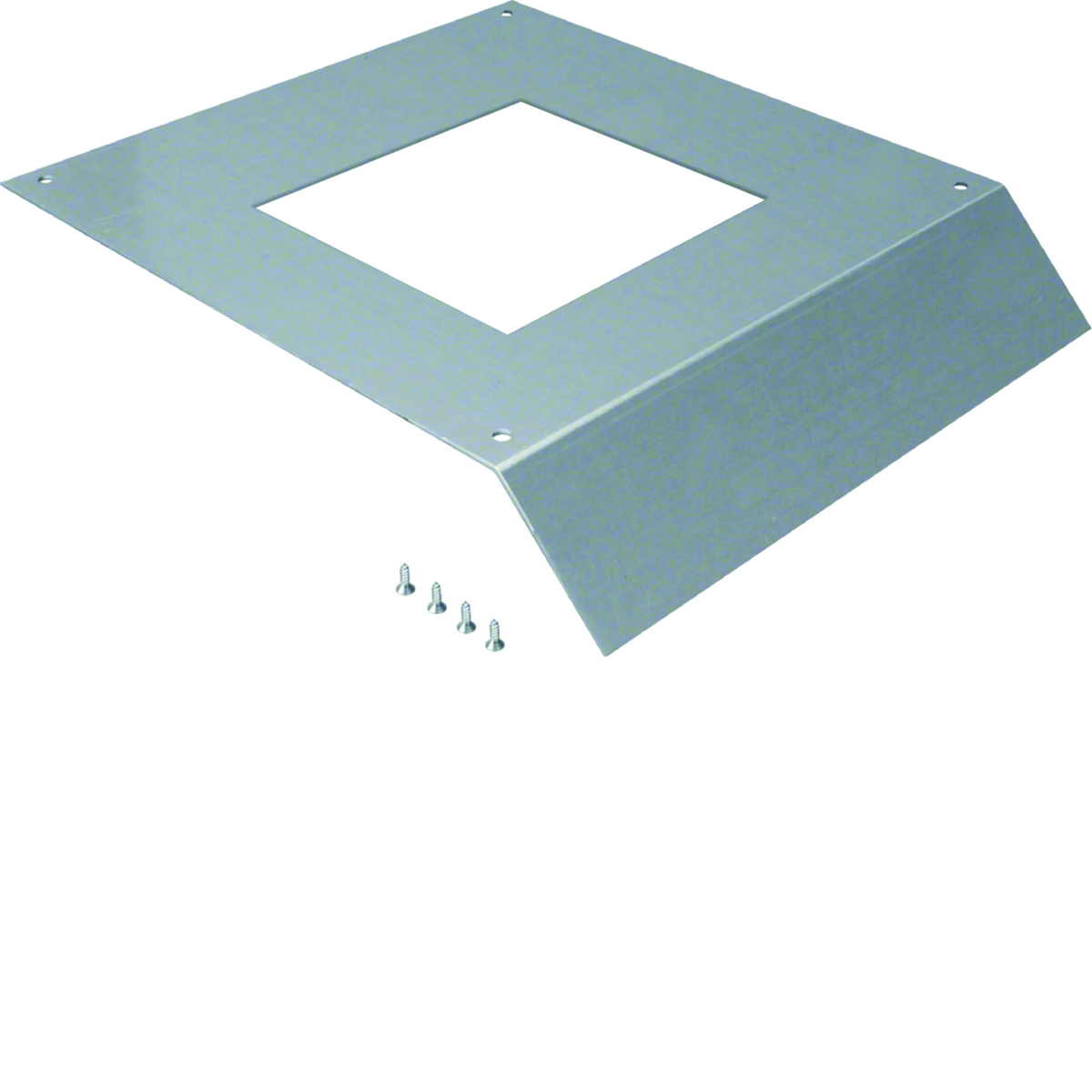

Q06 above-floor trunking cover with a 200x200mm mounting hole, slanted on one side, tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Halogen free

Yes
Function

Standard
Color

Silver
Family

TEHALIT.AK
Height [mm]

70
PKWIU

25.99.29.0

Length [mm]

400
Number of mounting holes

1
Material

Galvanized steel sheet
Width [mm]

400
Accurate color

galvanized

Other technical data

Model

Cover one-sided bevelled
Function

Standard
Height

70 mm
Mounting opening

Square
With connection opening

No

With protrusion/offset

No
Width

400 mm
Length

400 mm
Number of mounting openings

1
Material

Steel

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	80 pcs.
Weight (kg)	4,706	4,707	401,560
Width (m)	0,475	0,400	0,800
Length (m)	0,070	0,070	1,050
Depth (m)	0,400	0,480	1,200
