TEHALIT.AK Overfloor trunking cover Q06 200x200 1-side slanted 400mm 250x70mm steel AKM250200Q06

local index:
TKM321TEHA
Catalog No:
AKM250200Q06
EAN code:
4012002243473
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 400
Function: Standard
Price:
42,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

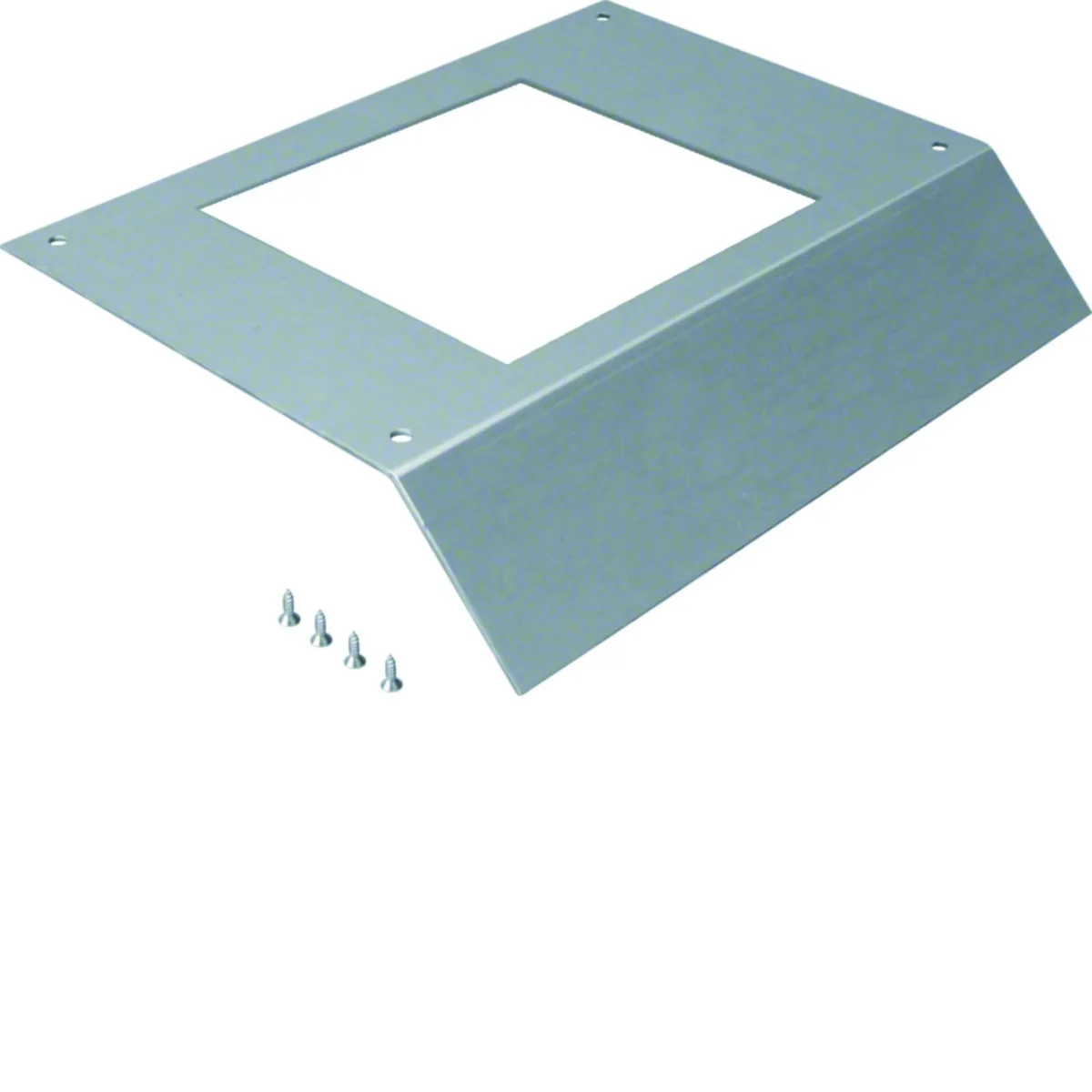

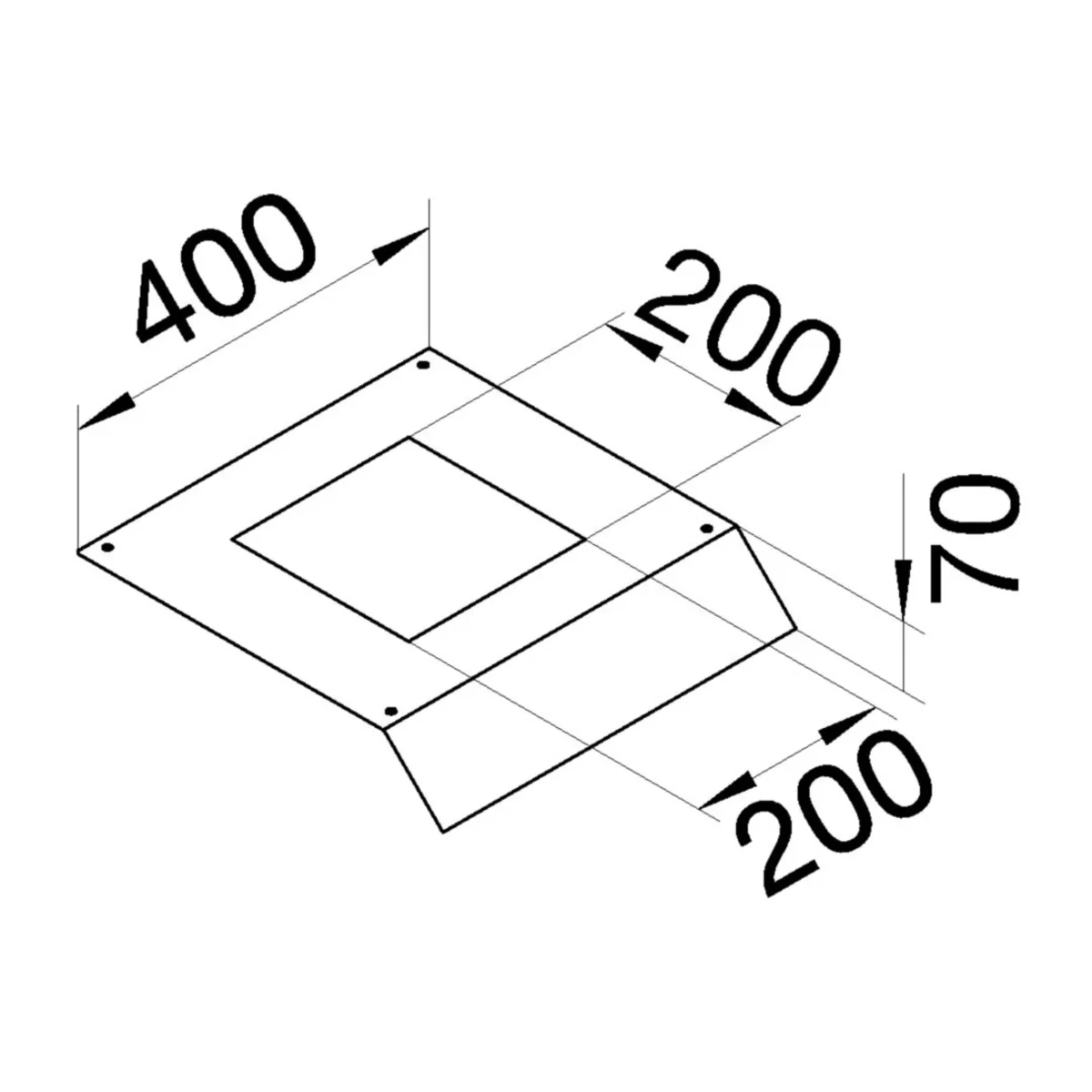

Q06 above-floor trunking cover with a 200x200mm mounting hole, slanted on one side, tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Technical data

  • Halogen free
    Yes
  • Function
    Standard
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    70
  • PKWIU
    25.99.29.0
  • Length [mm]
    400
  • Number of mounting holes
    1
  • Material
    Galvanized steel sheet
  • Width [mm]
    250
  • Accurate color
    galvanized

Other technical data

  • Model
    Cover one-sided bevelled
  • Function
    Standard
  • Height
    70 mm
  • Mounting opening
    Square
  • With connection opening
    No
  • With protrusion/offset
    No
  • Width
    250 mm
  • Length
    400 mm
  • Number of mounting openings
    1
  • Material
    Steel

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 16 pcs.
Weight (kg) 3,293 3,294 92,704
Width (m) 0,325 - -
Length (m) 0,070 - -
Depth (m) 0,400 - -
