TEHALIT.AK Overfloor trunking cover GBZ fi50 1-side slanted 400mm 300x70mm steel AKM300050GBZ

local index:
TKM221TEHA
Catalog No:
AKM300050GBZ
EAN code:
4012002243480
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 400
Function: Standard
Price:
52,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

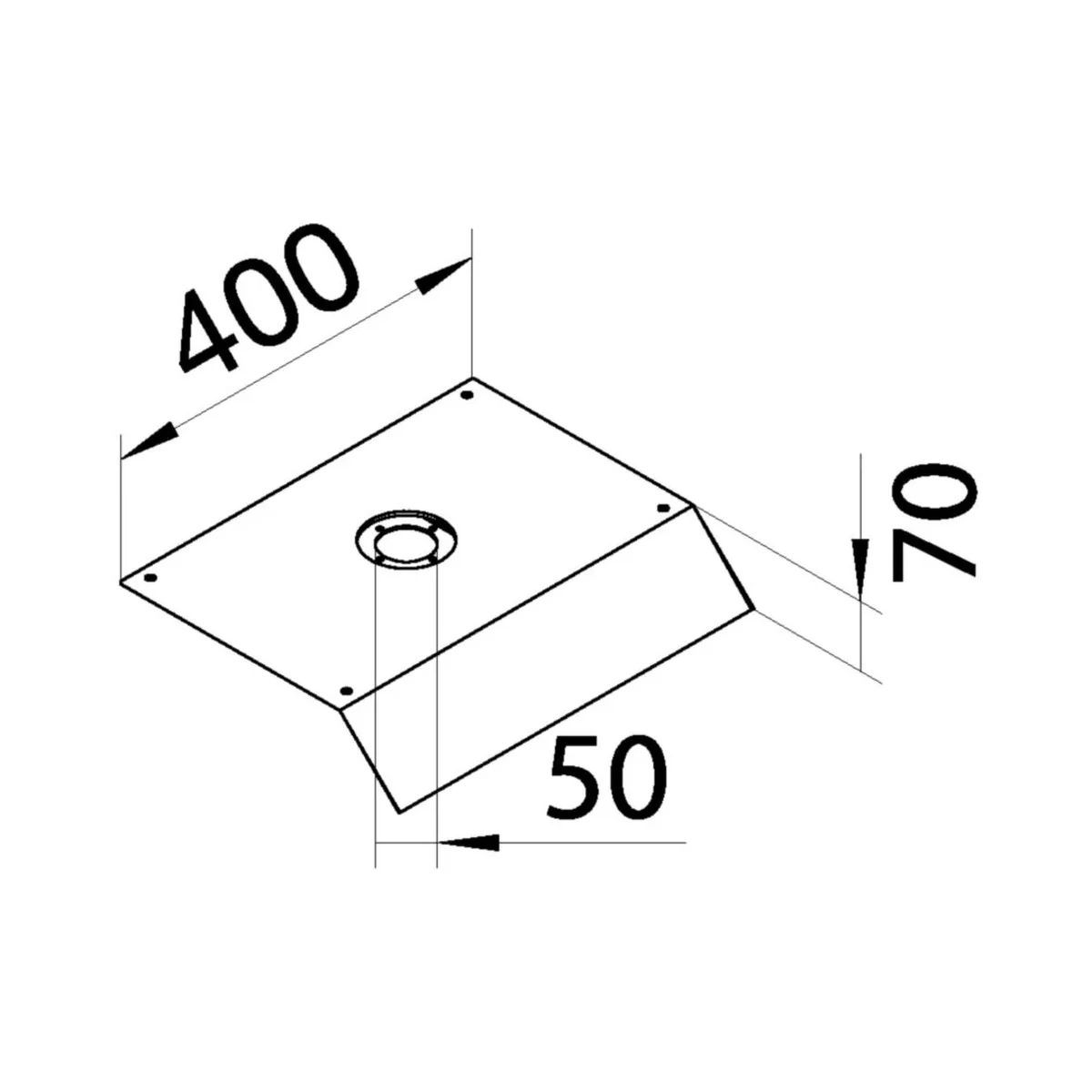

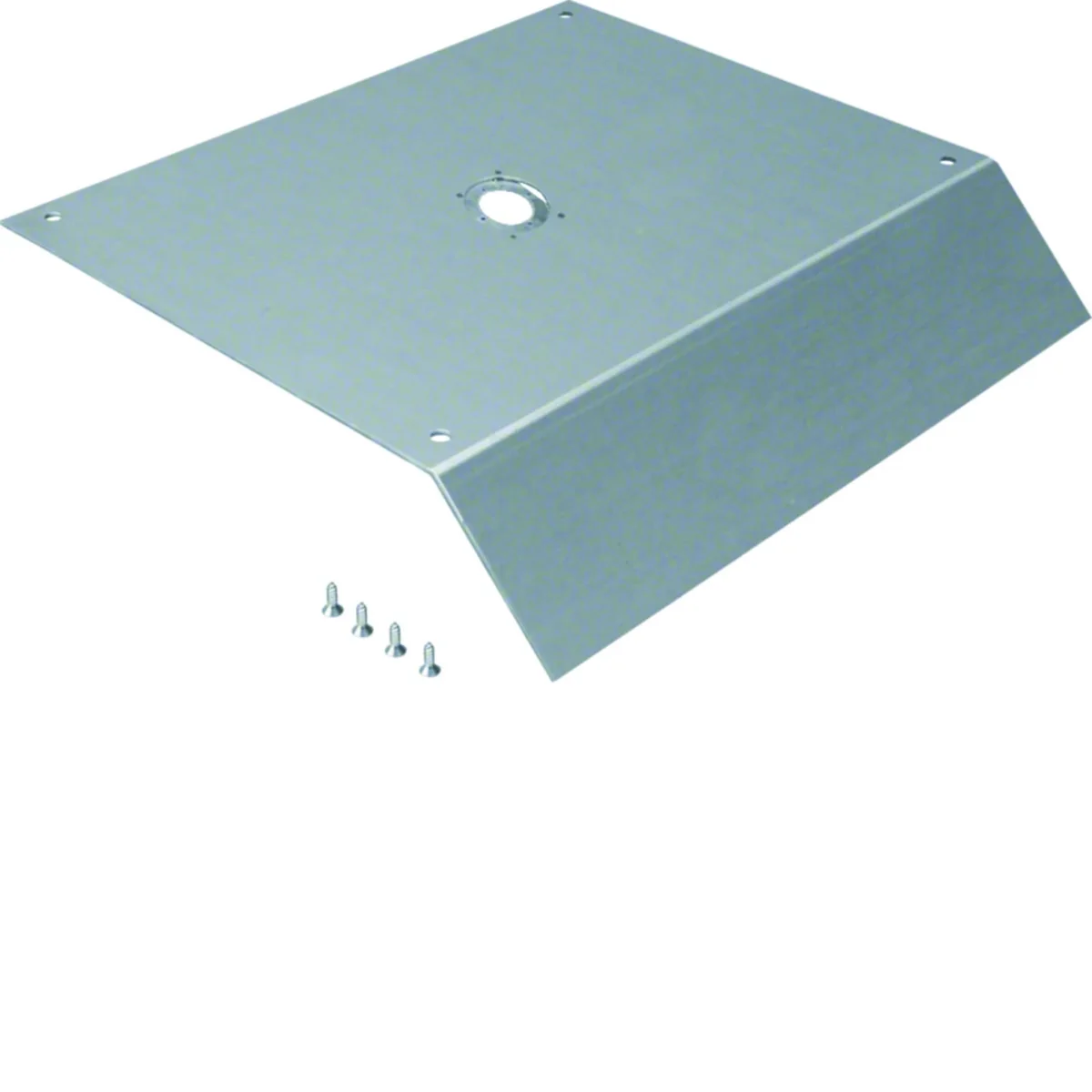

GBZ overfloor trunking cover with a 50mm diameter mounting hole, one-sided slanted, tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Technical data

  • Halogen free
    Yes
  • Function
    Standard
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    70
  • PKWIU
    25.99.29.0
  • Length [mm]
    400
  • Number of mounting holes
    1
  • Material
    Galvanized steel sheet
  • Width [mm]
    300
  • Accurate color
    galvanized

Other technical data

  • Model
    Cover one-sided bevelled
  • Function
    Standard
  • Height
    70 mm
  • Number of mounting openings
    1
  • Material
    Steel
  • With protrusion/offset
    No
  • Width
    300 mm
  • Length
    400 mm
  • With connection opening
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 1000 pcs.
Weight (kg) 3,765 4,244 4244,000
Width (m) 0,375 0,590 0,800
Length (m) 0,070 0,060 1,054
Depth (m) 0,400 0,610 1,200
