TEHALIT.AK Overfloor trunking cover 45° slanted on both sides 800mm 300x70mm steel AKBAZ3000702

local index:
TKM102TEHA
Catalog No:
AKBAZ3000702
EAN code:
4012002243145
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 800
Function: Connection
Price:
321,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

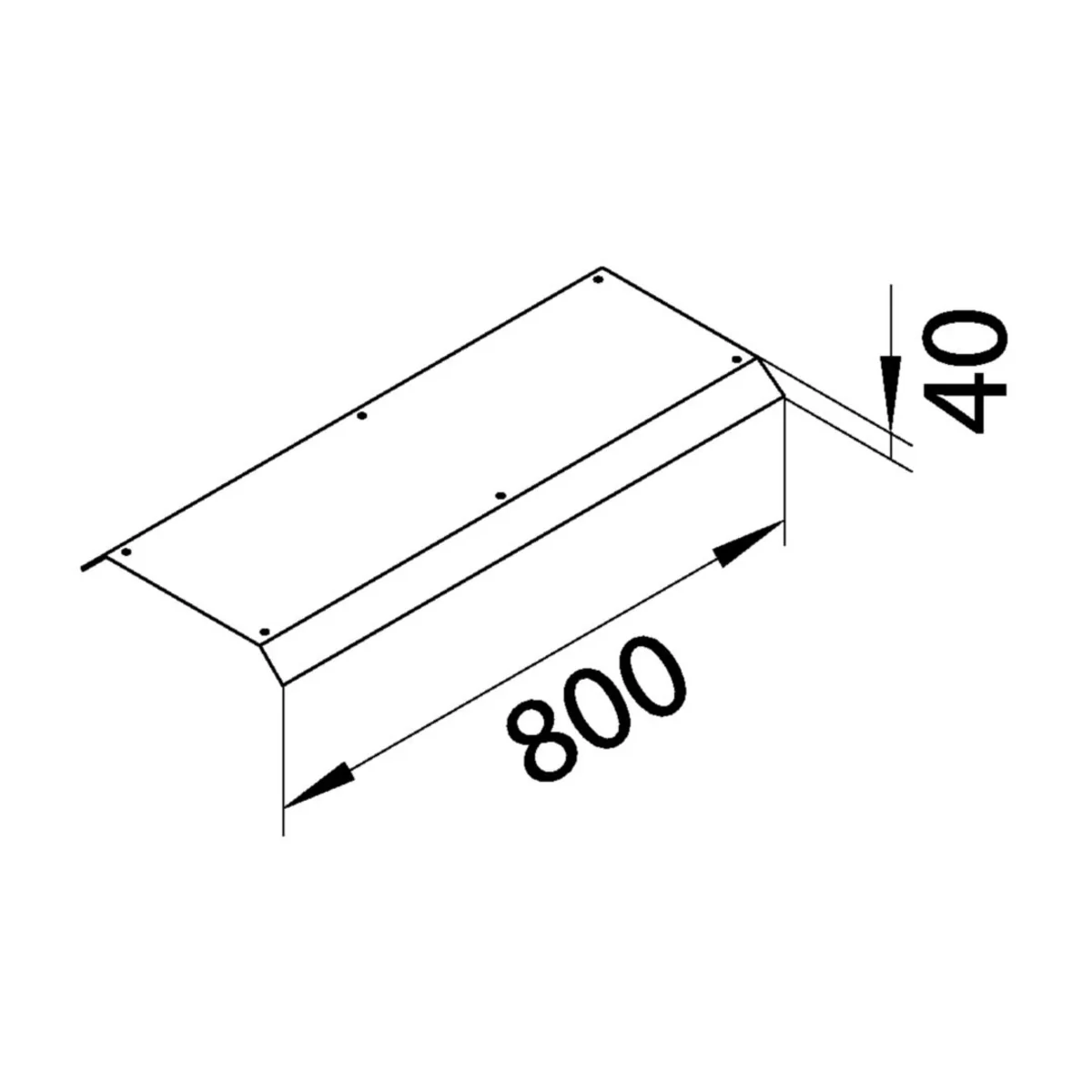

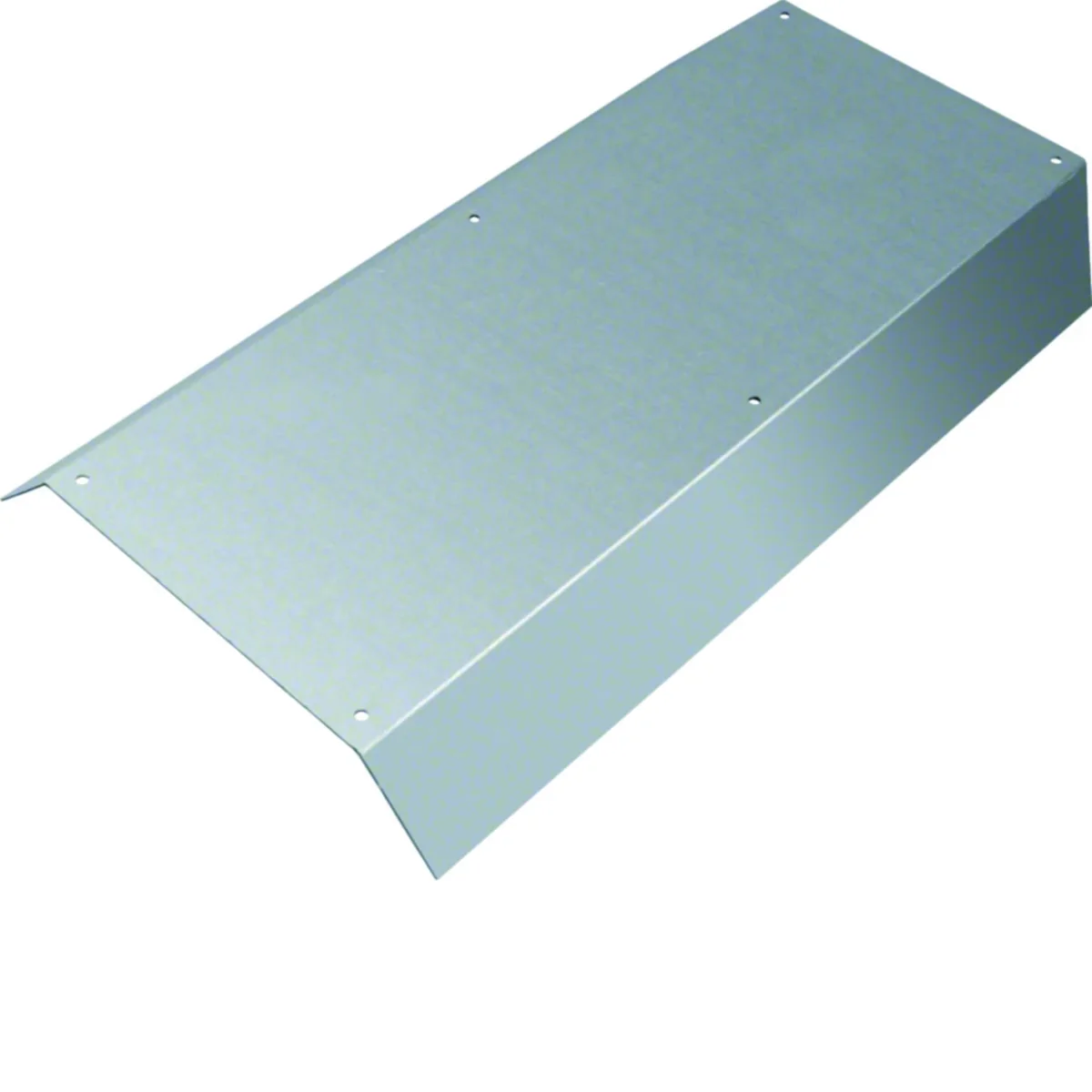

Cover cover slanted on both sides 45°, tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Technical data

  • Halogen free
    Yes
  • Function
    Connection
  • Material
    Metal
  • Width [mm]
    300
  • Accurate color
    galvanized
  • Length [mm]
    800
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    70
  • PKWIU
    25.99.29.0

Other technical data

  • Model
    Cover one-sided bevelled
  • Function
    Junction
  • Height
    70 mm
  • Mounting opening
    None
  • With connection opening
    No
  • With protrusion/offset
    No
  • Width
    300 mm
  • Length
    800 mm
  • Number of mounting openings
    0
  • Material
    Steel

Bulk packaging

A kind of package Karton
Quantity 1 pcs. 1 pcs.
Weight (kg) 9,411 9,411
Width (m) 0,443 -
Length (m) 0,070 -
Depth (m) 0,800 -
