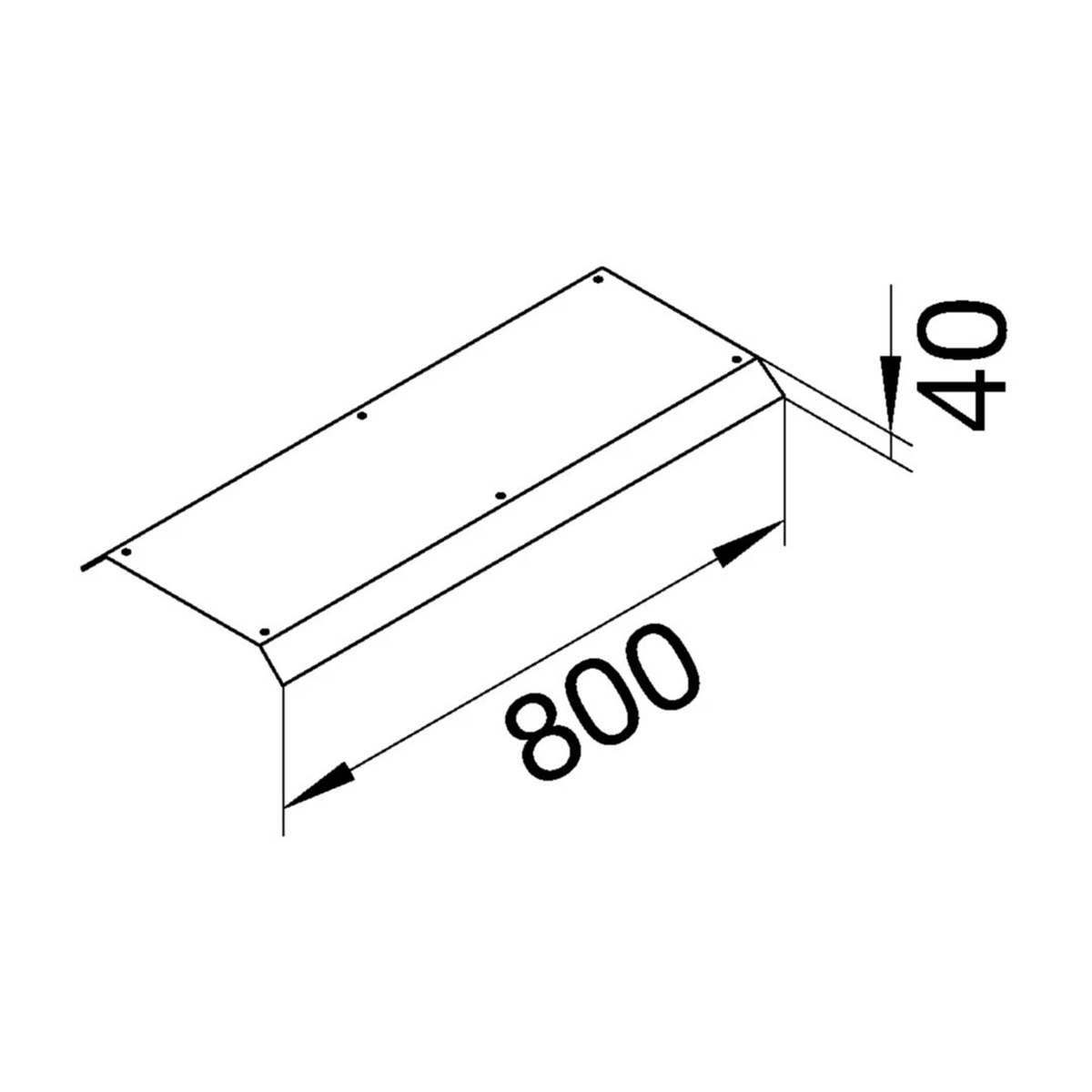

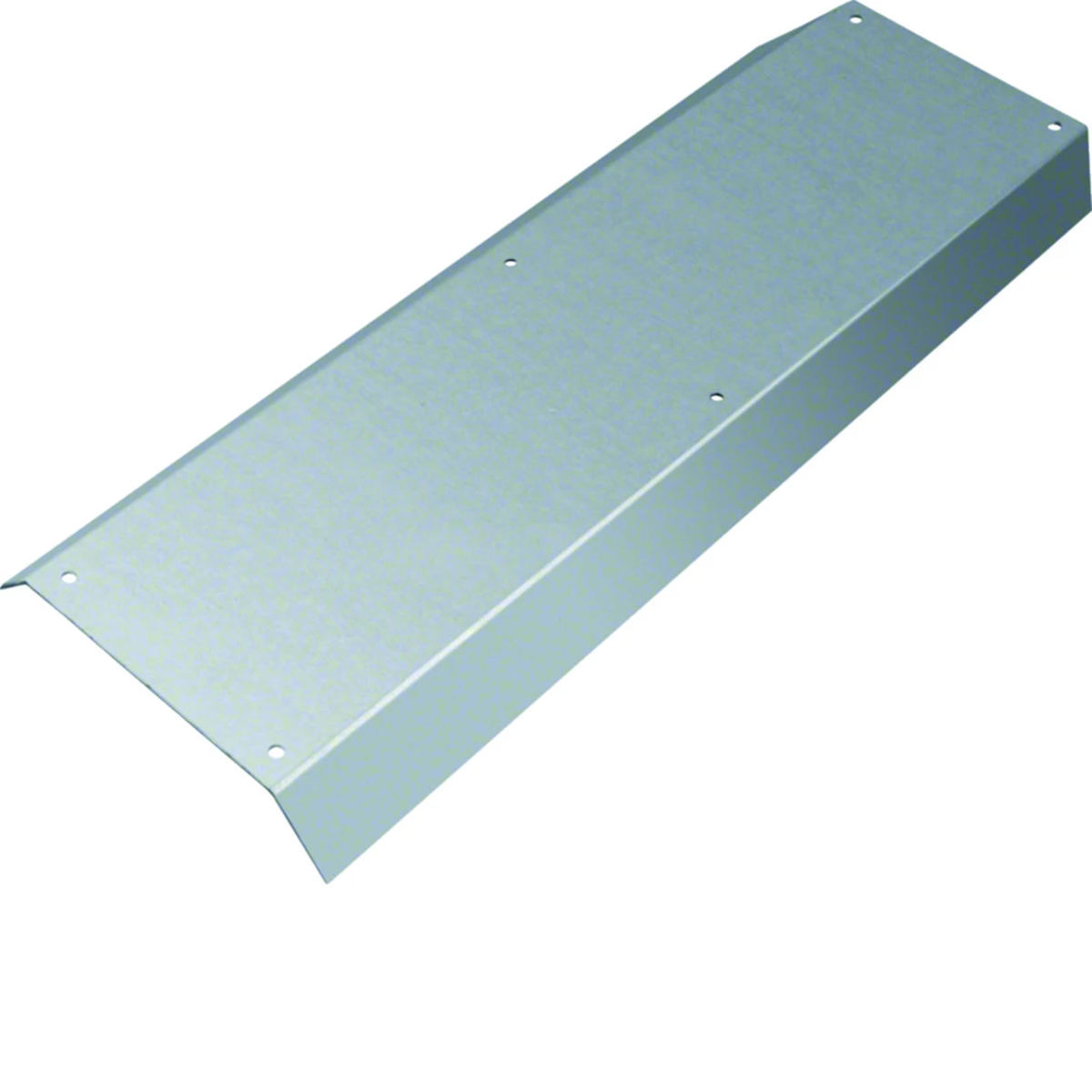

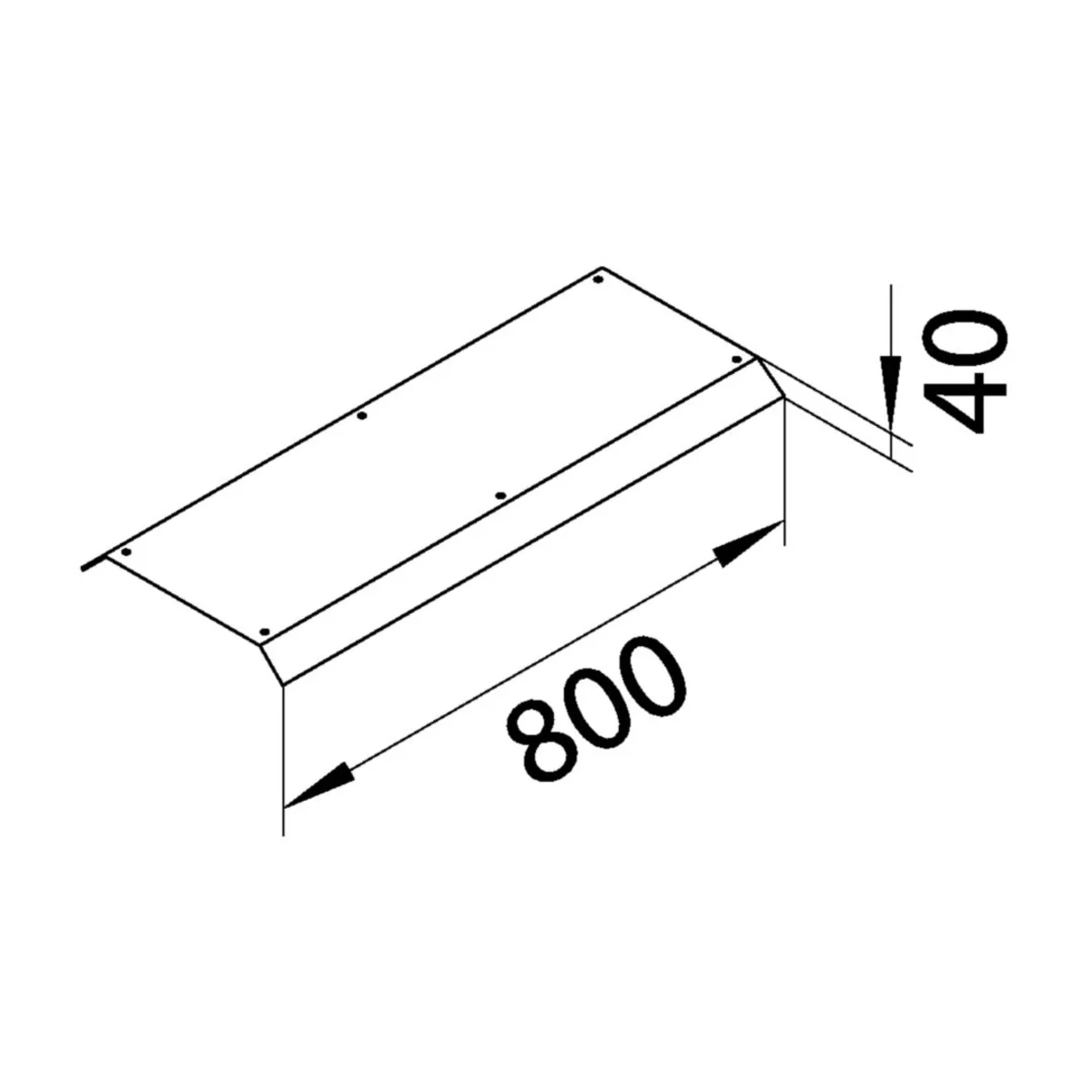

TEHALIT.AK Overfloor trunking cover 45° slanted on both sides 800mm 200x40mm steel AKBAZ2000402

local index:
TKM097TEHA
Catalog No:
AKBAZ2000402
EAN code:
4012002243091
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 800
Function: Connection
Price:
285,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cover cover slanted on both sides 45°, tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Technical data

  • Halogen free
    Yes
  • Function
    Connection
  • Material
    Metal
  • Width [mm]
    200
  • Accurate color
    galvanized
  • Length [mm]
    800
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    40
  • PKWIU
    25.99.29.0

Other technical data

  • Model
    Cover one-sided bevelled
  • Function
    Junction
  • Height
    40 mm
  • Mounting opening
    None
  • With connection opening
    No
  • With protrusion/offset
    No
  • Width
    200 mm
  • Length
    800 mm
  • Number of mounting openings
    0
  • Material
    Steel

Bulk packaging

A kind of package Paleta
Quantity 1 pcs. 1 pcs.
Weight (kg) 6,101 6,102
Width (m) 0,283 0,800
Length (m) 0,040 1,050
Depth (m) 0,800 1,200
