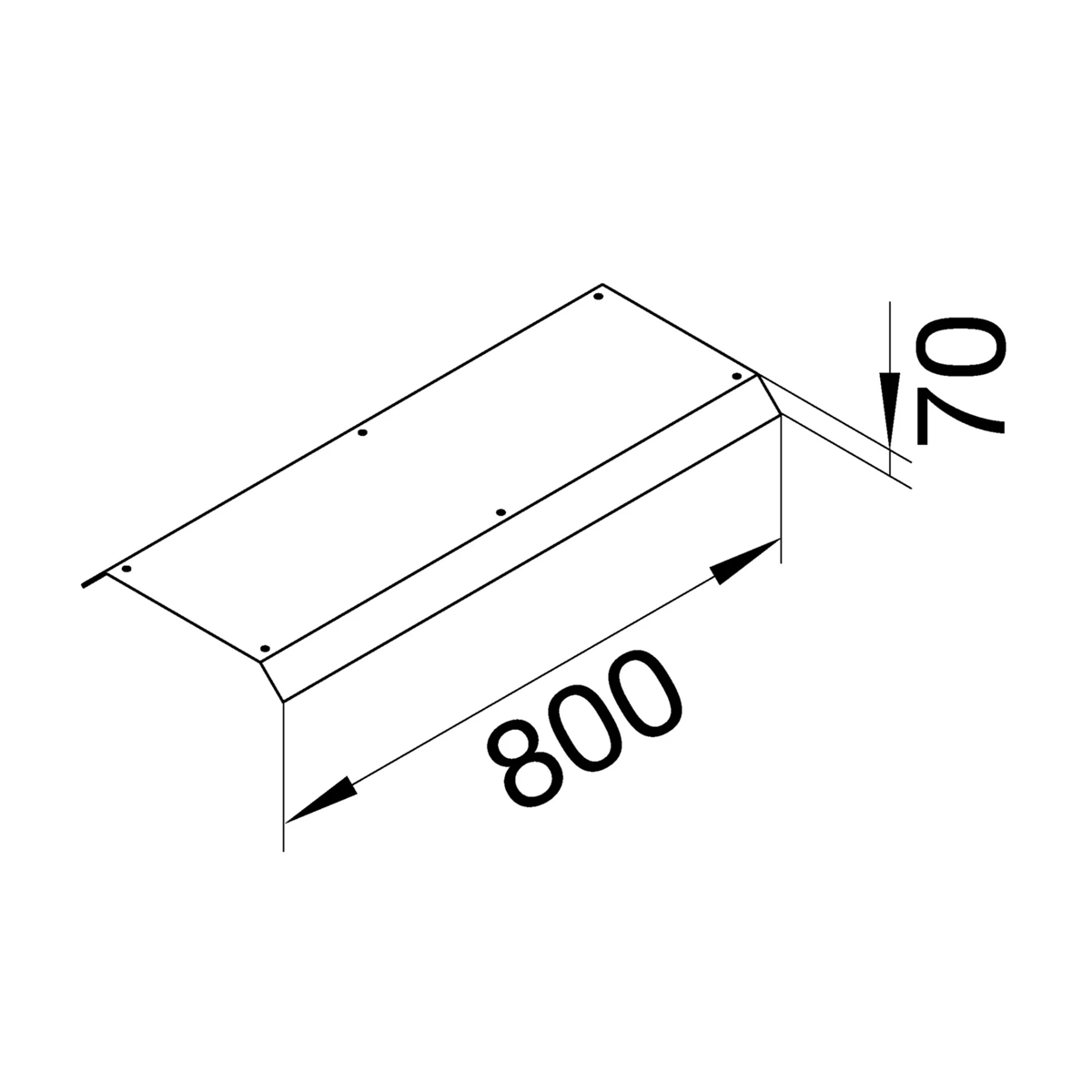

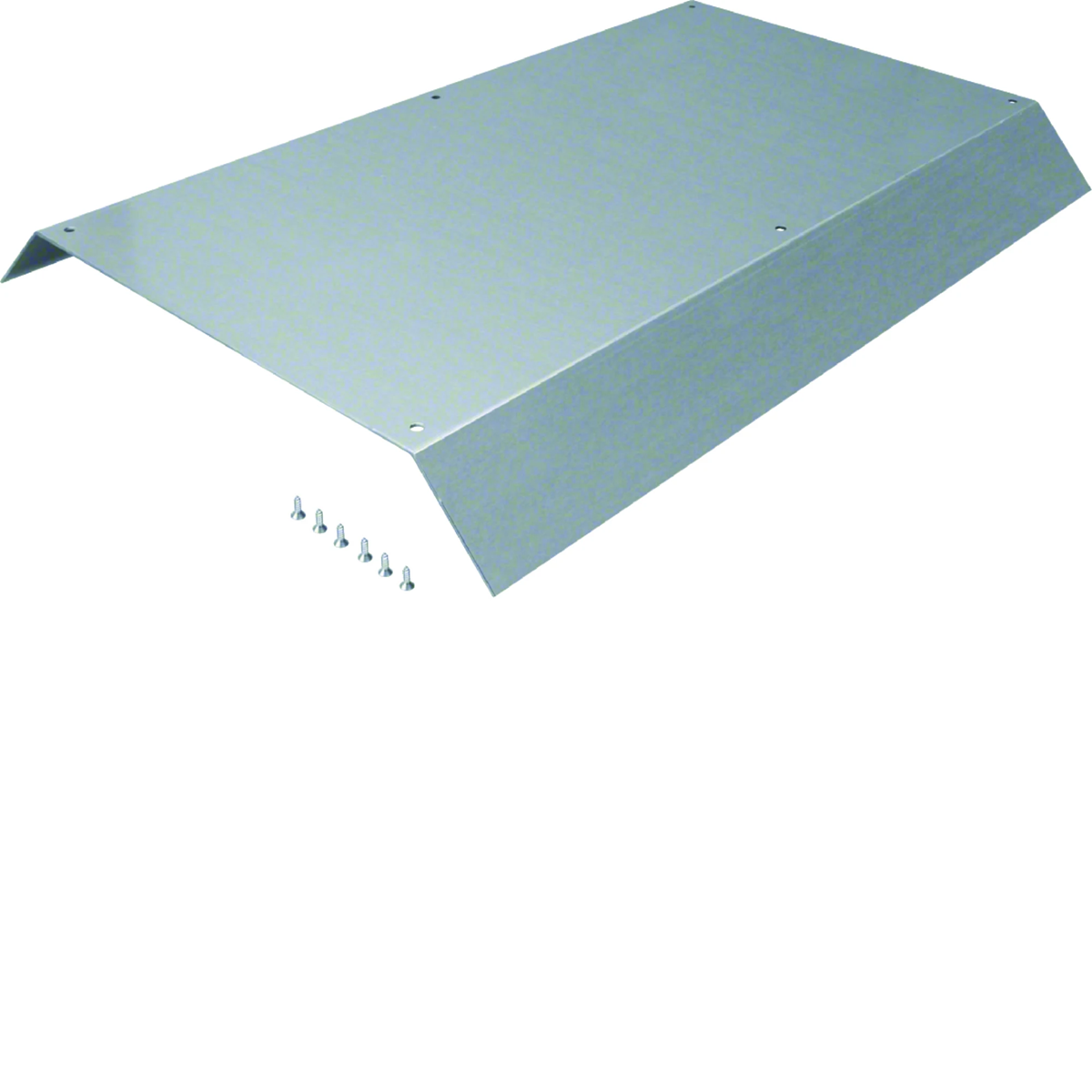

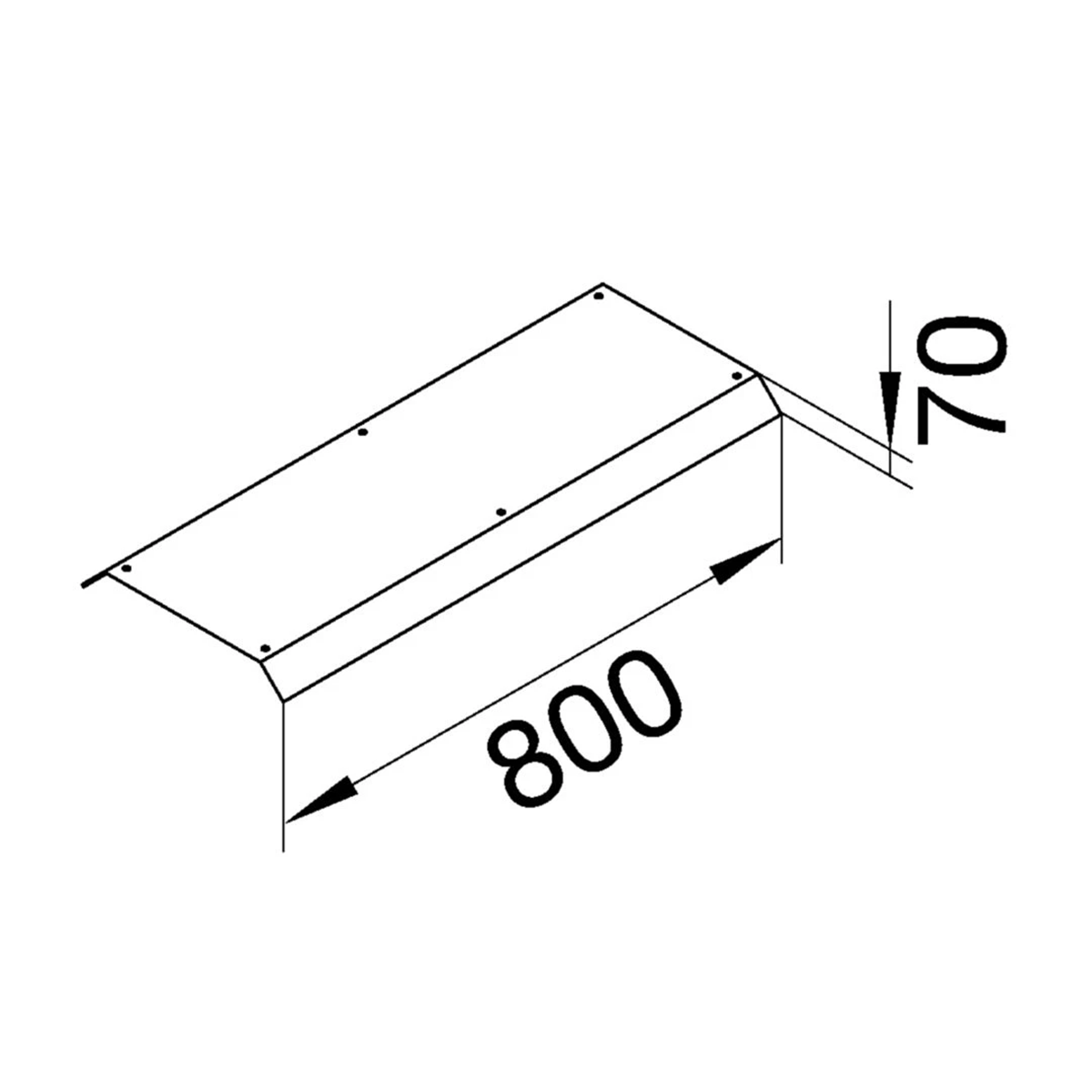

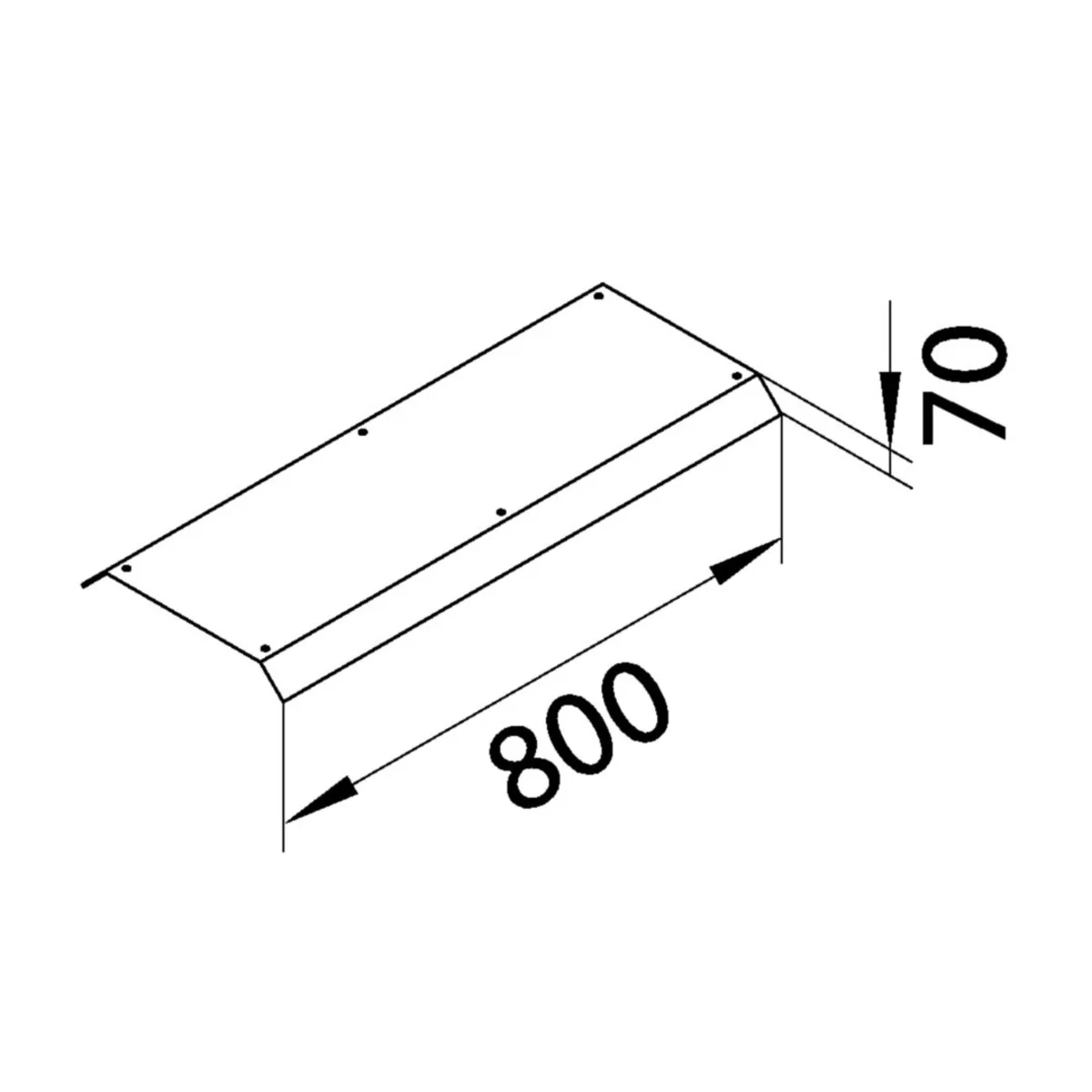

Name: TEHALIT.AK Overfloor trunking cover 2-sided slanted 800mm 400x70mm steel
Brand: TEHALIT
SKU: TKM084TEHA
Price: 88.06 PLN

Floor channel cover double-sided slanted tehalit.AK series.

Series characteristics:

< p> Above-floor ducts (installed on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Halogen free

Yes
Function

Standard
Material

Metal
Width [mm]

350
Accurate color

galvanized

Length [mm]

800
Color

Silver
Family

TEHALIT.AK
Height [mm]

70
PKWIU

25.99.29.0

Other technical data

Model

Cover double-sided bevelled
Function

Standard
Height

70 mm
Mounting opening

None
With connection opening

No

With protrusion/offset

No
Width

350 mm
Length

800 mm
Number of mounting openings

0
Material

Steel

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	100 pcs.
Weight (kg)	11,665	11,666	1206,000
Width (m)	0,543	-	-
Length (m)	0,070	-	-
Depth (m)	0,800	-	-
