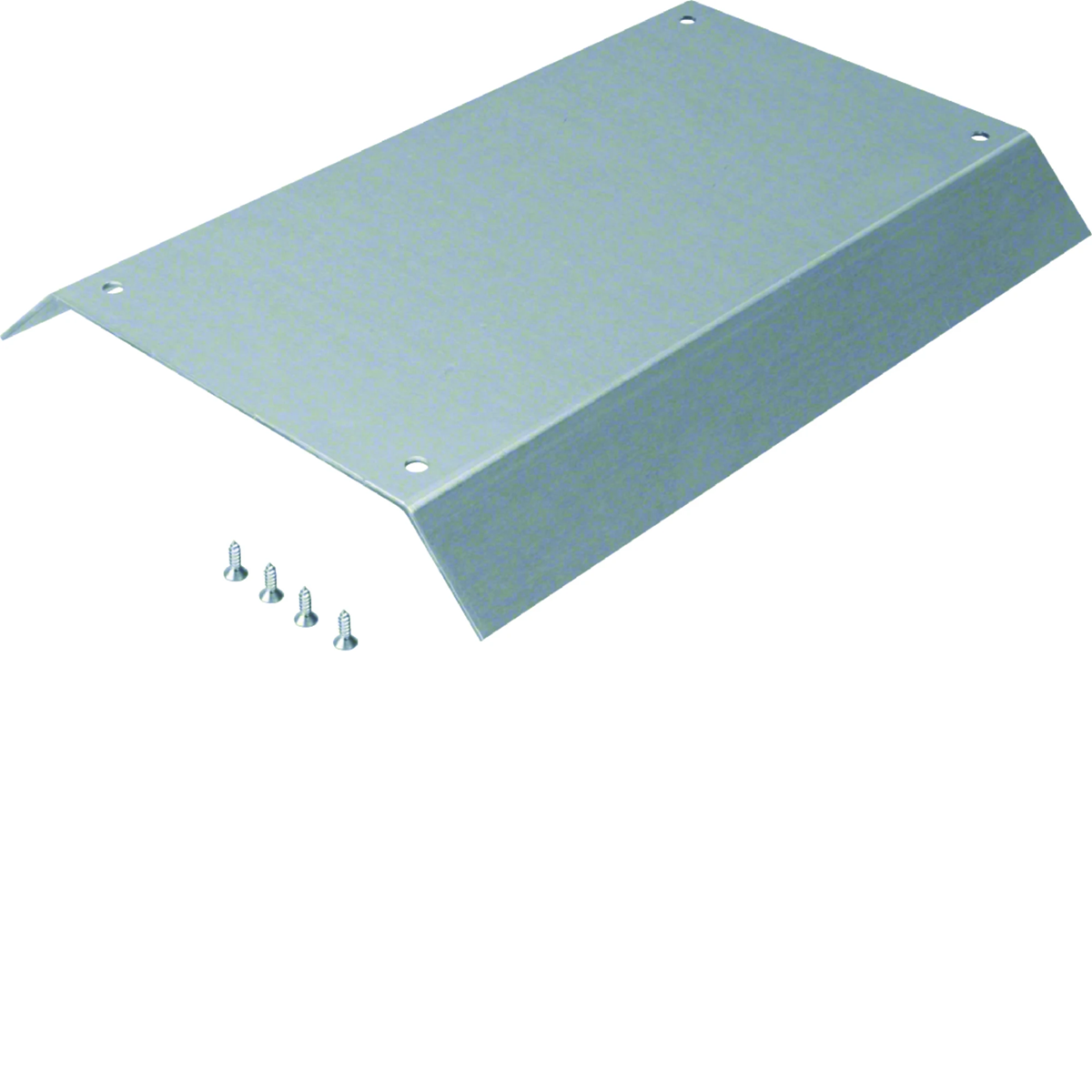

Name: TEHALIT.AK Overfloor trunking cover 2-sided slanted 400mm 200x40mm steel
Brand: TEHALIT
SKU: TKM050TEHA
Price: 26.03 PLN

Floor channel cover double-sided slanted tehalit.AK series.

Series characteristics:

< p> Above-floor ducts (installed on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Halogen free

Yes
Function

Standard
Material

Metal
Width [mm]

200
Accurate color

galvanized

Length [mm]

400
Color

Silver
Family

TEHALIT.AK
Height [mm]

40
PKWIU

25.99.29.0

Other technical data

Model

Cover double-sided bevelled
Function

Standard
Height

40 mm
Mounting opening

None
With connection opening

No

With protrusion/offset

No
Width

200 mm
Length

400 mm
Number of mounting openings

0
Material

Steel

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	100 pcs.
Weight (kg)	3,053	3,053	305,300
Width (m)	0,283	-	-
Length (m)	0,040	-	-
Depth (m)	0,400	-	-
