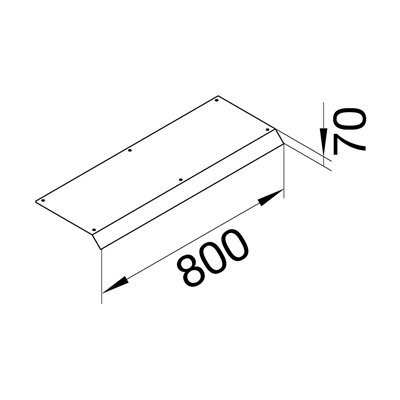

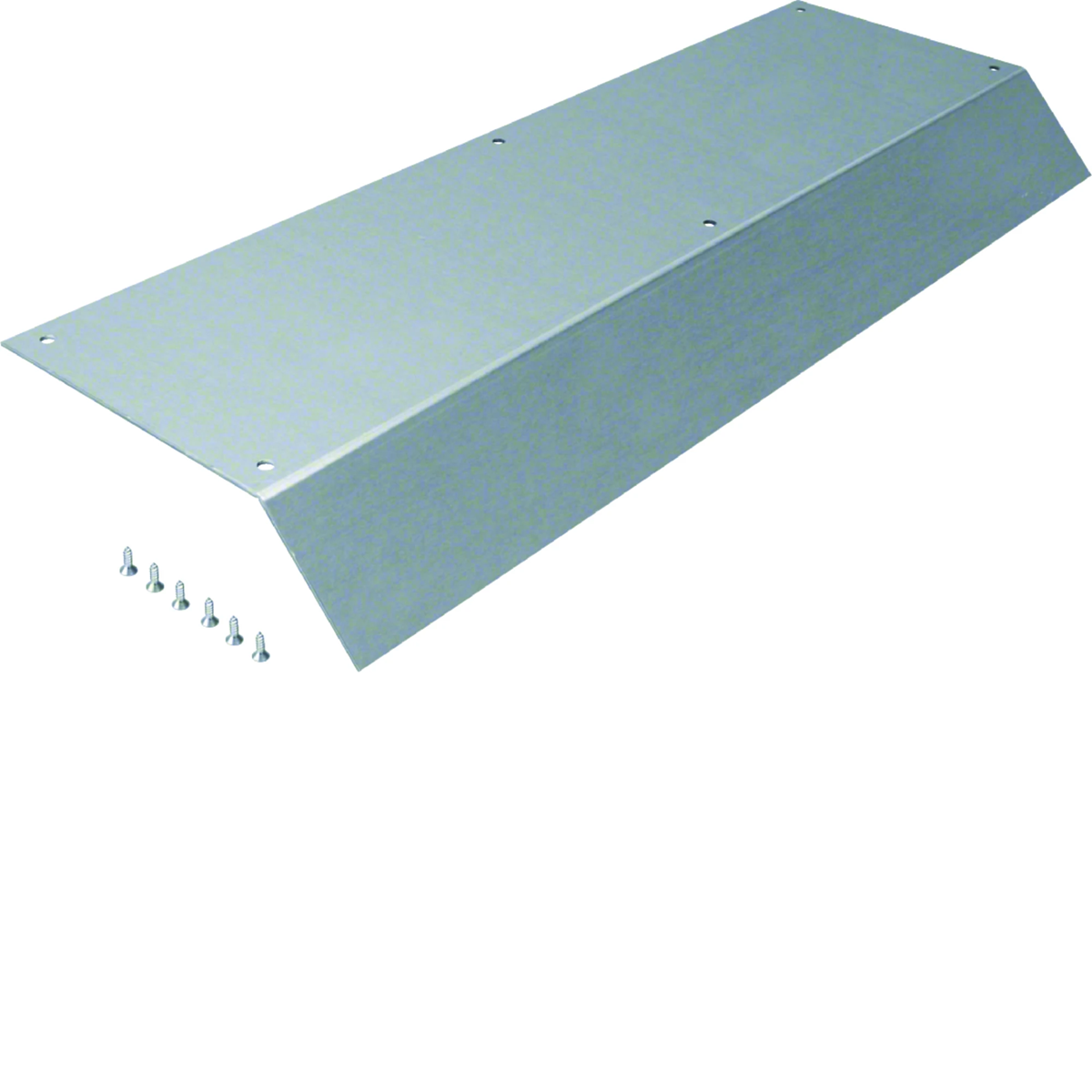

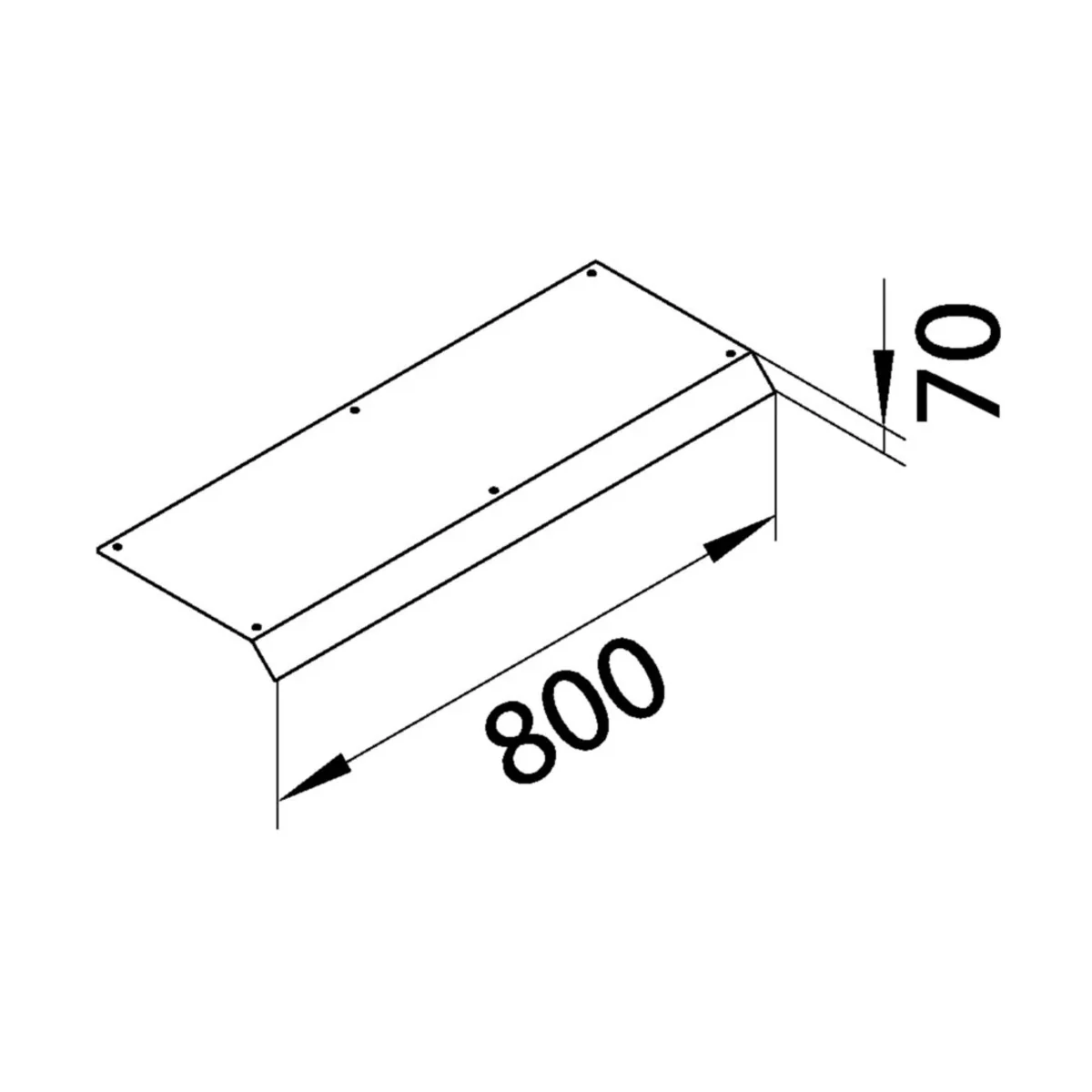

TEHALIT.AK Overfloor trunking cover 1-sided slanted 800mm 200x70mm steel AKB82000701

local index:
TKM071TEHA
Catalog No:
AKB82000701
EAN code:
4012002242568
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 800
Function: Standard
Price:
36,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Overfloor channel cover one-sided slanted tehalit.AK series.

Series characteristics:

< p> Above-floor ducts (installed on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Technical data

  • Halogen free
    Yes
  • Function
    Standard
  • Material
    Metal
  • Width [mm]
    200
  • Accurate color
    galvanized
  • Length [mm]
    800
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    70
  • PKWIU
    25.99.29.0

Other technical data

  • Model
    Cover one-sided bevelled
  • Function
    Standard
  • Height
    70 mm
  • Mounting opening
    None
  • With connection opening
    no
  • With protrusion/offset
    no
  • Width
    200 mm
  • Length
    800 mm
  • Number of mounting openings
    0
  • Material
    Steel

Bulk packaging

A kind of package Pakiet Paleta
Quantity 1 pcs. 50 pcs.
Weight (kg) 5,643 296,150
Width (m) 0,340 0,800
Length (m) 0,100 1,050
Depth (m) 0,800 1,200
