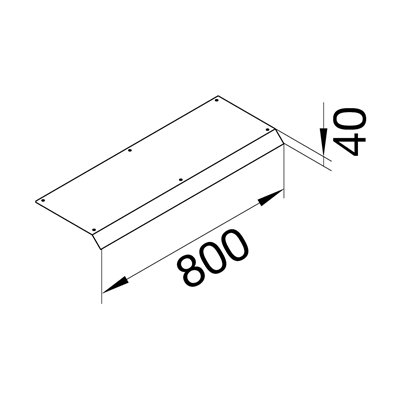

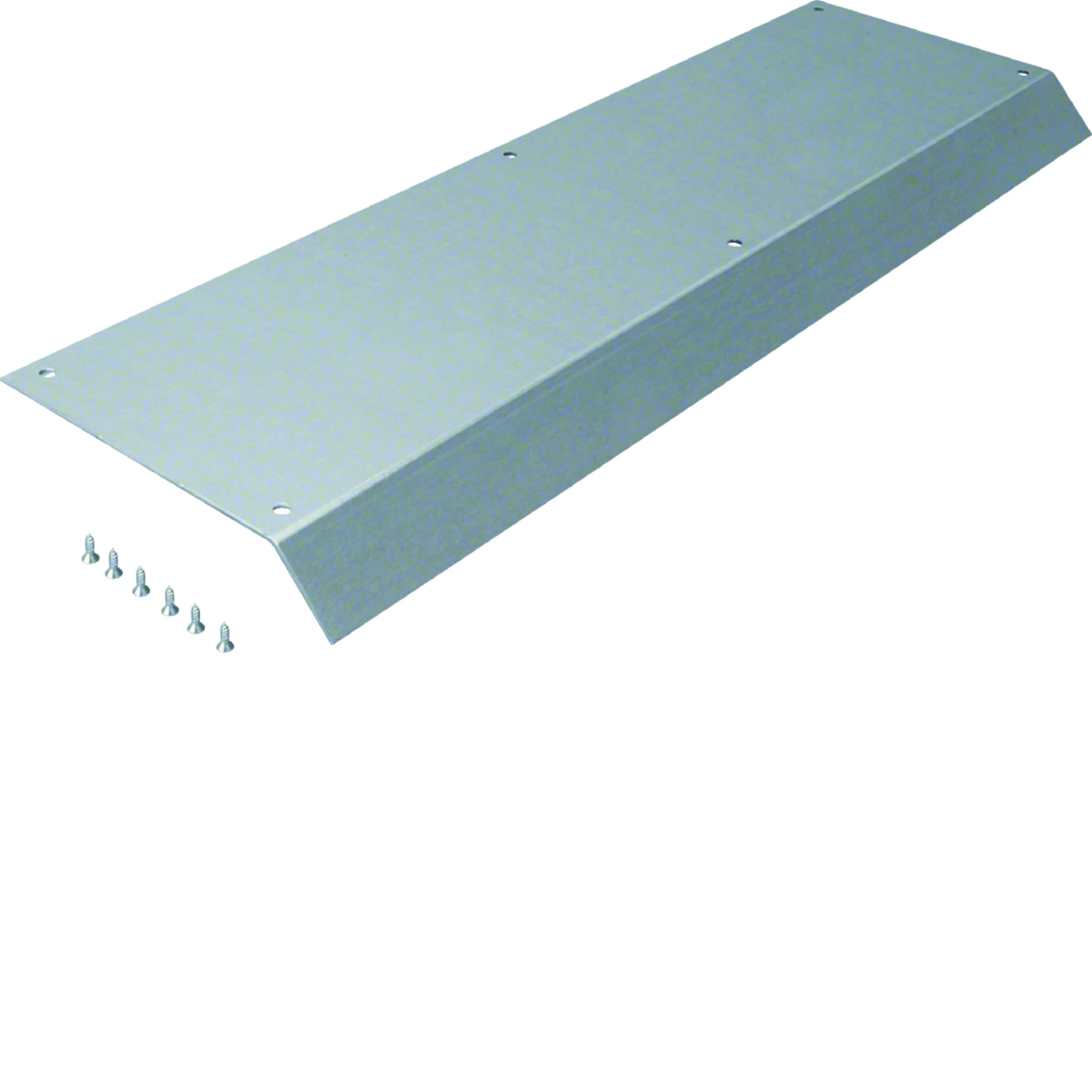

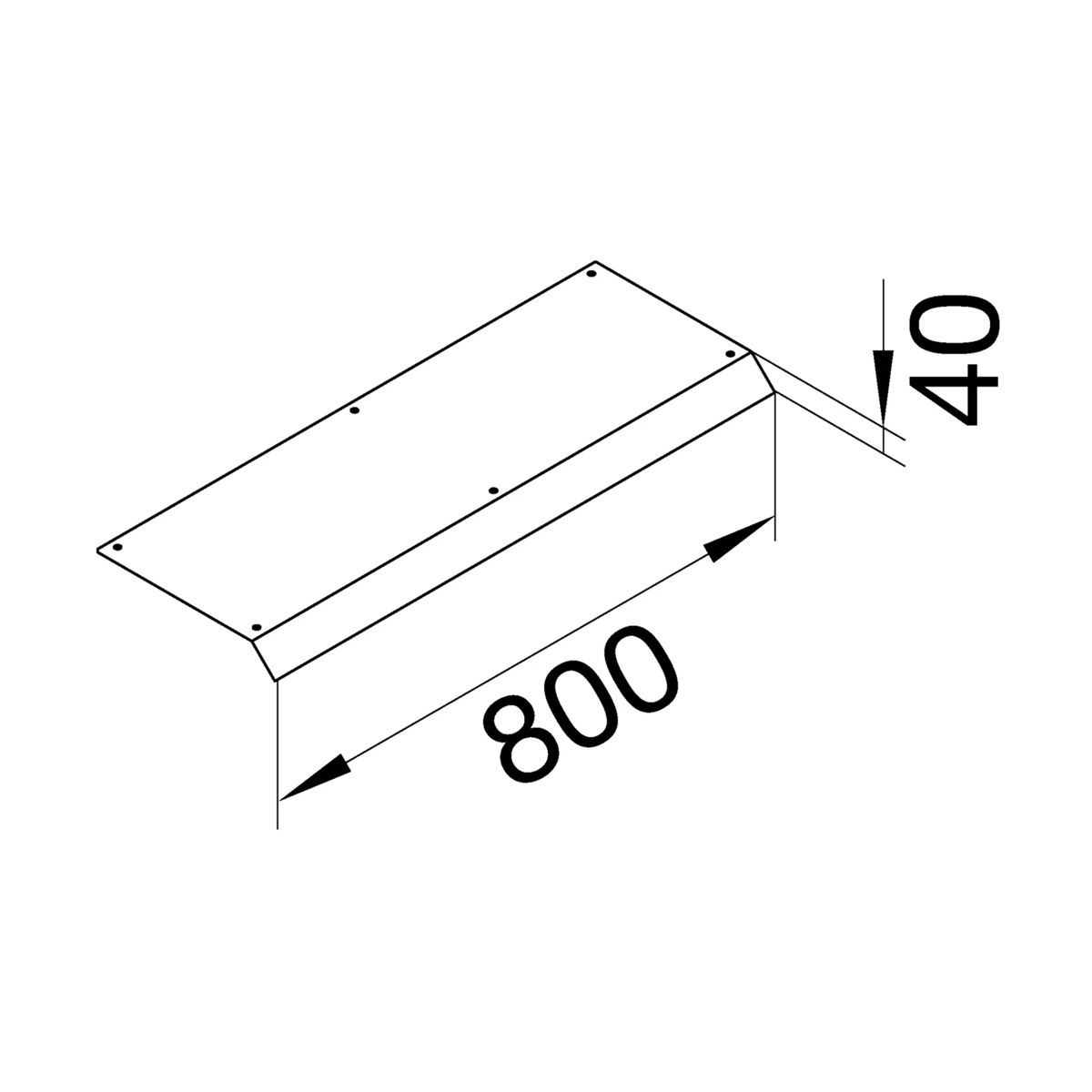

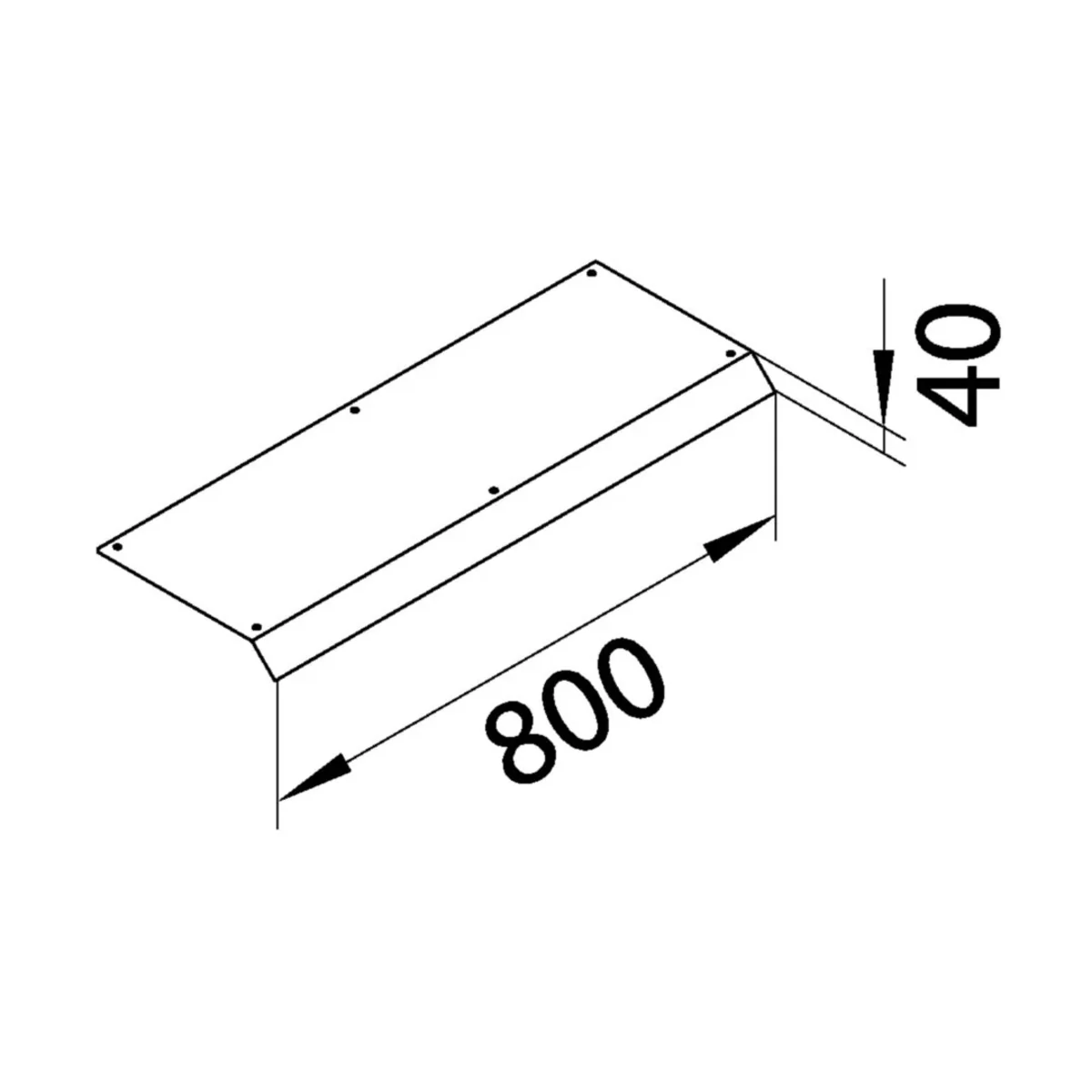

TEHALIT.AK Overfloor trunking cover 1-sided slanted 800mm 200x40mm steel AKB82000401

Indice locale:
TKM069TEHA
Numero di catalogo:
AKB82000401
Codice EAN:
4012002242537
Produttore: TEHALIT
Halogen free: Yes
Length [mm]: 800
Function: Standard
Prezzo:
155,02 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Overfloor channel cover one-sided slanted tehalit.AK series.

Series characteristics:

< p> Above-floor ducts (installed on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Dati tecnici

  • Halogen free
    Yes
  • Function
    Standard
  • Material
    Metal
  • Width [mm]
    200
  • Accurate color
    galvanized
  • Length [mm]
    800
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    40
  • PKWIU
    25.99.29.0

Altri dati tecnici

  • Model
    Cover one-sided bevelled
  • Function
    Standard
  • Height
    40 mm
  • Mounting opening
    None
  • With connection opening
    No
  • With protrusion/offset
    No
  • Width
    200 mm
  • Length
    800 mm
  • Number of mounting openings
    0
  • Material
    Steel

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Paleta
Quantità 1 pezzi 100 pezzi
Peso (kg) 4,800 480,000
Larghezza (m) 0,240 0,800
Lunghezza (m) 0,040 0,800
Profondità (m) 0,800 1,200
