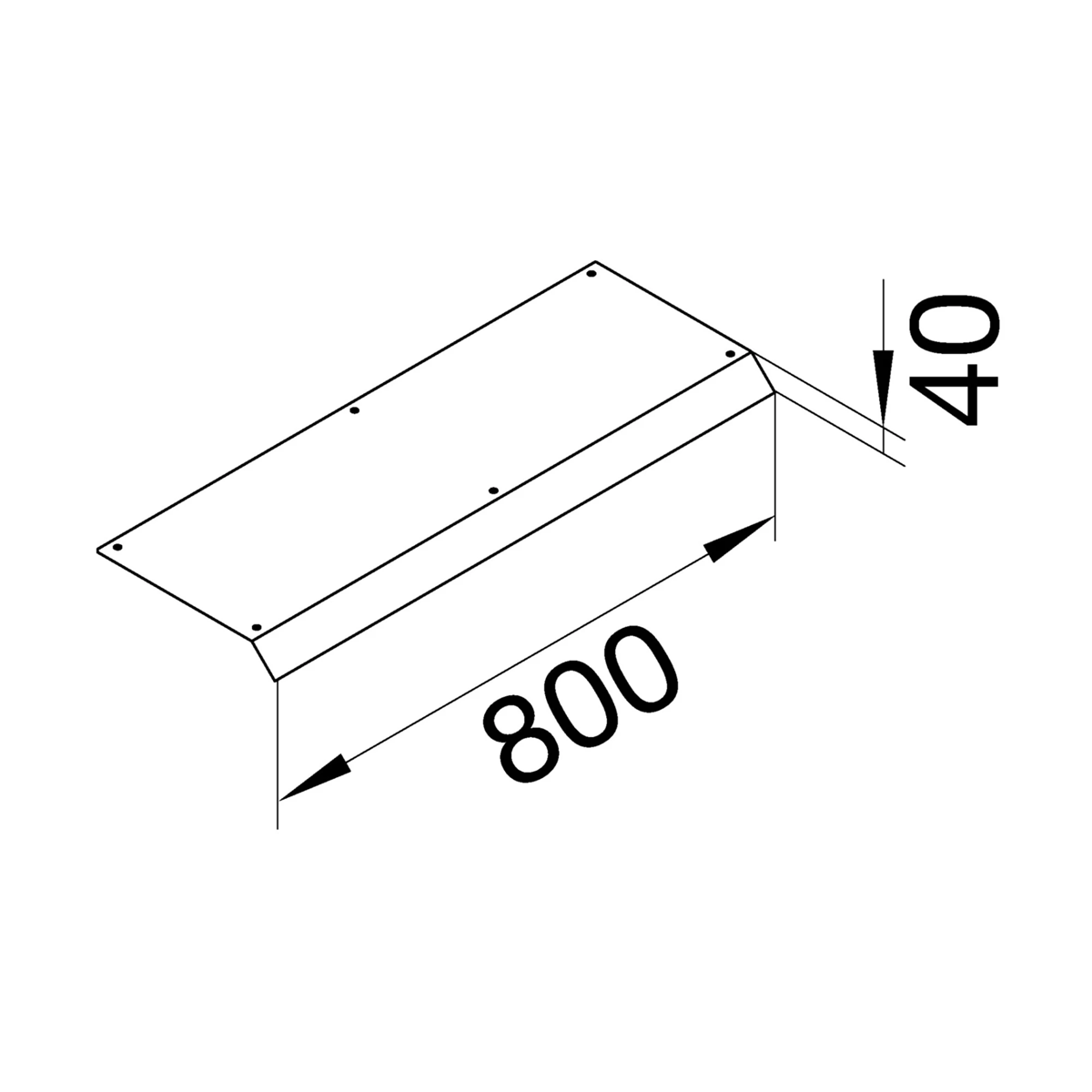

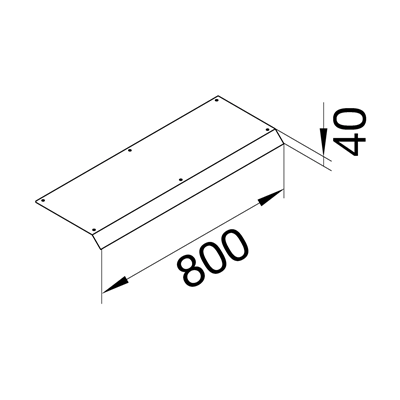

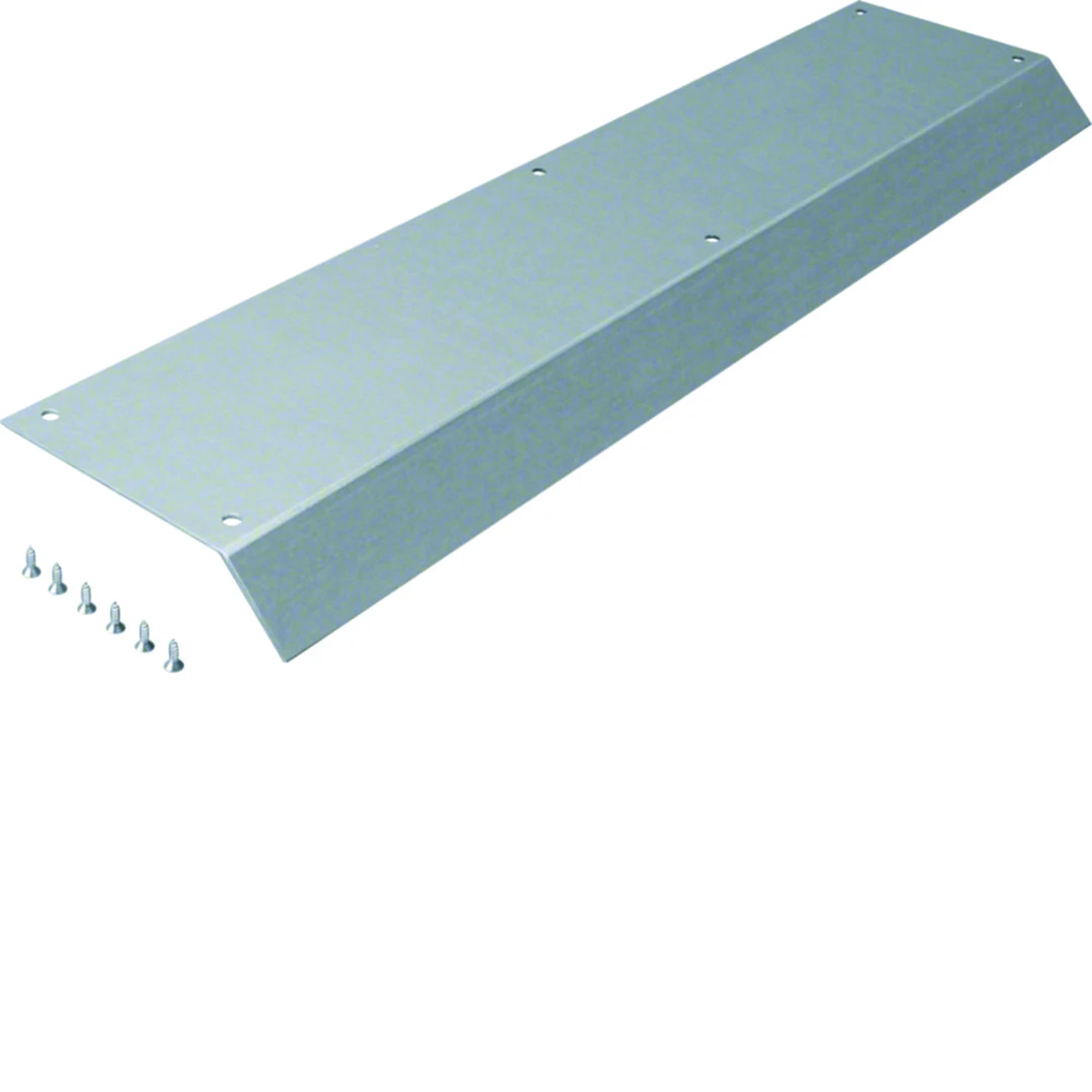

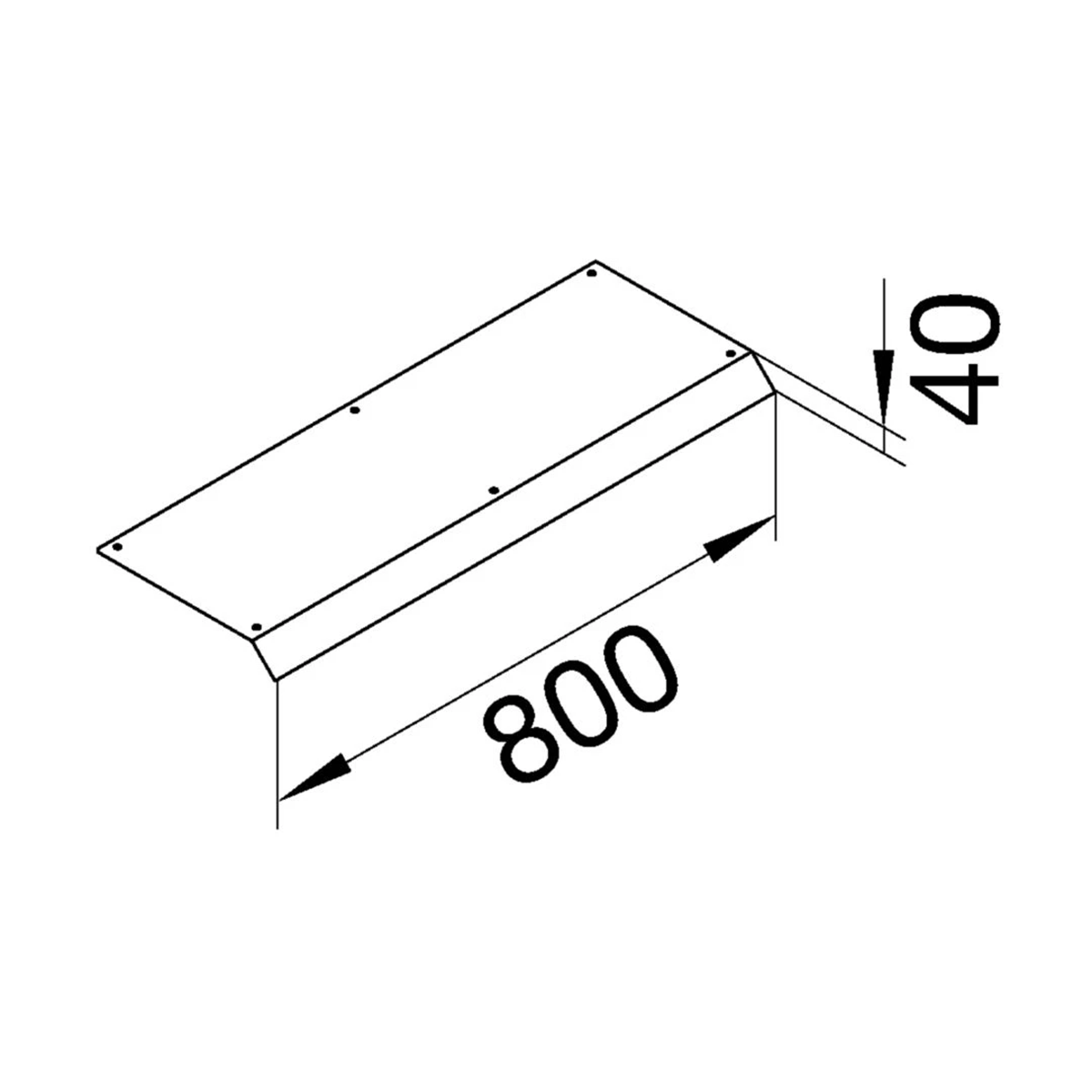

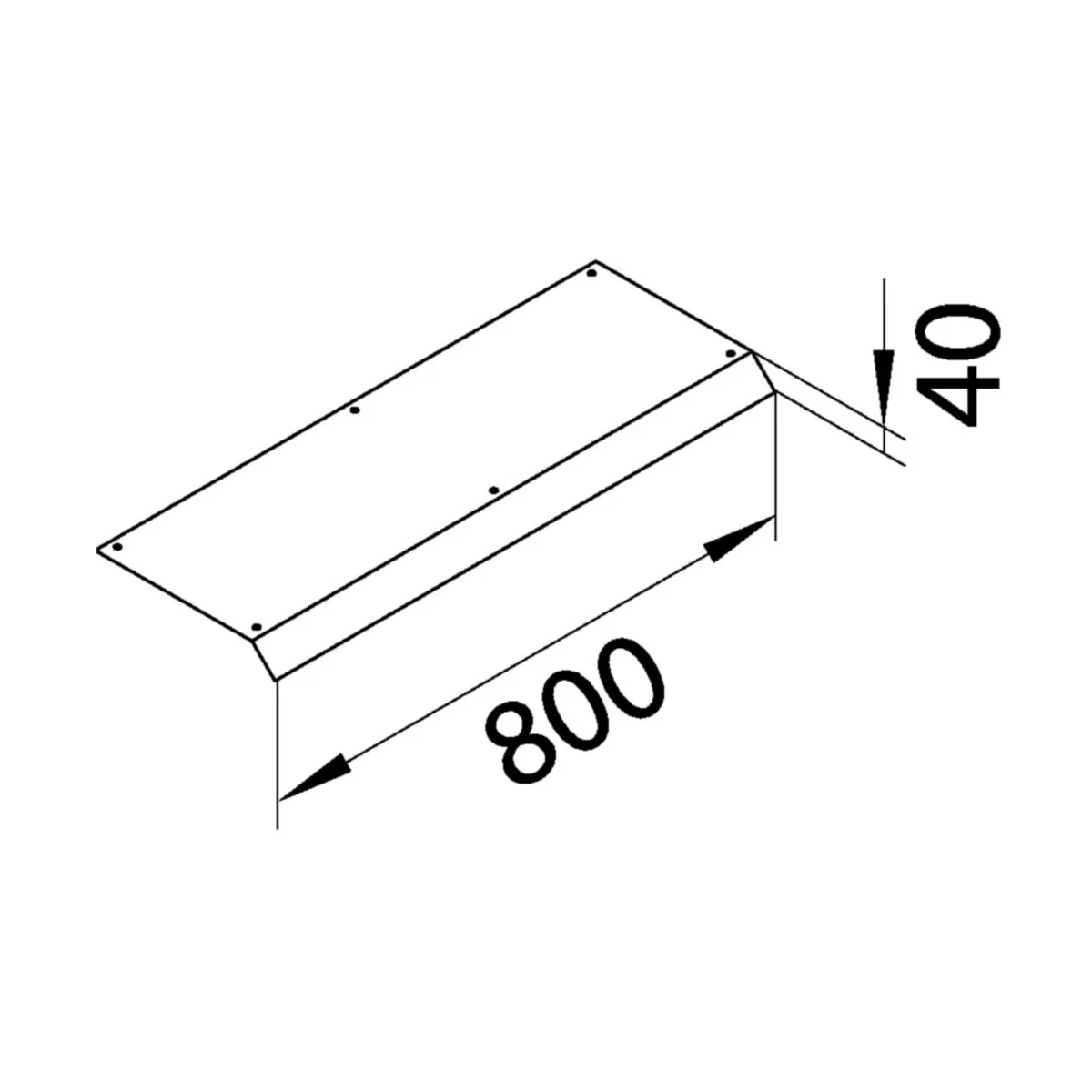

Name: TEHALIT.AK Overfloor trunking cover 1-sided slanted 800mm 150x40mm steel
Brand: TEHALIT
SKU: TKM065TEHA
Price: 30.34 PLN

Overfloor channel cover one-sided slanted tehalit.AK series.

Series characteristics:

< p> Above-floor ducts (installed on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Halogen free

Yes
Function

Standard
Material

Metal
Width [mm]

150
Accurate color

galvanized

Length [mm]

800
Color

Silver
Family

TEHALIT.AK
Height [mm]

40
PKWIU

25.99.29.0

Other technical data

Model

Cover one-sided bevelled
Function

Standard
Height

40 mm
Mounting opening

None
With connection opening

No

With protrusion/offset

No
Width

150 mm
Length

800 mm
Number of mounting openings

0
Material

Steel

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	1200 pcs.
Weight (kg)	3,800	3,824	4588,800
Width (m)	0,192	-	-
Length (m)	0,040	-	-
Depth (m)	0,800	-	-
