TEHALIT.AK Overfloor trunking cover 1-side slanted 800mm internal angle 400x70mm steel AKBI4000701

local index:
TKM114TEHA
Catalog No:
AKBI4000701
EAN code:
4012002243350
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 800
Function: Inside angle
Price:
304,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

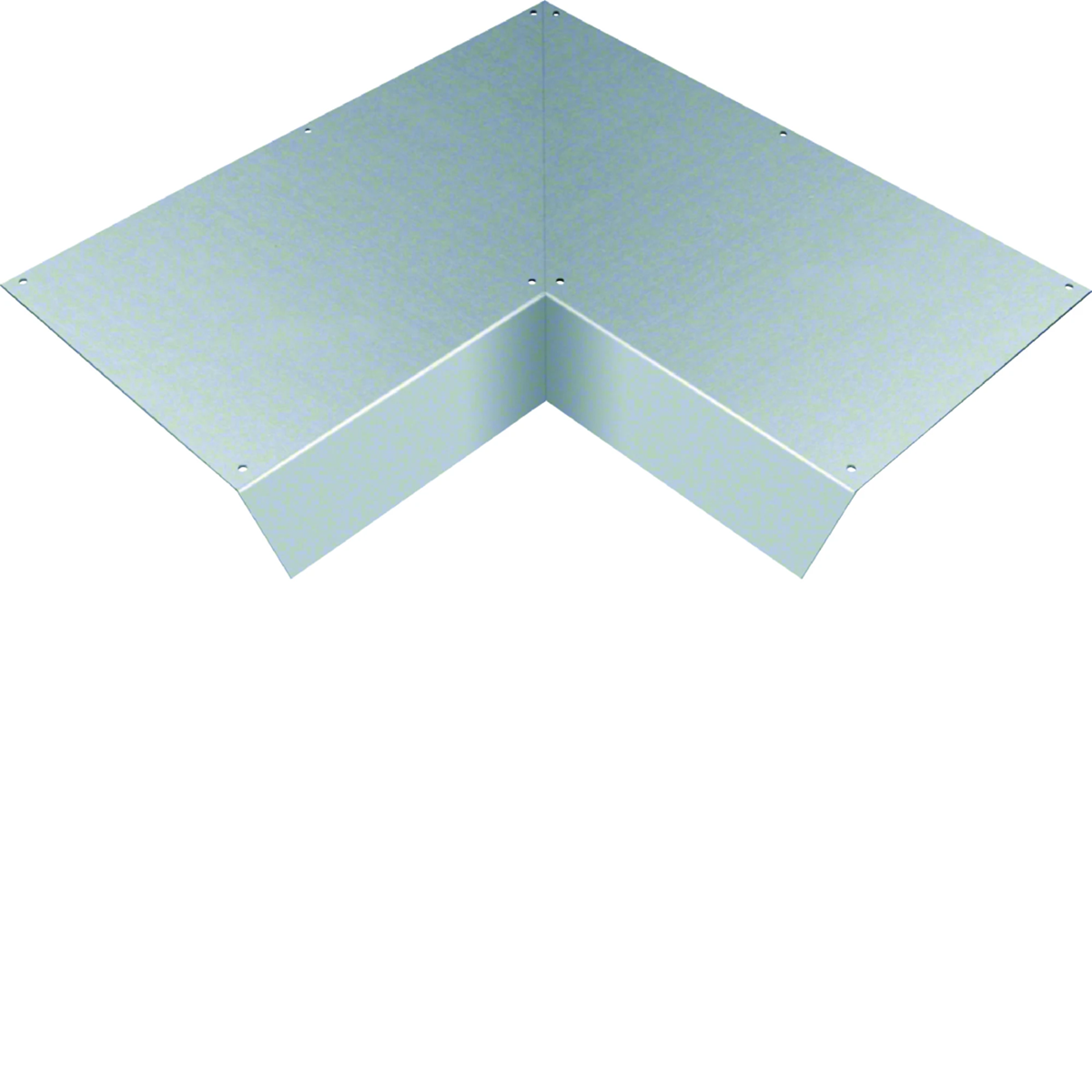

Overfloor trunking cover single-sided slanted, internal angle, tehalit.AK series.

Series characteristics:< /p>

Above-floor ducts (installed on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

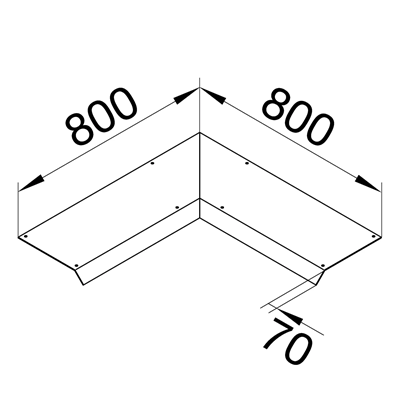

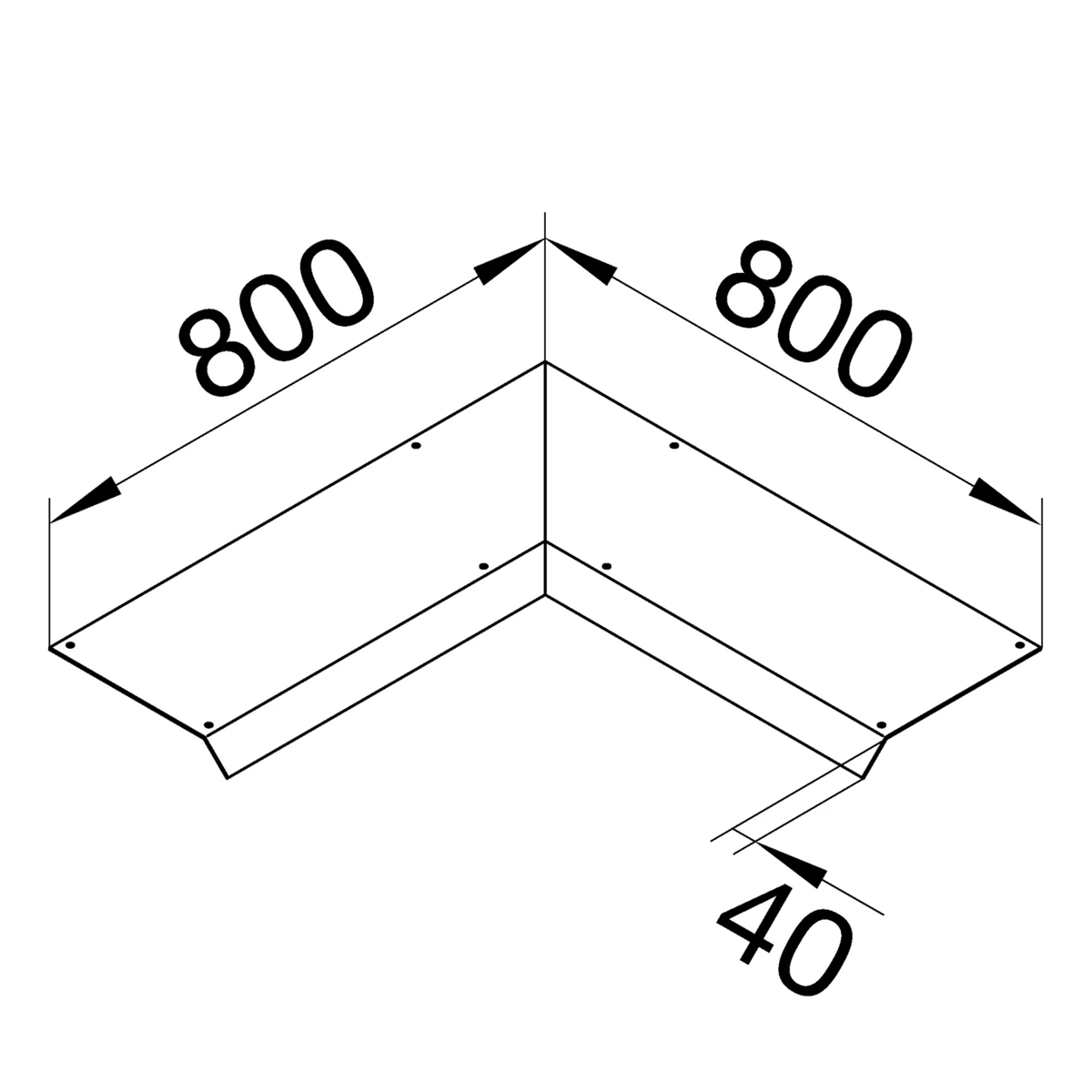

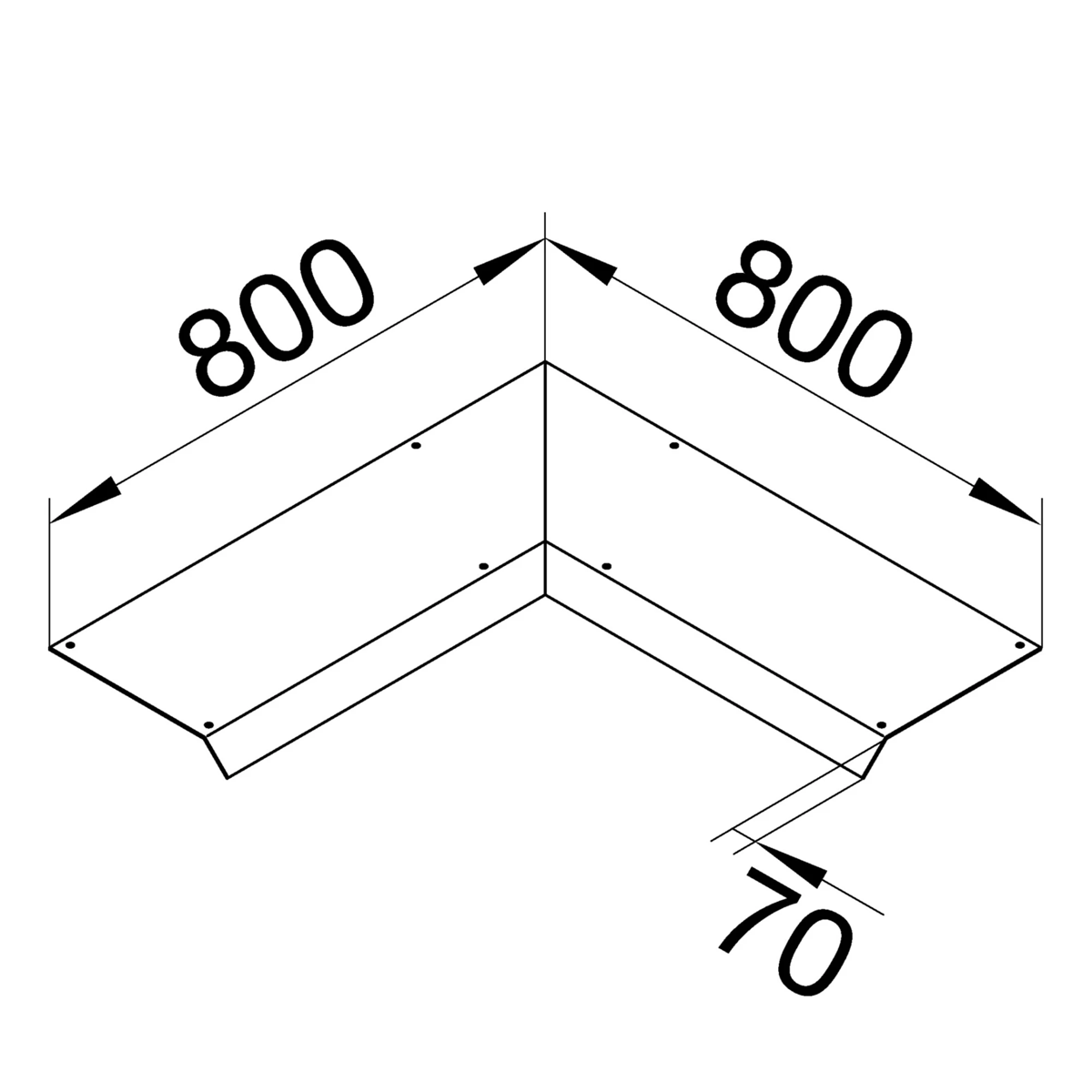

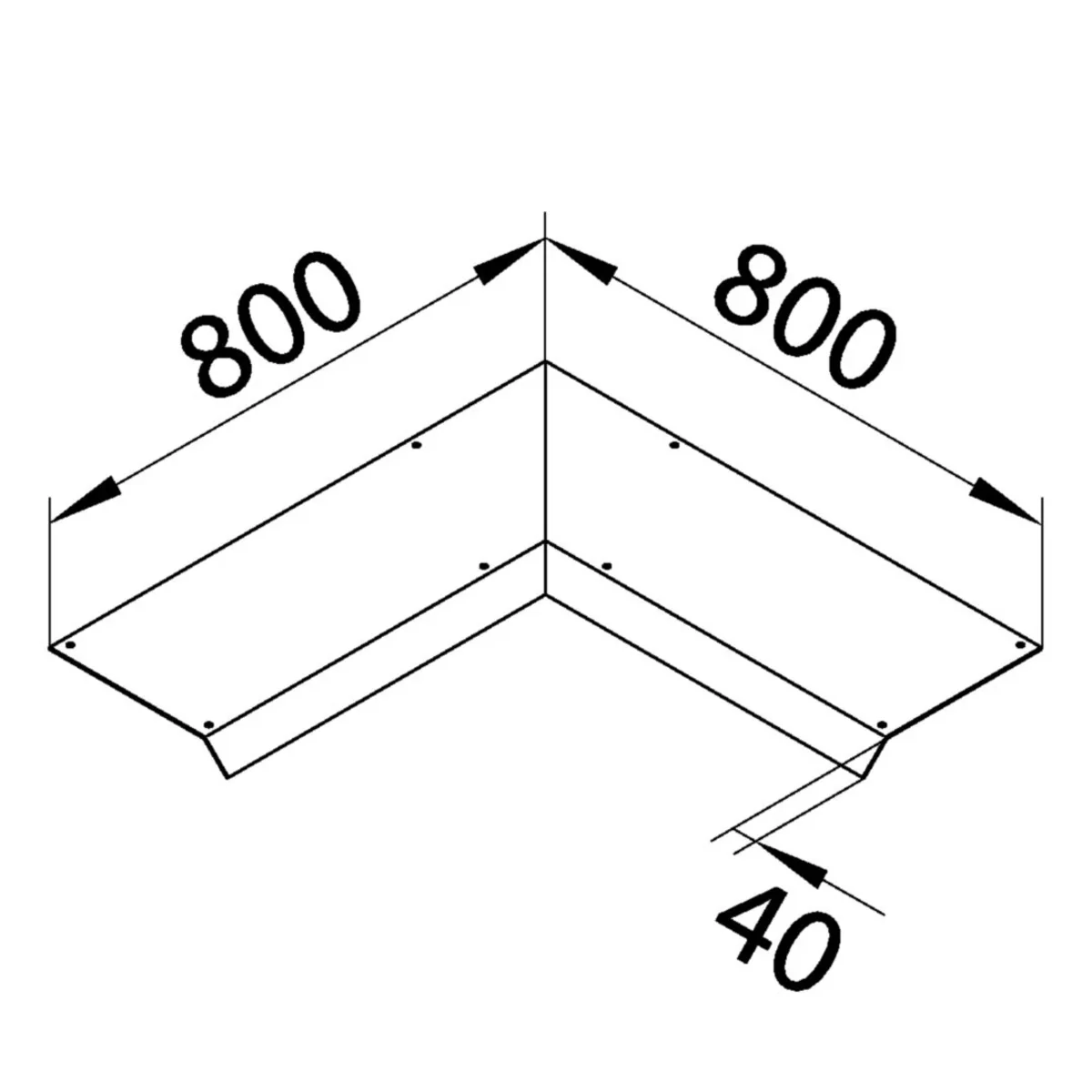

Technical data

  • Halogen free
    Yes
  • Function
    Inside angle
  • Material
    Metal
  • Width [mm]
    400
  • Accurate color
    galvanized
  • Length [mm]
    800
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    70
  • PKWIU
    25.99.29.0

Other technical data

  • Model
    Cover one-sided bevelled
  • Function
    Inner corner
  • Height
    70 mm
  • Mounting opening
    None
  • With connection opening
    No
  • With protrusion/offset
    No
  • Width
    400 mm
  • Length
    800 mm
  • Number of mounting openings
    0
  • Material
    Steel

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 100 pcs.
Weight (kg) 16,216 16,217 1661,700
Width (m) 0,472 - -
Length (m) 0,070 - -
Depth (m) 0,800 - -
