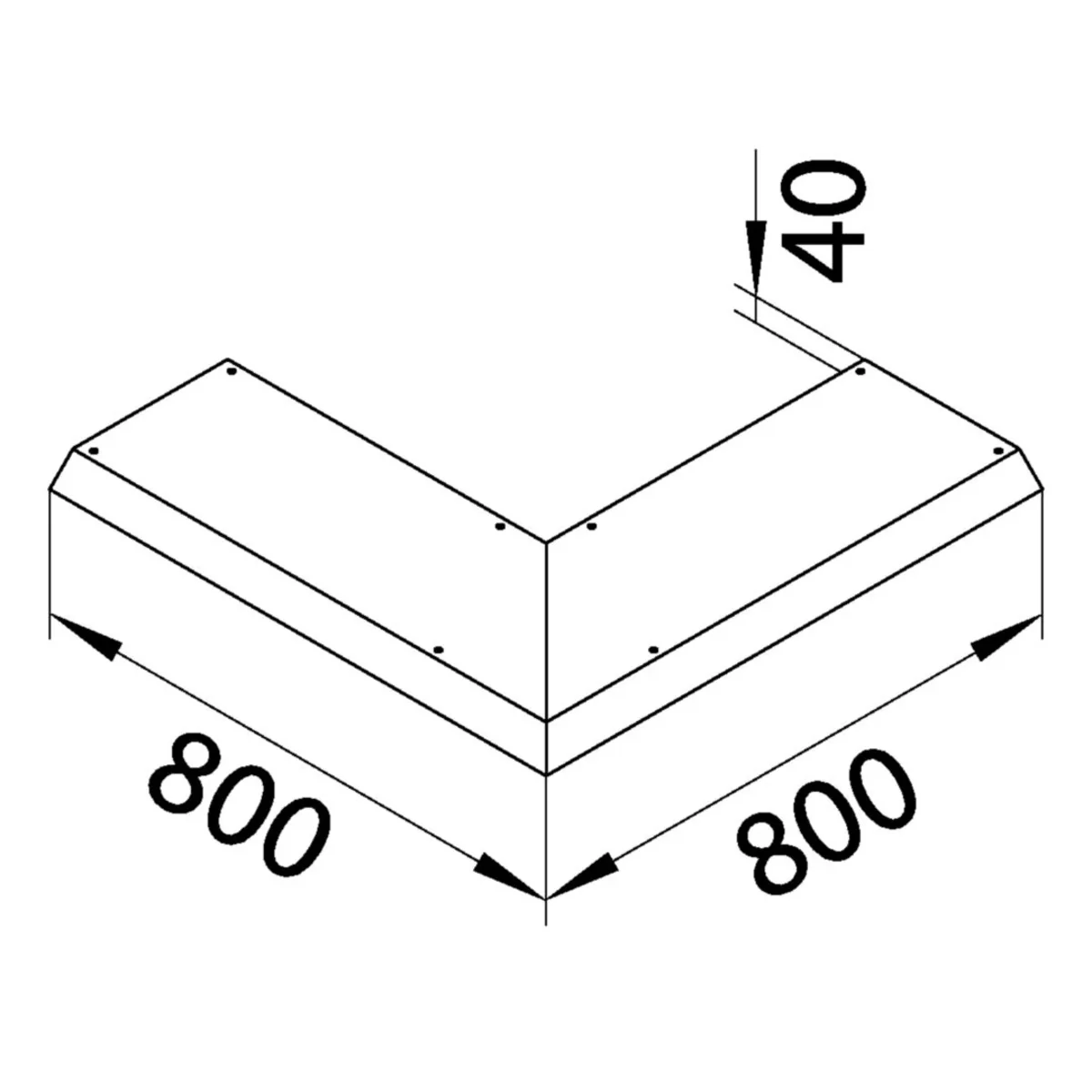

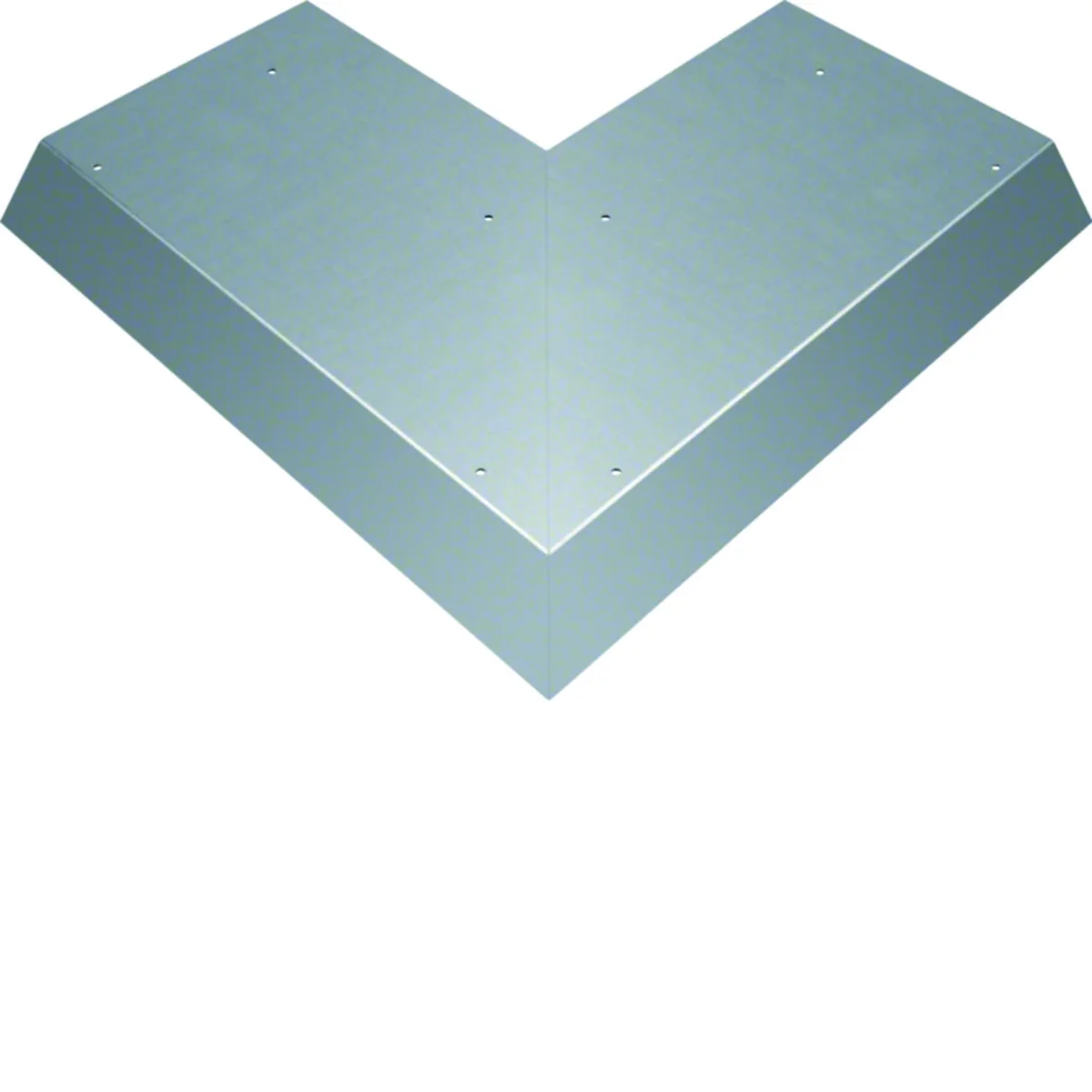

TEHALIT.AK Overfloor trunking cover 1-side slanted 800mm external angle widening 100mm 250x70mm steel AKBA2500701V

local index:
TKM037TEHA
Catalog No:
AKBA2500701V
EAN code:
4012002242889
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 800
Function: External angle
Price:
246,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Overfloor trunking cover one side slanted, external angle, 100mm extension, tehalit.AK series.

Series characteristics:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Technical data

  • Halogen free
    Yes
  • Function
    External angle
  • Material
    Metal
  • Width [mm]
    250
  • Accurate color
    galvanized
  • Length [mm]
    800
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    70
  • PKWIU
    25.99.29.0

Other technical data

  • Model
    Cover one-sided bevelled
  • Function
    Outer corner
  • Height
    70 mm
  • Mounting opening
    None
  • With connection opening
    No
  • With protrusion/offset
    Yes
  • Width
    250 mm
  • Length
    800 mm
  • Number of mounting openings
    0
  • Material
    Steel

Manufacturer details

Bulk packaging

A kind of package Paleta
Quantity 1 pcs. 1 pcs.
Weight (kg) 14,857 14,857
Width (m) 0,420 -
Length (m) 0,070 -
Depth (m) 0,800 -
