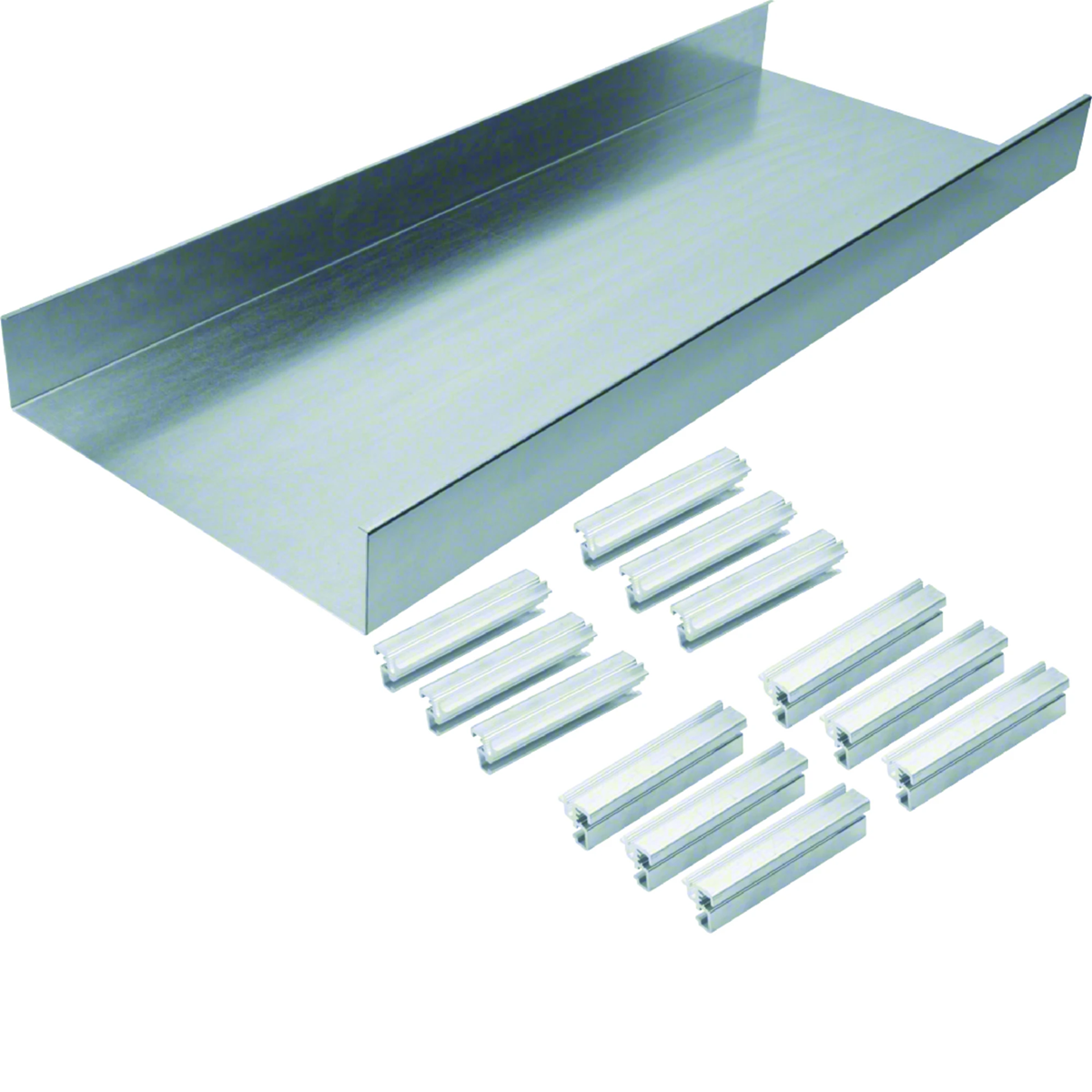

Name: TEHALIT.AK Base for overfloor trunking for double-sided slanted cover 300x70mm steel
Brand: TEHALIT
SKU: TKM411TEHA
Price: 124.96 PLN

The base of the above-floor trunking for double-sided slanted cover, from the tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Halogen free

Yes
Color

Silver
Family

TEHALIT.AK
Height [mm]

70
Accurate color

galvanized
PKWIU

25.99.29.0

Length [mm]

2400
Material

steel
Width [mm]

300
Surface finish

Galvanized
Usable cross-section [mm²]

21000

Other technical data

Suitable for

Cover double-sided bevelled
Max. number of compartments

1
Material

Steel
Width

300 mm
Length

2400 mm

With partition panel

No
Partition fixing

Screwing
Surface protection

Galvanized
Height

70 mm

A kind of package		Karton	Paleta
Quantity	1 pcs.	10 pcs.	10 pcs.
Weight (kg)	3,700	8,880	128,800
Width (m)	0,300	-	0,800
Length (m)	0,070	-	1,000
Depth (m)	1,000	-	2,500
