TEHALIT.AK Base for overfloor trunking for double-sided slanted cover 250x40mm steel AKU2500402

local index:
TKM405TEHA
Catalog No:
AKU2500402
EAN code:
4012002239445
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 2400
Color: Silver
Price:
112,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

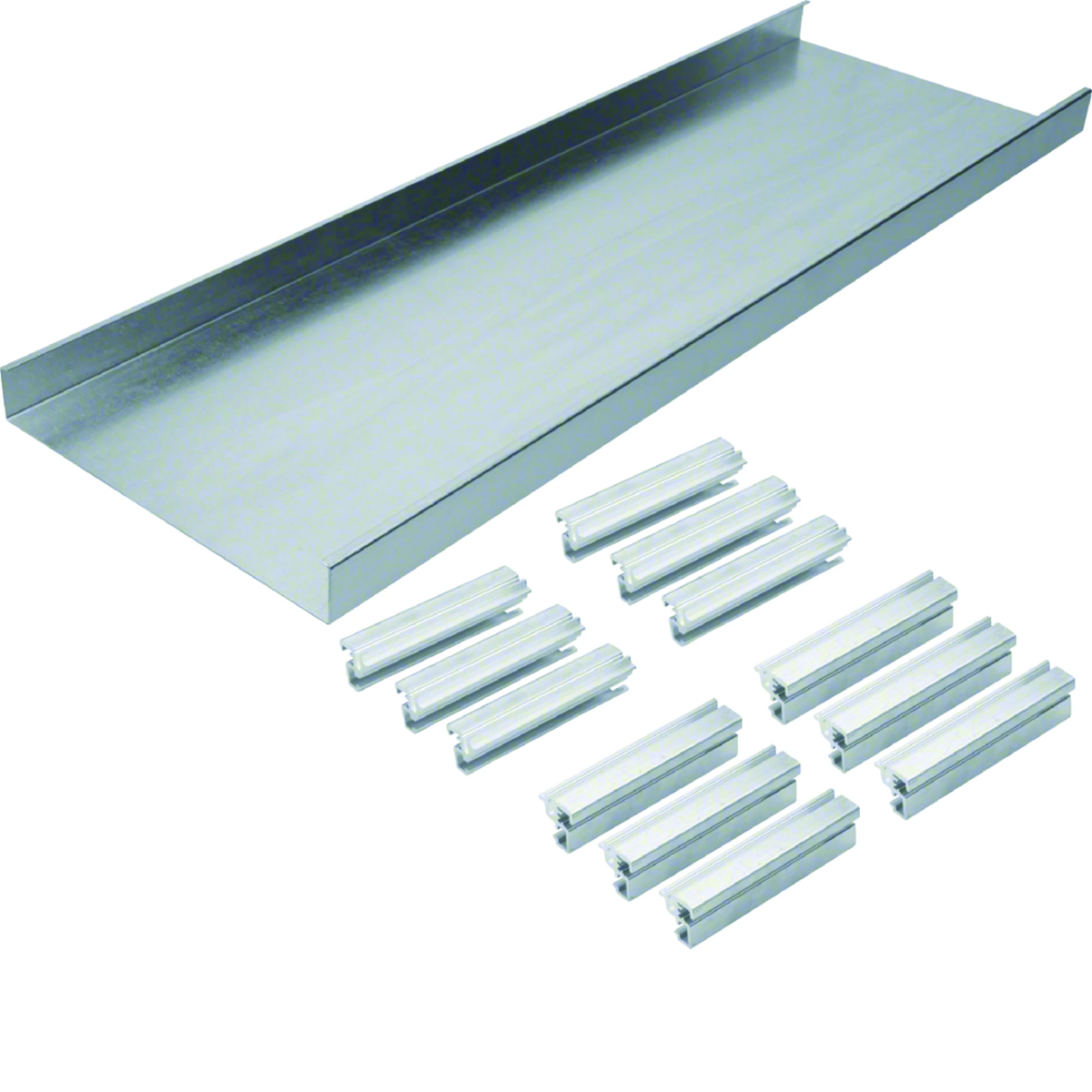

Product description

The base of the above-floor trunking for double-sided slanted cover, from the tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    40
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0
  • Length [mm]
    2400
  • Material
    steel
  • Width [mm]
    250
  • Surface finish
    Galvanized
  • Usable cross-section [mm²]
    10000

Other technical data

  • Suitable for
    Cover double-sided bevelled
  • Max. number of compartments
    1
  • Material
    Steel
  • Width
    250 mm
  • Length
    2400 mm
  • With partition panel
    No
  • Partition fixing
    Screwing
  • Surface protection
    Galvanized
  • Height
    40 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 15 pcs.
Weight (kg) 1,418 34,044 102,132
Width (m) 0,250 0,250 0,800
Length (m) 0,040 0,035 0,800
Depth (m) 1,000 2,410 2,450
