TEHALIT.AK Base for overfloor trunking for double-sided slanted cover 150x40mm steel AKU1500402

Index local:
TKM397TEHA
Numéro de catalogue:
AKU1500402
Code EAN:
4012002239360
Producteur: TEHALIT
Halogen free: Yes
Length [mm]: 2400
Color: Silver
Produit de grande taille
Prix:
438,50 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

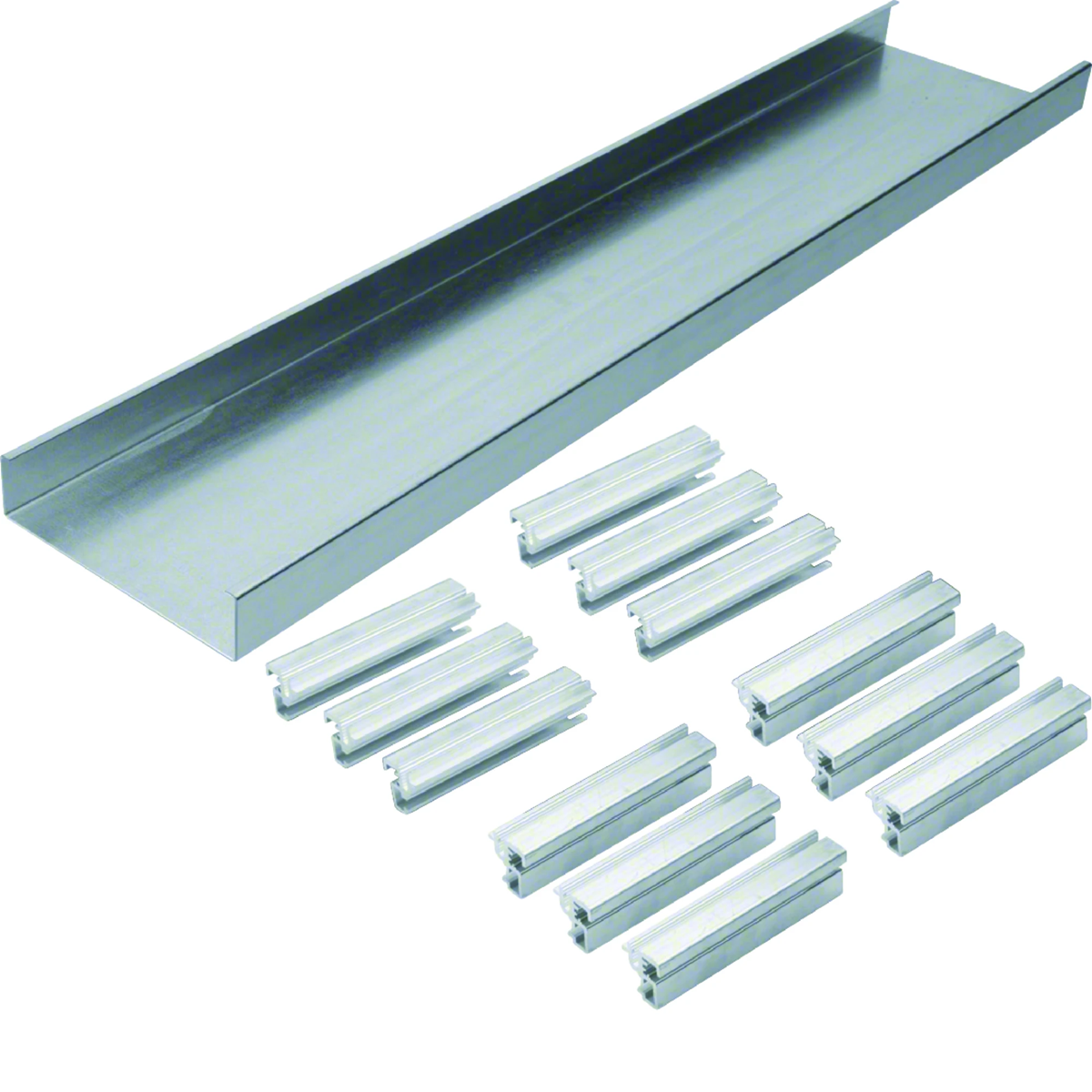

The base of the above-floor trunking for double-sided slanted cover, from the tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Données techniques

  • Halogen free
    Yes
  • Color
    Silver
  • Family
    TEHALIT.AK
  • Height [mm]
    40
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0
  • Length [mm]
    2400
  • Material
    steel
  • Width [mm]
    150
  • Surface finish
    Galvanized
  • Usable cross-section [mm²]
    6000

Autres données techniques

  • Suitable for
    Cover double-sided bevelled
  • Max. number of compartments
    1
  • Material
    Steel
  • Width
    150 mm
  • Length
    2400 mm
  • With partition panel
    No
  • Partition fixing
    Screwing
  • Surface protection
    Galvanized
  • Height
    40 mm

Détails du fabricant

Emballage en vrac

Une sorte de paquet Paleta Paleta
Quantité 500 pcs. 500 pcs.
poids (kg) 2462,500 2462,500
Largeur (m) 0,800 0,800
Longueur (m) 1,000 1,000
Profondeur (m) 2,500 2,500
