Name: TEHALIT.AK Base for overfloor trunking for 1-sided slanted cover 200x70mm steel
Brand: TEHALIT
SKU: TKM402TEHA
Price: 112.30 PLN

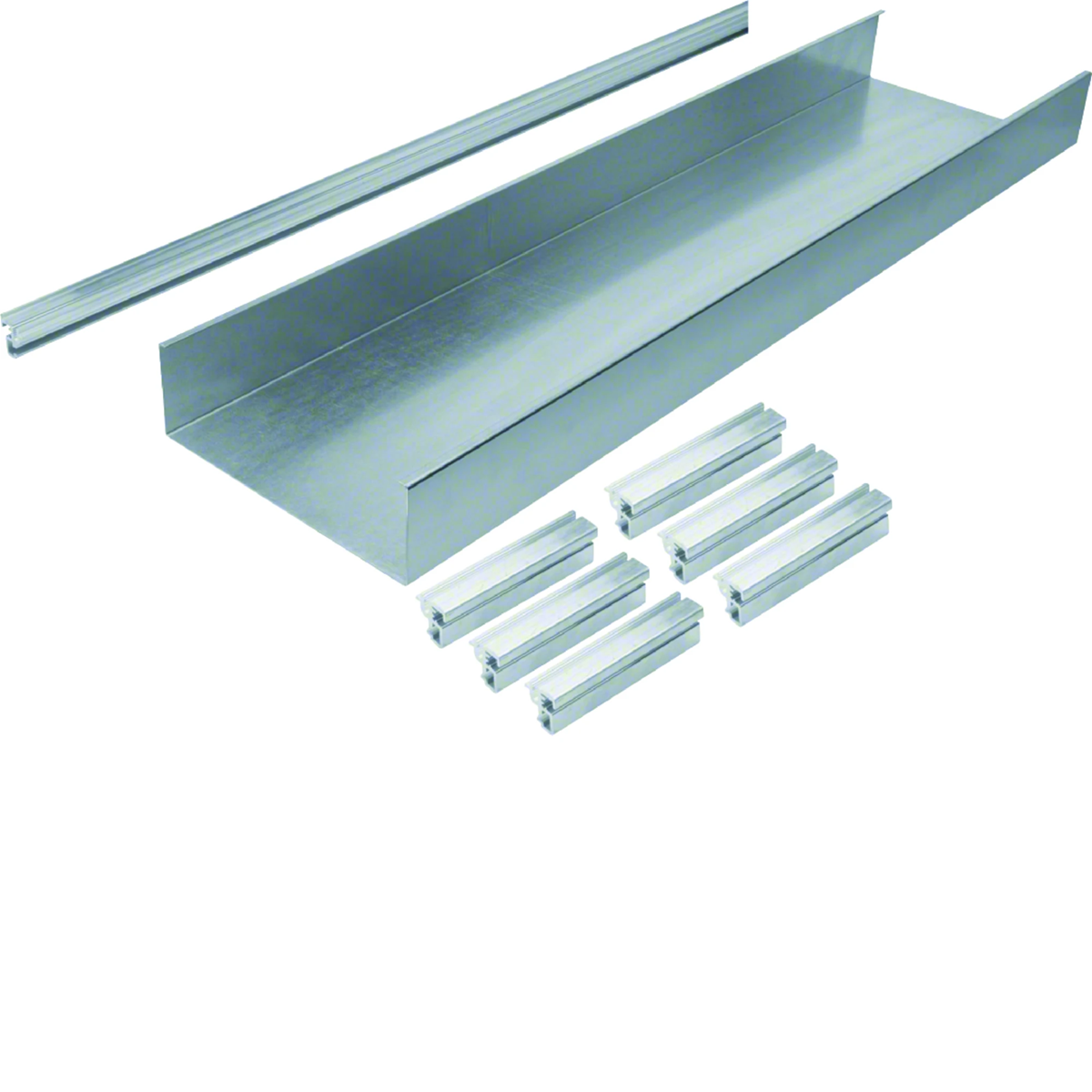

The base of the above-floor trunking for the unilaterally slanted cover, from the tehalit.AK series.

Characteristics of the series:

Above-floor ducts (mounted on the existing floor) are an ideal solution when renovating, modernizing or extending the electrical installation in existing buildings where it is not possible to run the installation in the screed layer. Thanks to prefabricated parts, assembly is easy, and subsequent changes to the installations are carried out without any problems. In addition, covers with a mounting hole allow for the use of various solutions and the installation of additional devices, e.g. hinged covers, columns, etc.

Halogen free

Yes
Color

Silver
Family

TEHALIT.AK

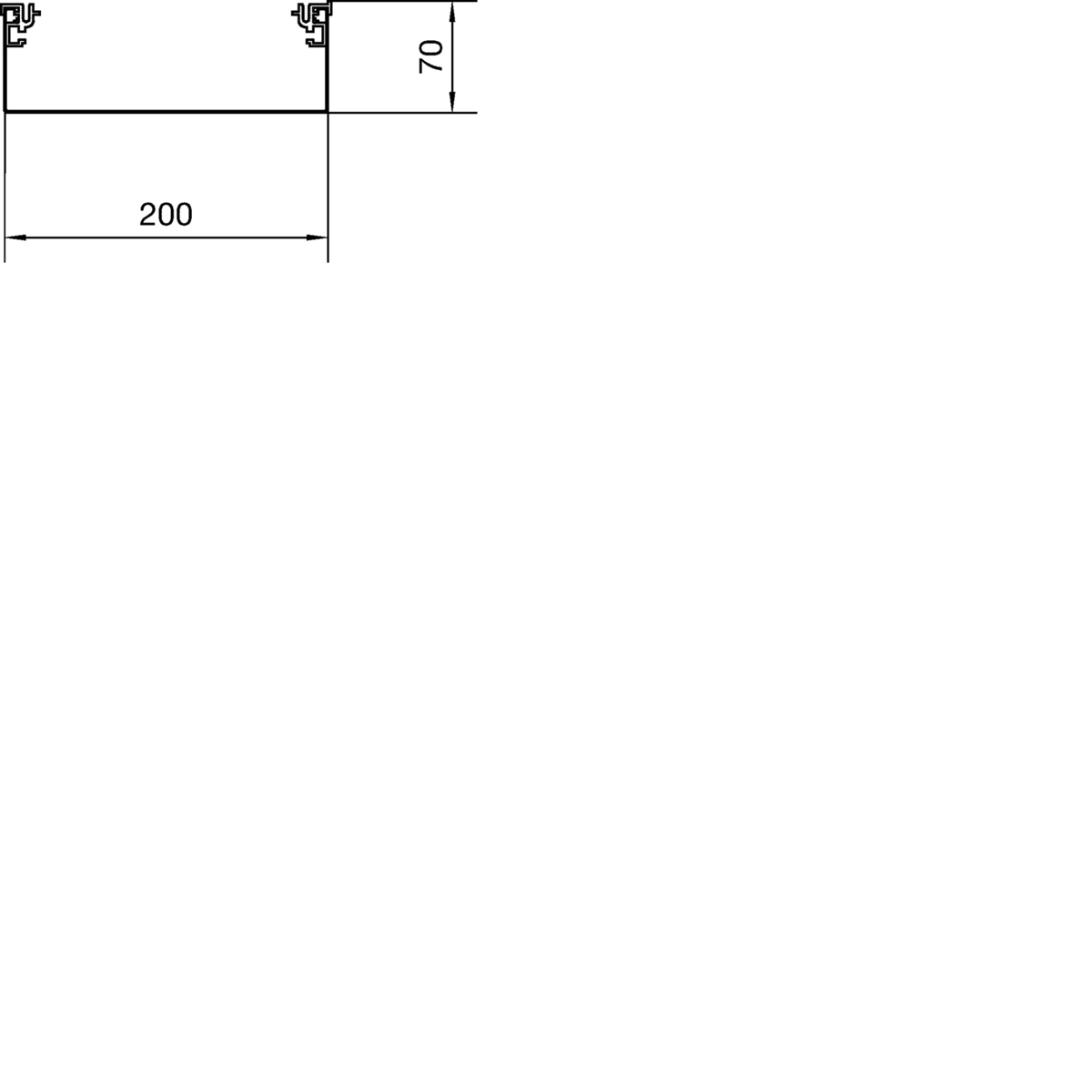

Height [mm]

70
Accurate color

galvanized
PKWIU

25.99.29.0

Length [mm]

2400
Material

steel
Width [mm]

200
Surface finish

Galvanized
Usable cross-section [mm²]

14000

Other technical data

Suitable for

Cover one-sided bevelled
Max. number of compartments

1
Material

Steel
Width

200 mm
Length

2400 mm

With partition panel

No
Partition fixing

Screwing
Surface protection

Galvanized
Height

70 mm

A kind of package		Karton	Paleta
Quantity	1 pcs.	10 pcs.	40 pcs.
Weight (kg)	3,360	8,064	322,560
Width (m)	0,200	-	0,800
Length (m)	0,070	-	1,000
Depth (m)	1,000	-	2,500
