Screw-in pins for KWM-100 insulation installation 22.198

local index:
TAL001ELOP
Catalog No:
22.198
EAN code:
5905548288628
Color: White
Pieces in the package: 4
Accurate color: White
Price:
1,56 €
gross / pkg.
(including VAT 23%)
0,39 € gross/pcs.
Delivery in 3h
Accessible 86 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

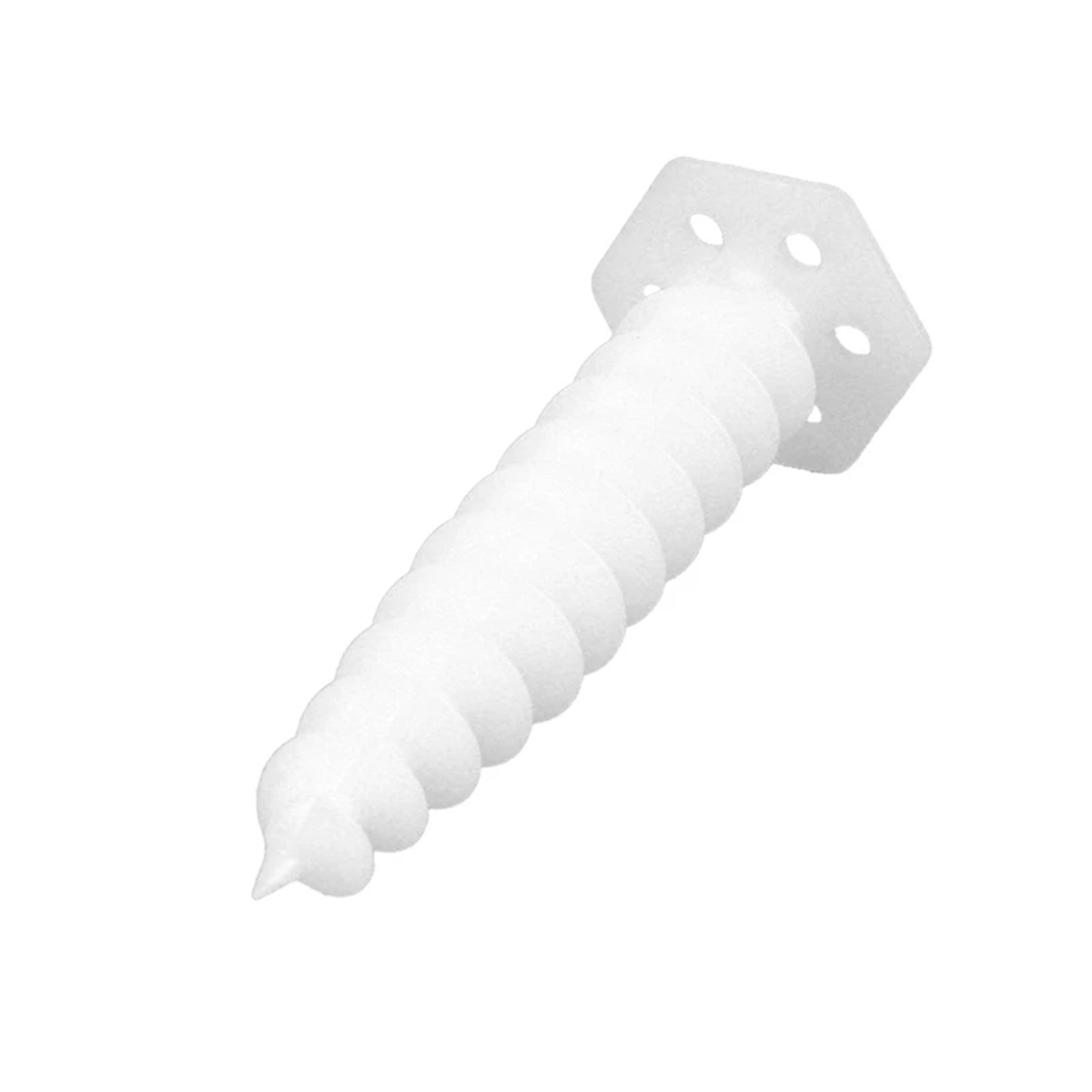

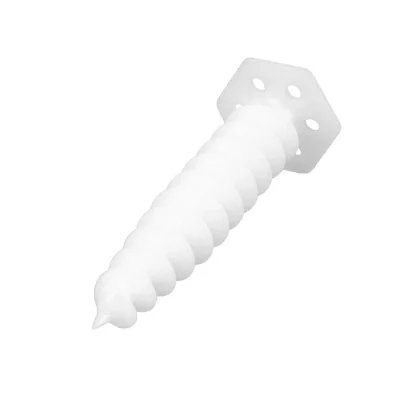

Screw-in pins for installation in insulation KWM-100 (package: 4 pieces)


Technical data:



  • symbol: KWM 100


  • model: spiral pin

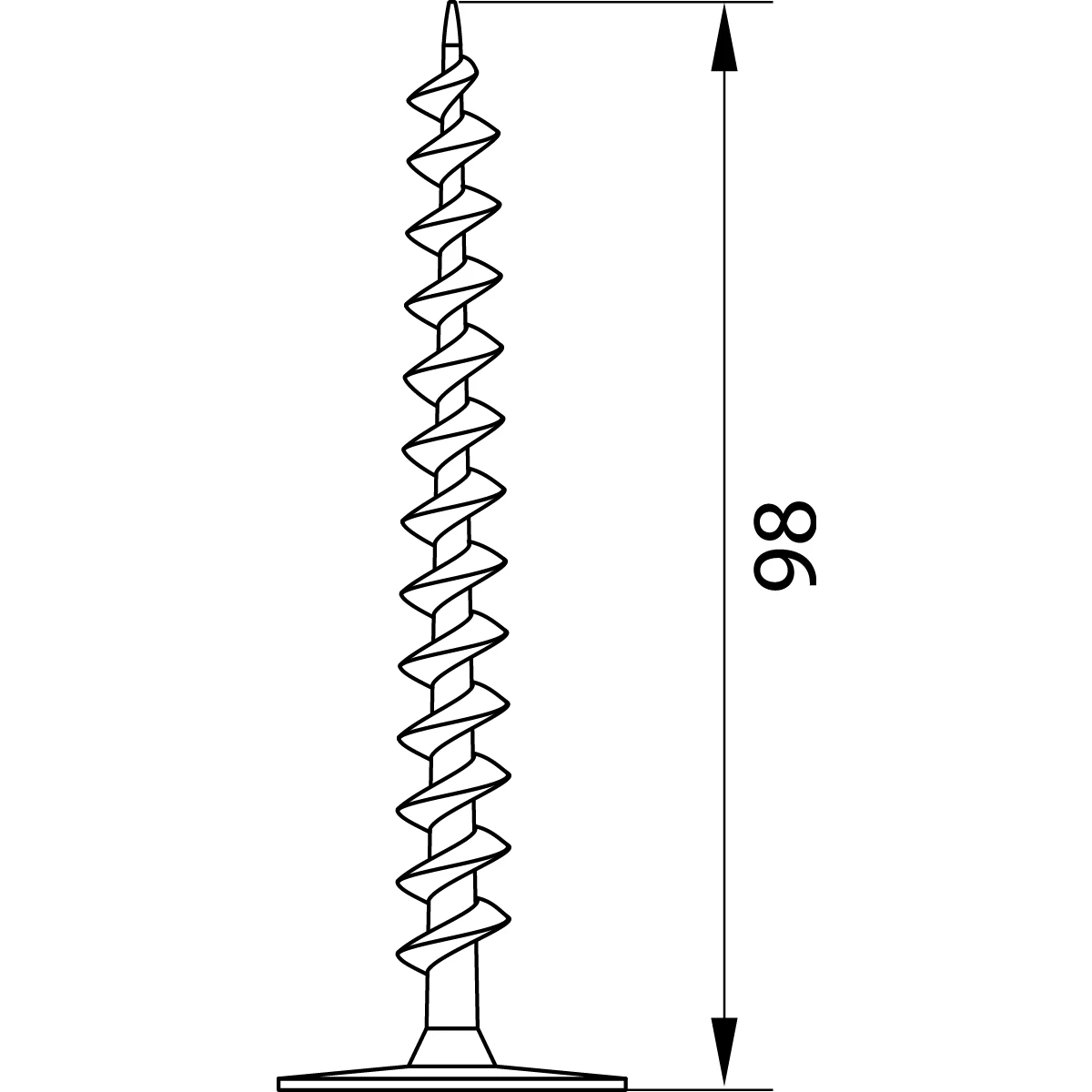

  • length: 98 mm


  • material: plastic


  • type of material: PVC


  • mounting hole diameter: 18 mm


  • screw diameter: 3.5-4.5 m2

  • < li>
    screw length: 30+X


Use:


Universal and professional fixing for anchoring in polystyrene and polyurethane boards, sandwich panels and hard mineral wool. The helical thread ensures proper fastening in the insulation. Designed for mounting: lamps, housings, signaling devices, detectors, sensors, information boards, etc. Easy and quick installation using simple tools, no prior drilling of the hole is required, no prior removal of the plaster layer is required. Use a 5 Allen key to screw in the pins.

Technical data

  • Color
    White
  • Accurate color
    White
  • PKWIU
    22.23.19.0
  • Pieces in the package
    4
  • Pin diameter [mm]
    100

Other technical data

  • Material
    Plastic
  • Surface protection
    Untreated
  • Thread diameter
    18 mm
  • Length
    100 mm
  • Self boring
    Yes
  • Screwing system
    Internal hexagon
  • Material quality
    Other
  • Thread size (metric)
    20
  • Pitch thread
    7 mm
  • Thread moulding
    Thread-cutting
  • Head form
    Hexagon
  • Hardened
    No

Bulk packaging

A kind of package Paczka
Quantity 1 pkg. 1 pkg.
Weight (kg) 0,048 0,002
Width (m) - 0,030
Length (m) - 0,155
Depth (m) - 0,150
