RKSM 640 FT RKSM Magic cable tray, with quick connection 6047690

Name: RKSM 640 FT RKSM Magic cable tray, with quick connection
Brand: OBO BETTERMANN
SKU: TKM068OBOB
Price: 204.98 PLN
Availability: BackOrder

local index:

TKM068OBOB

Catalog number:

6047690

EAN code:

4012195903956

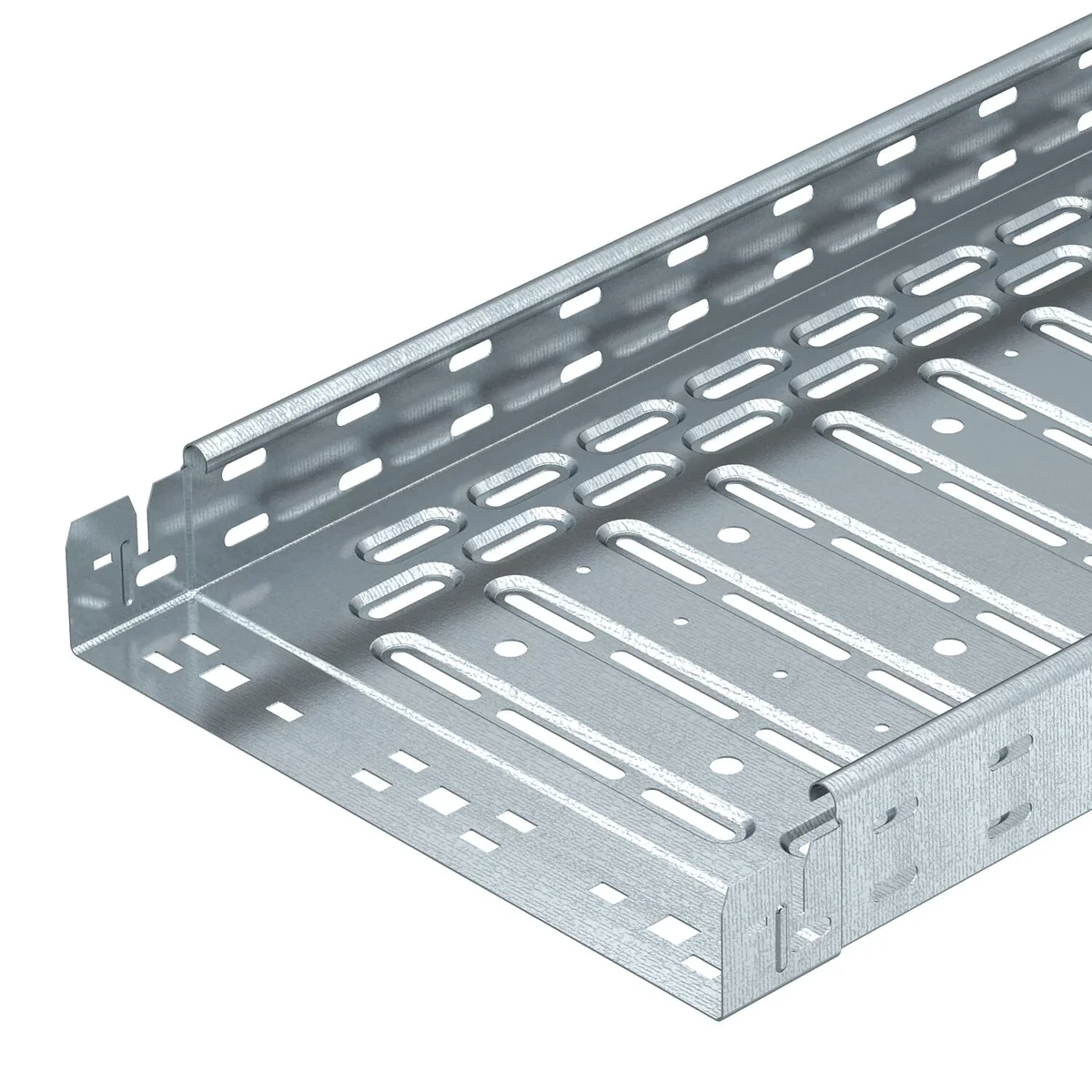

RKSM 640 FT RKSM Magic cable tray, with quick connection

Click on the photo to enlarge

Manufacturer: OBO BETTERMANN

Price:

204,98 zł

gross / m.

(including VAT 23%)

2 weeks

On request

Quantity m.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Height

60 mm
Material thickness

1 mm
Working length

3000 mm
With cover

No
Bottom perforation

Yes
Model

Integrated connector
Suitable for circuit integrity

Yes
Surface protection

Hot-dip galvanized
Weight

4.37 kg/m
Possible support spacing

1 ... 2.5 m
Safe working load according to IEC 61537 with support spacing 1.5 m

1350 N/m
Safe working load according to IEC 61537 with support spacing 2.5 m

600 N/m

Width

400 mm
Length

3050 mm
Useful cross section

23800 mm²
Side perforation

Yes
NATO-mounting holes

No
Type of connection

Snapper mounting
Material

Steel
Colour

Zinc
Load test type according to IEC 61537

Type II
Safe working load according to IEC 61537 with support spacing 1.0 m

2100 N/m
Safe working load according to IEC 61537 with support spacing 2.0 m

900 N/m

Manufacturer details

Manufacturer

OBO Bettermann Holding GmbH & Co. KG
Address

58710 Menden Hüingser Ring 52 Niemcy
E-mail

oferty@obo.pl

Bulk packaging

A kind of package	Bez opakowania	Wiązka	Paleta
Quantity	3 m.	6 m.	84 m.
Weight (kg)	13,116	26,232	403,748
Volume (m3)	0,073	0,089	2,040
Width (m)	0,400	0,415	0,800
Length (m)	3,050	3,050	3,000
Depth (m)	0,060	0,070	0,850
