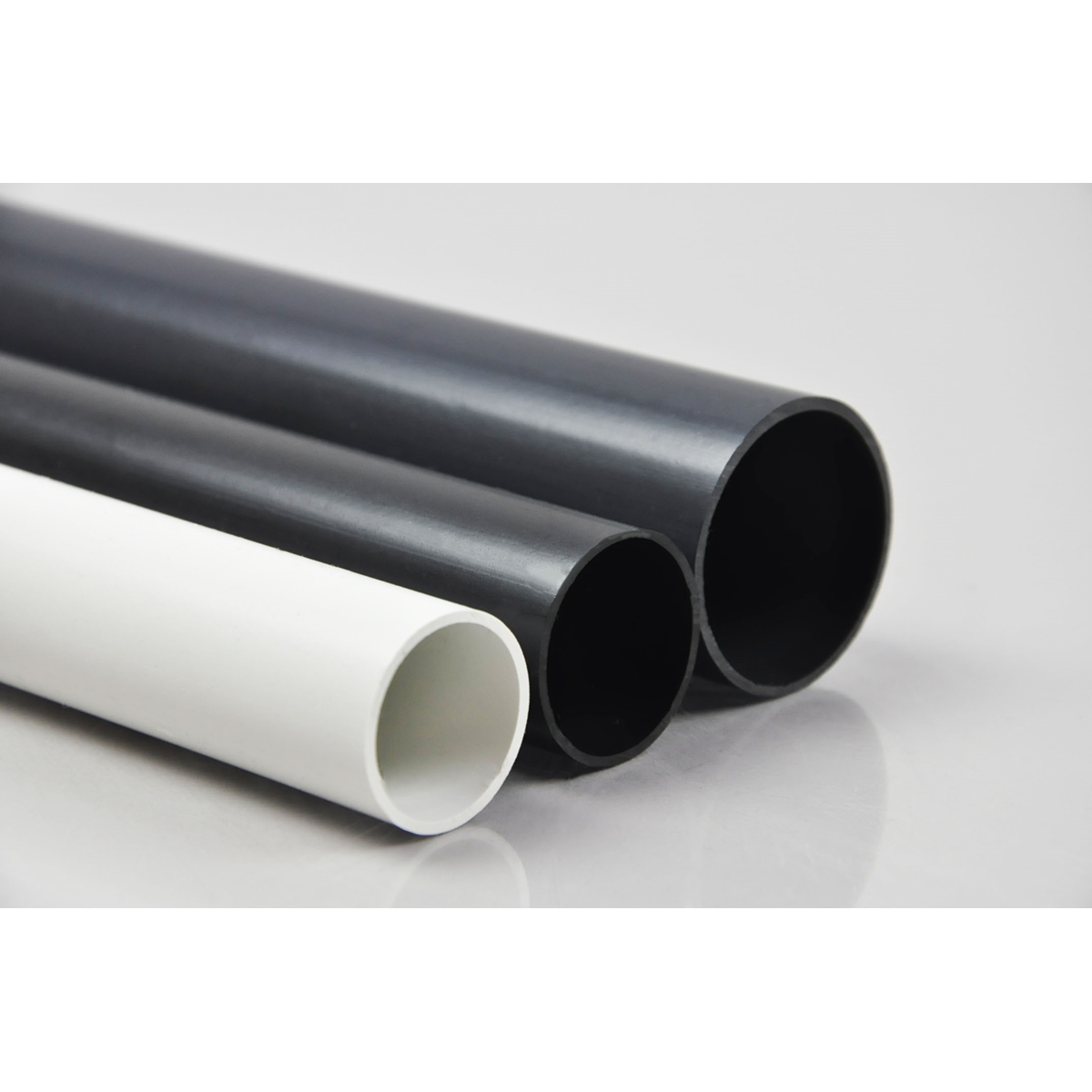

Rigid pipe Rl 32mm, white 06.13

local index:
TRP008ELST
Catalog No:
06.13
EAN code:
5907760073693
Color: White
Compressive strength [N]: 320
Type: Rigid pipe
Large-size product
Price:
3,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Rigid pipes type RL, RS are intended for the distribution and protection of electrical wires outside and inside buildings. The ability to select pipes of appropriate strength allows optimal adaptation to specific conditions and requirements of the installation. The hard PVC granulate used for production, containing a UV stabilizer, guarantees resistance to UV radiation for a moderate climate. PVC is characterized by a high mechanical strength factor, good impact properties, and low relative elongation.

Technical data

  • Color
    White
  • Type
    Rigid pipe
  • Accurate color
    White
  • Compressive strength [N]
    320
  • Dimension [mm]
    32
  • PKWIU
    22.21.29.0

Other technical data

  • Material
    Polyvinyl chloride (PVC)
  • Fire retardant version
    Yes
  • With sleeve
    No
  • Impact strength
    Light (class 2, 320 N)
  • Surface mounting
    Yes
  • Suitable for hollow wall installation
    Yes
  • Machine and systems installation
    Yes
  • Outdoor installation
    Yes
  • Inner diameter
    29.5 mm
  • Operating temperature
    -25 ... 60 °C
  • Colour
    White
  • Halogen free
    No
  • Bending strength
    Rigid
  • Klasa odporności na ściskanie
    Light (class 2, 320 N)
  • Montaż podtynkowy
    Yes
  • Suitable for installation on wood
    Yes
  • Suitable for concrete installation
    No
  • Suitable for underfloor installation (screed)
    No
  • Suitable for underground installation
    Yes
  • Outer diameter
    32 mm
  • High conducting inner coating
    No
