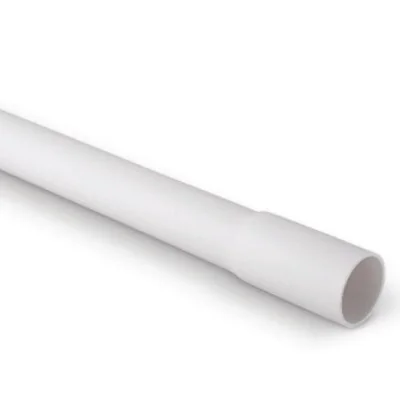

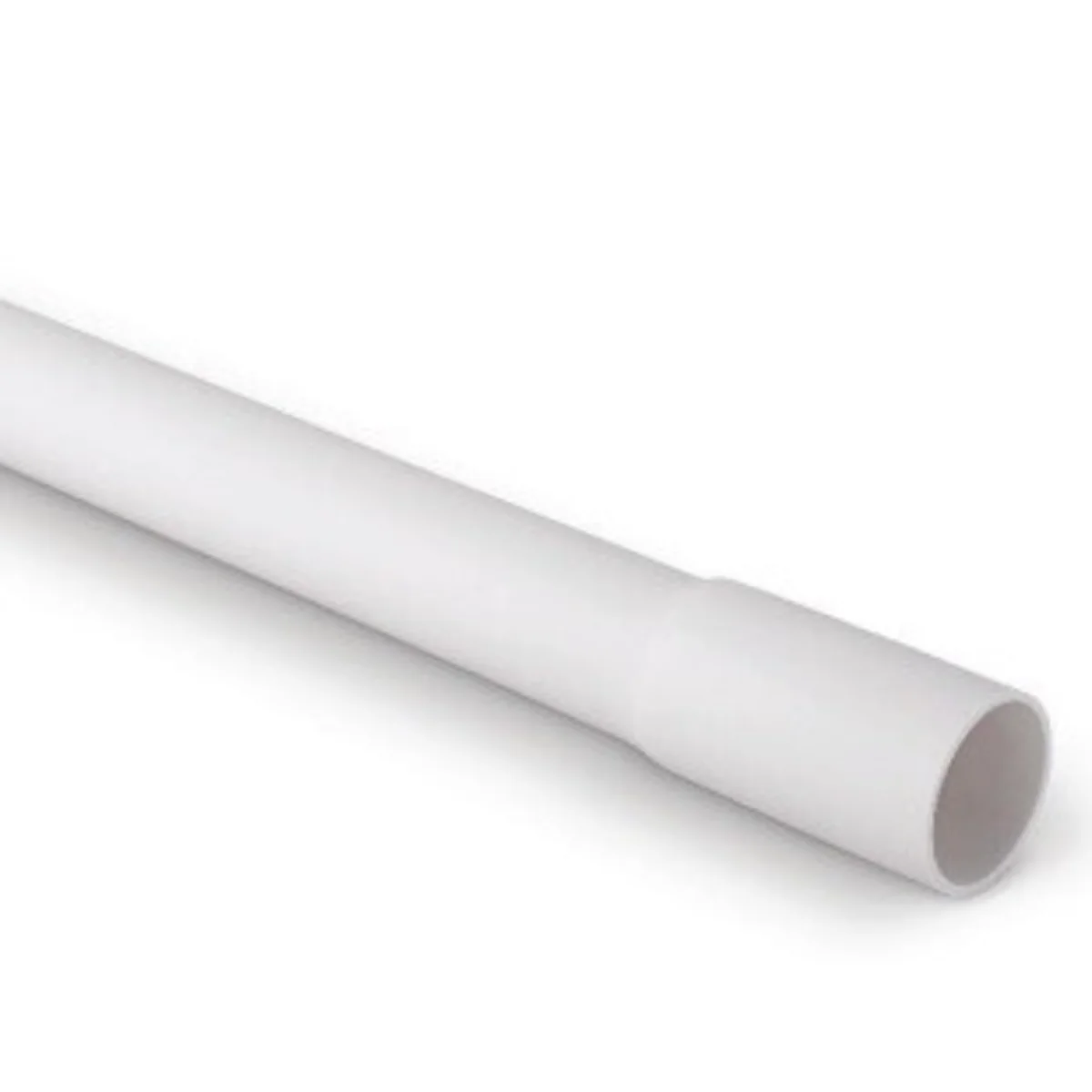

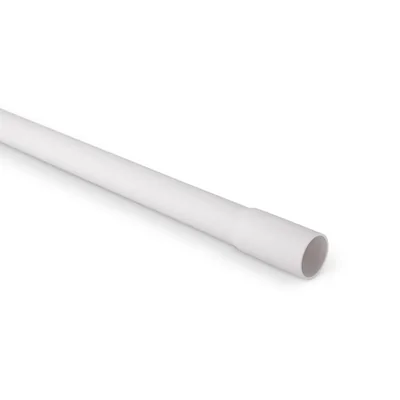

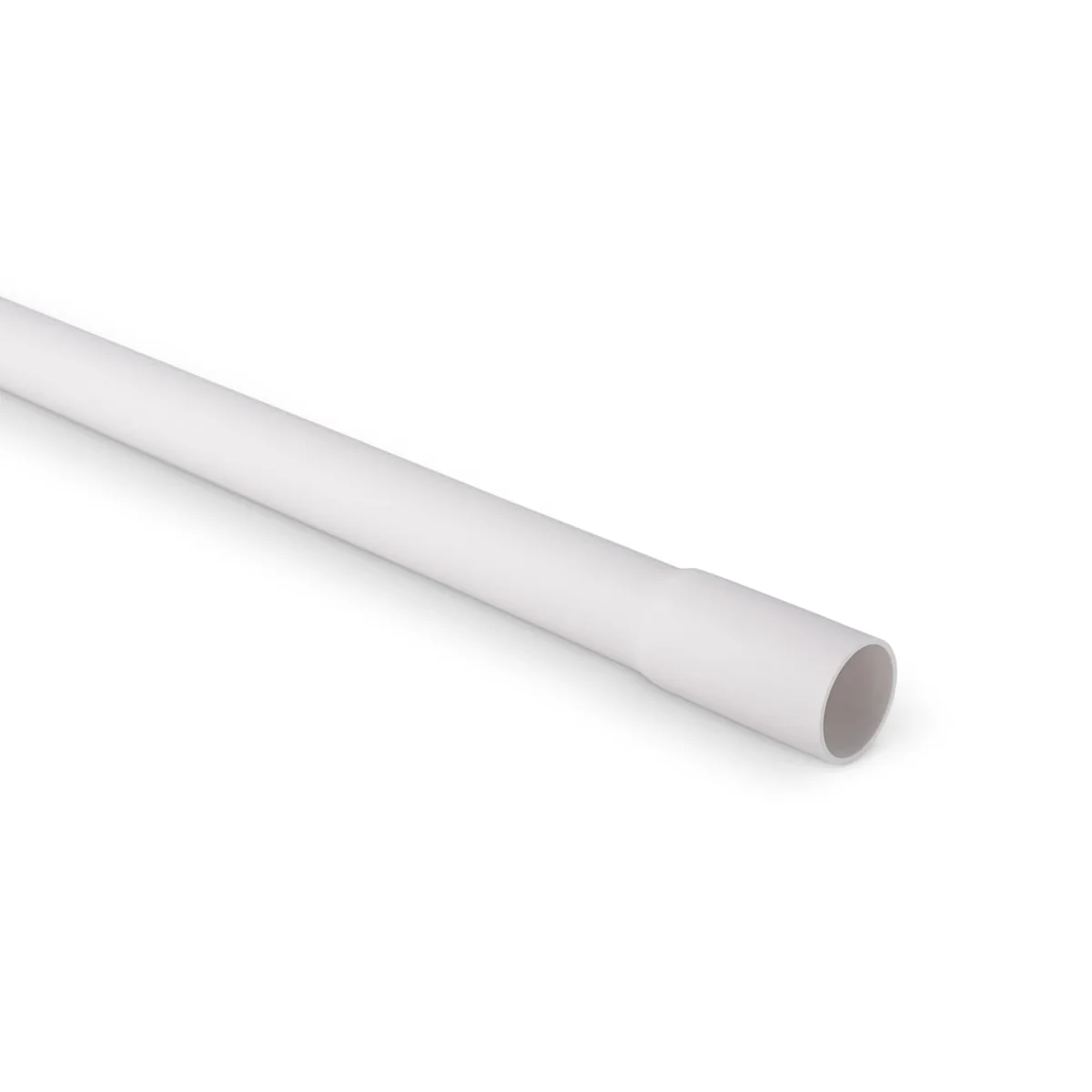

Rigid electrical installation pipe with PVC socket 320N RL-M 22-3m 12732

Indice locale:
TRP206TTPL
Numero di catalogo:
12732
Codice EAN:
5903968673024
Produttore: TT PLAST
Length [mm]: 3000
Color: White
Material: PVC
Prodotto di grandi dimensioni
Prezzo:
1,92 €
gross / pezzi
(inclusa IVA 23%)
0,64 € gross/metro
Consegna in 3 ore
Accessibile 67 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Rigid electrical installation pipe with PVC socket RL-M 22-3m has a reaction to fire class according to PN-EN 13501-1:2019-02: B-s2, d0.  It is characterized by increased durability and color stability, even under conditions of continuous exposure to UV radiation Application:

  • distribution,
  • protection of electric wires in wall installations, both outside and inside the building.

Dati tecnici

  • Length [mm]
    3000
  • Material
    PVC
  • Outer diameter [mm]
    22
  • Color
    White
  • Compressive strength [N]
    320
  • Working temperature [°C]
    from -15 to +60

Altri dati tecnici

  • Material
    Polyvinyl chloride (PVC)
  • Fire retardant version
    Yes
  • Flush-mounted installation
    Yes
  • Suitable for installation on wood
    Yes
  • Outdoor installation
    Yes
  • Outer diameter
    22 mm
  • High conducting inner coating
    No
  • Halogen free
    No
  • With sleeve
    Yes
  • Surface mounting
    Yes
  • Suitable for hollow wall installation
    Yes
  • Suitable for underground installation
    No
  • Operating temperature
    -15 ... 60 °C
  • Colour
    White

Dettagli del produttore

  • Produttore
    TT PLAST S.A.
  • Indirizzo
    32-015 Kłaj Targowisko 476 Polska

Imballaggio sfuso

Una specie di pacchetto Paczka
Quantità 20 pezzi
Peso (kg) 5,700
Larghezza (m) 0,130
Lunghezza (m) 3,000
Profondità (m) 0,100
