PVC wiring trunking 60x90mm white LF6009009016

Name: PVC wiring trunking 60x90mm white
Brand: TEHALIT
SKU: TKP209TEHA
Price: 21.65 PLN
Availability: InStock

local index:

TKP209TEHA

Catalog No:

LF6009009016

EAN code:

4012740012348

Click on the photo to enlarge

Manufacturer: TEHALIT

Length [mm]: 2000

Color: White

Material: PVC

See full description

Large-size product

Price:

21,65 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

Accessible 53 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

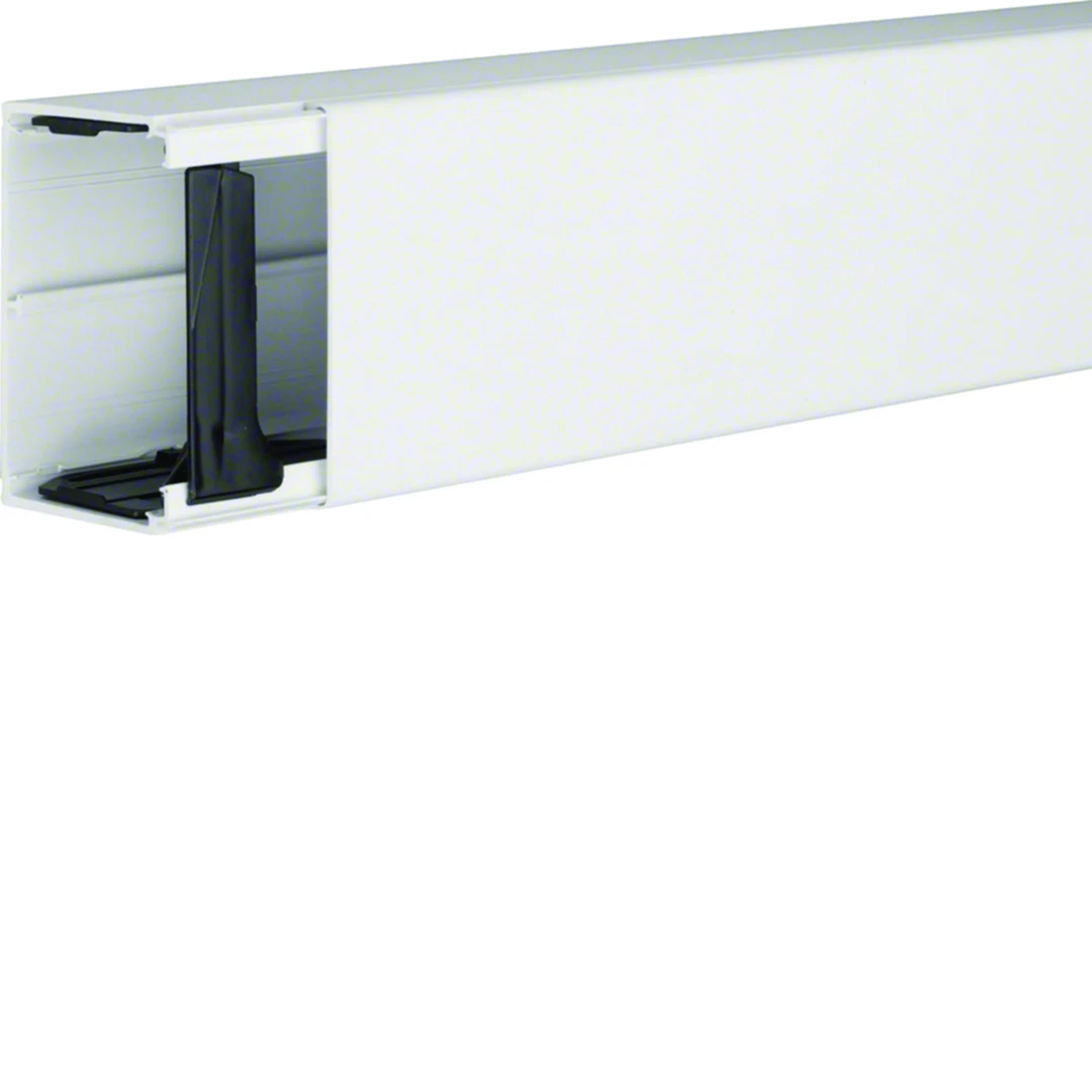

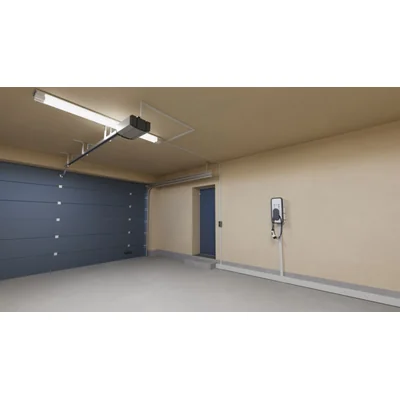

PVC electrical installation trunking 60x90mm white 2m long in white. Thanks to the integrated connectors, laying a single trunking is easy. Electrical installation ducts will be used to route electrical cables in basements, production halls or garages. Application temperature -5 to 60 °C

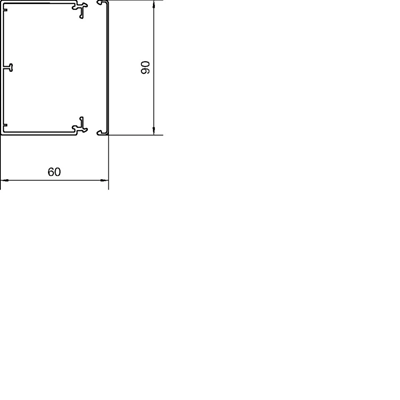

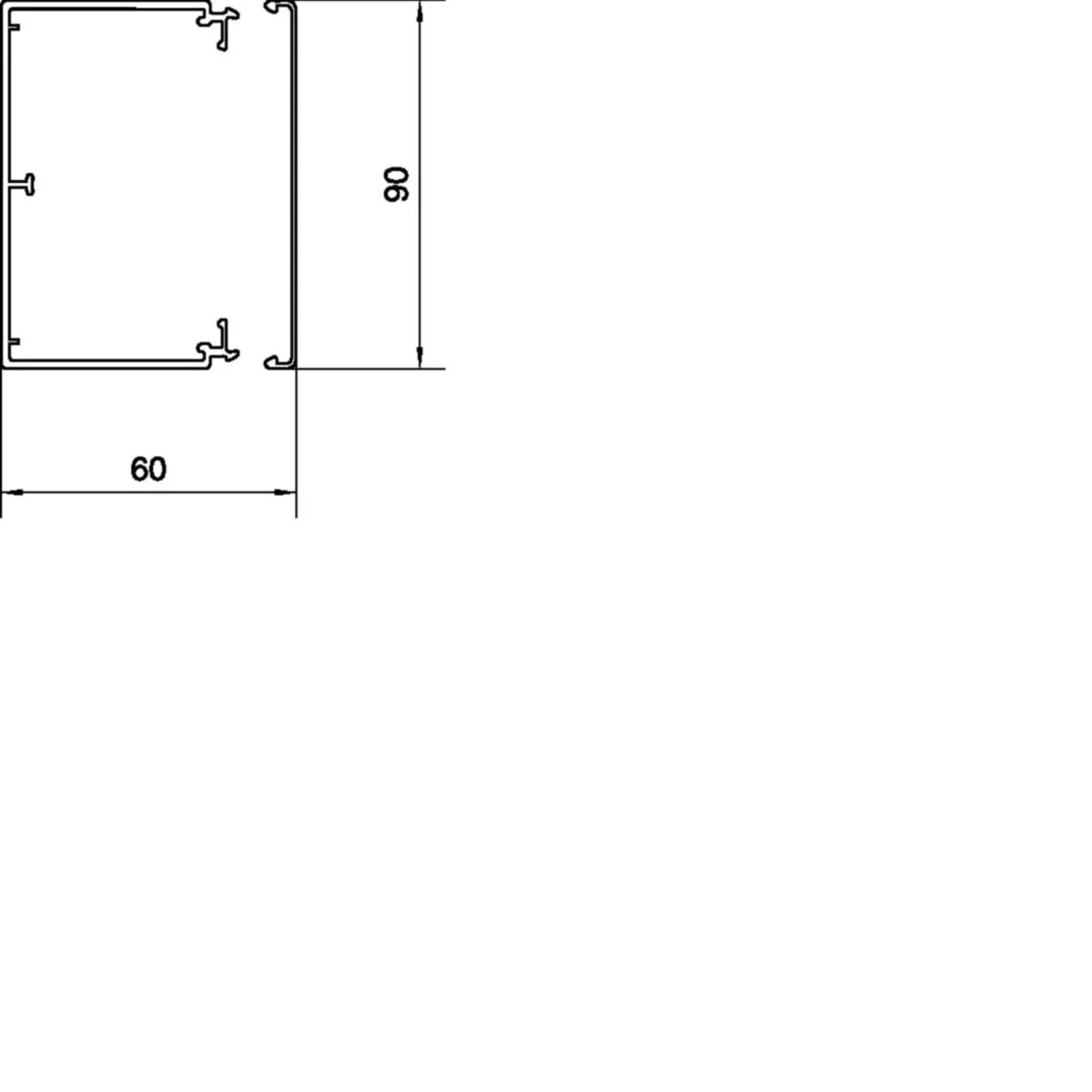

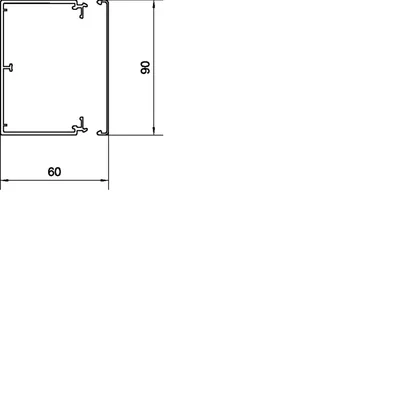

Technical data

Length [mm]

2000
Material

PVC
Level of security

IP30
Height [mm]

60
Usable cross-section [mm²]

4360

Color

White
Installation

Surface-mounted
Width [mm]

90
Degree of mechanical protection

IK07
Number of chambers

1

Other technical data

Height

60 mm
Length

2000 mm
Material

Plastic
Halogen free

No
Suitable for circuit integrity

No
Transparent

No
Number of permanent partitions

0
Type of fastening

Bottom perforation
With cable fixing clip

Yes
With duct connector

Yes
Pre-stamping

No

Width

90 mm
Useful cross section

4360 mm²
Material quality

Polyvinyl chloride (PVC)
Surface protection

Untreated
Colour

White
RAL-number

9016
Number of plug-in partitions

1
Cover model

Loose
With protective foil

No
Delivery on roll

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	8 pcs.	216 pcs.
Weight (kg)	1,015	17,104	501,808
Width (m)	0,090	0,260	0,800
Length (m)	0,060	0,150	1,500
Depth (m)	1,000	2,045	2,045
