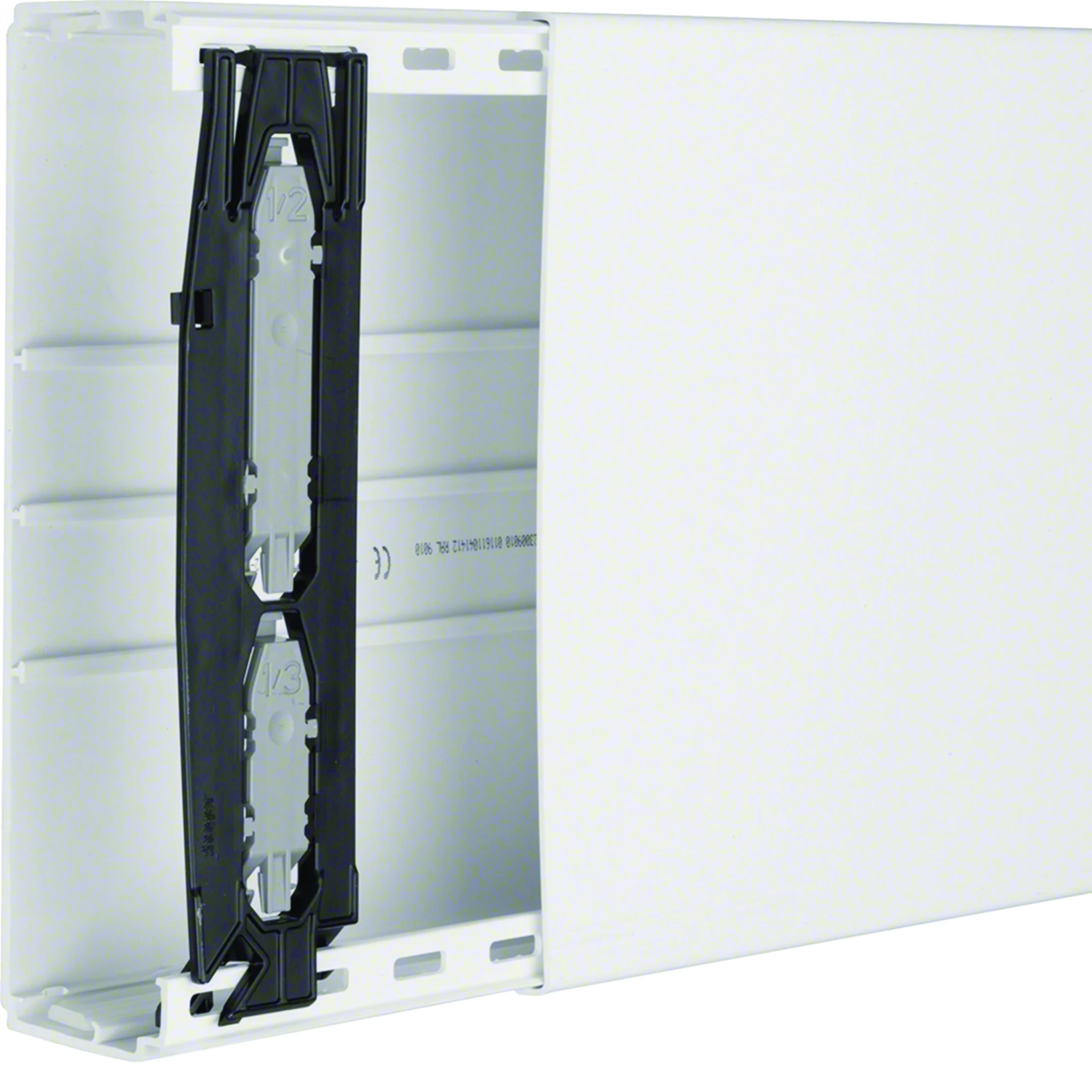

PVC wiring trunking 60x230mm white LF6023009016

local index:
TKP220TEHA
Catalog No:
LF6023009016
EAN code:
4012740012621
Manufacturer: TEHALIT
Length [mm]: 2000
Color: White
Material: PVC
Large-size product
Price:
52,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 12 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PVC electrical installation trunking 60x230mm white 2m long in white. Thanks to the integrated connectors, laying a single trunking is easy. Electrical installation ducts will be used to route electrical cables in basements, production halls or garages. Application temperature -5 to 60 °C

Technical data

  • Length [mm]
    2000
  • Material
    PVC
  • Level of security
    IP30
  • Height [mm]
    60
  • Usable cross-section [mm²]
    10998
  • Color
    White
  • Installation
    Surface-mounted
  • Width [mm]
    230
  • Degree of mechanical protection
    IK07
  • Number of chambers
    1

Other technical data

  • Height
    60 mm
  • Length
    2000 mm
  • Material
    Plastic
  • Halogen free
    No
  • Suitable for circuit integrity
    No
  • Transparent
    No
  • Number of permanent partitions
    0
  • Type of fastening
    Bottom perforation
  • With cable fixing clip
    No
  • With duct connector
    Yes
  • Pre-stamping
    No
  • Width
    230 mm
  • Useful cross section
    10998 mm²
  • Material quality
    Polyvinyl chloride (PVC)
  • Surface protection
    Untreated
  • Colour
    White
  • RAL-number
    9016
  • Number of plug-in partitions
    3
  • Cover model
    Loose
  • With protective foil
    No
  • Delivery on roll
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 4 pcs. 108 pcs.
Weight (kg) 2,368 22,680 652,360
Width (m) 0,230 0,260 0,800
Length (m) 0,060 0,165 1,610
Depth (m) 1,000 2,045 2,045
