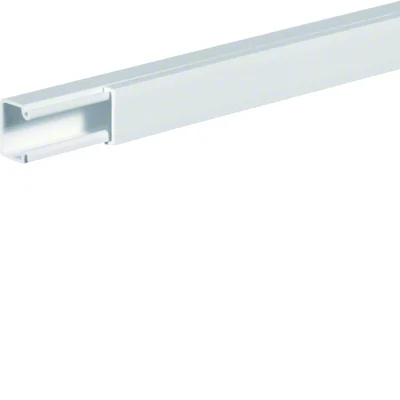

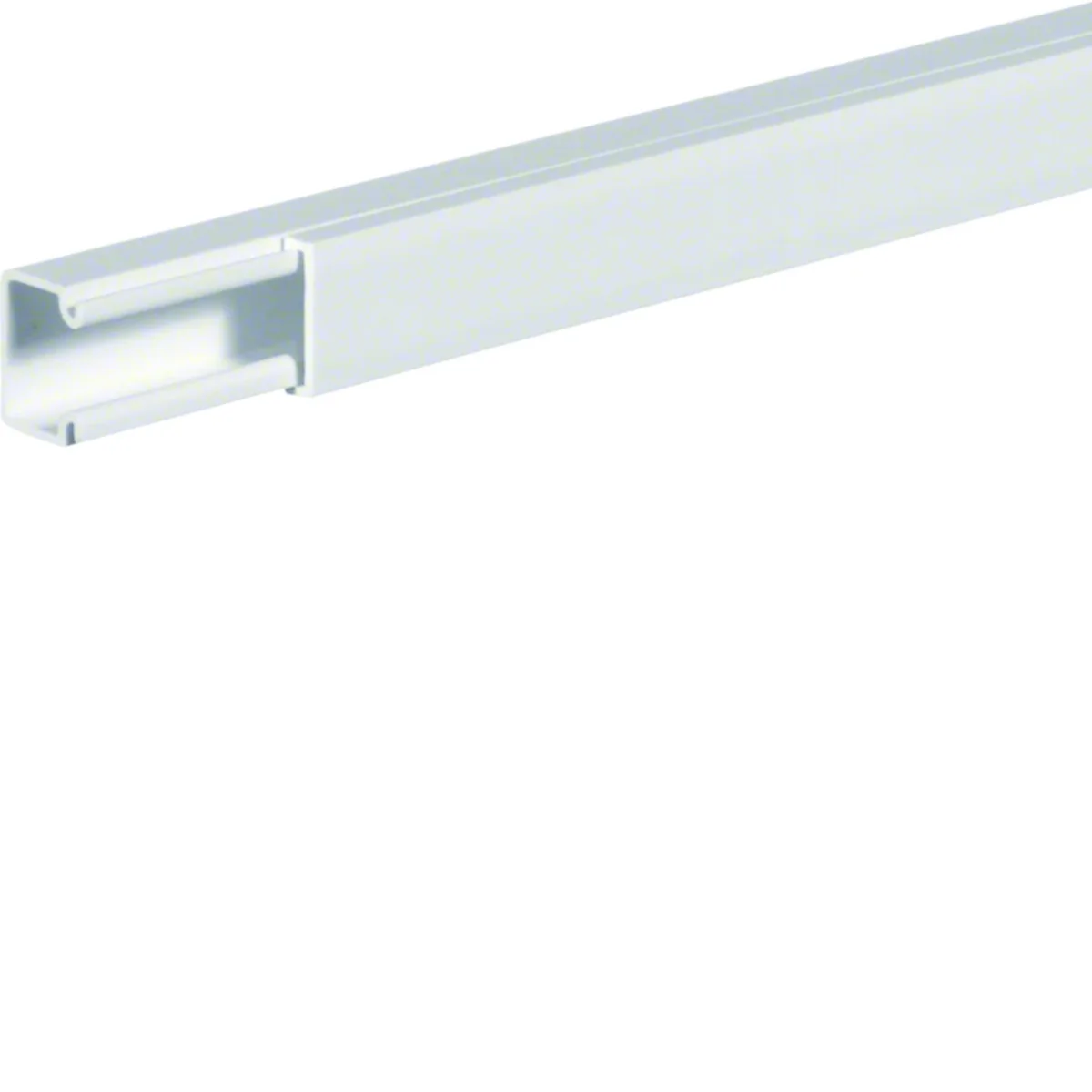

PVC wiring trunking 10x10mm white LF1001009016

local index:
TKP067TEHA
Catalog No:
LF1001009016
EAN code:
4012740011419
Manufacturer: TEHALIT
Length [mm]: 2000
Color: White
Material: PVC
Large-size product
Price:
1,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 90 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

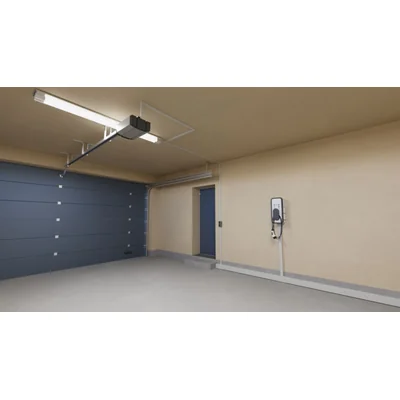

PVC electrical installation trunking 10x10mm white 2m long in white. Thanks to the integrated connectors, laying a single trunking is easy. Electrical installation ducts will be used to route electrical cables in basements, production halls or garages.

Technical data

  • Length [mm]
    2000
  • Material
    PVC
  • Level of security
    IP30
  • Height [mm]
    10
  • Usable cross-section [mm²]
    84
  • Color
    White
  • Installation
    Surface-mounted
  • Width [mm]
    12
  • Degree of mechanical protection
    IK07
  • Number of chambers
    1

Other technical data

  • Height
    10 mm
  • Length
    2000 mm
  • Material
    Plastic
  • Halogen free
    No
  • Suitable for circuit integrity
    No
  • Transparent
    No
  • Number of permanent partitions
    0
  • Type of fastening
    Bottom perforation
  • With cable fixing clip
    Yes
  • With duct connector
    No
  • Pre-stamping
    No
  • Width
    12 mm
  • Useful cross section
    84 mm²
  • Material quality
    Polyvinyl chloride (PVC)
  • Surface protection
    Untreated
  • Colour
    White
  • RAL-number
    9016
  • Number of plug-in partitions
    0
  • Cover model
    Loose
  • With protective foil
    No
  • Delivery on roll
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 42 pcs. 4704 pcs.
Weight (kg) 0,074 6,865 808,880
Width (m) 0,012 0,177 0,800
Length (m) 0,010 0,032 1,600
Depth (m) 1,000 2,010 2,030
