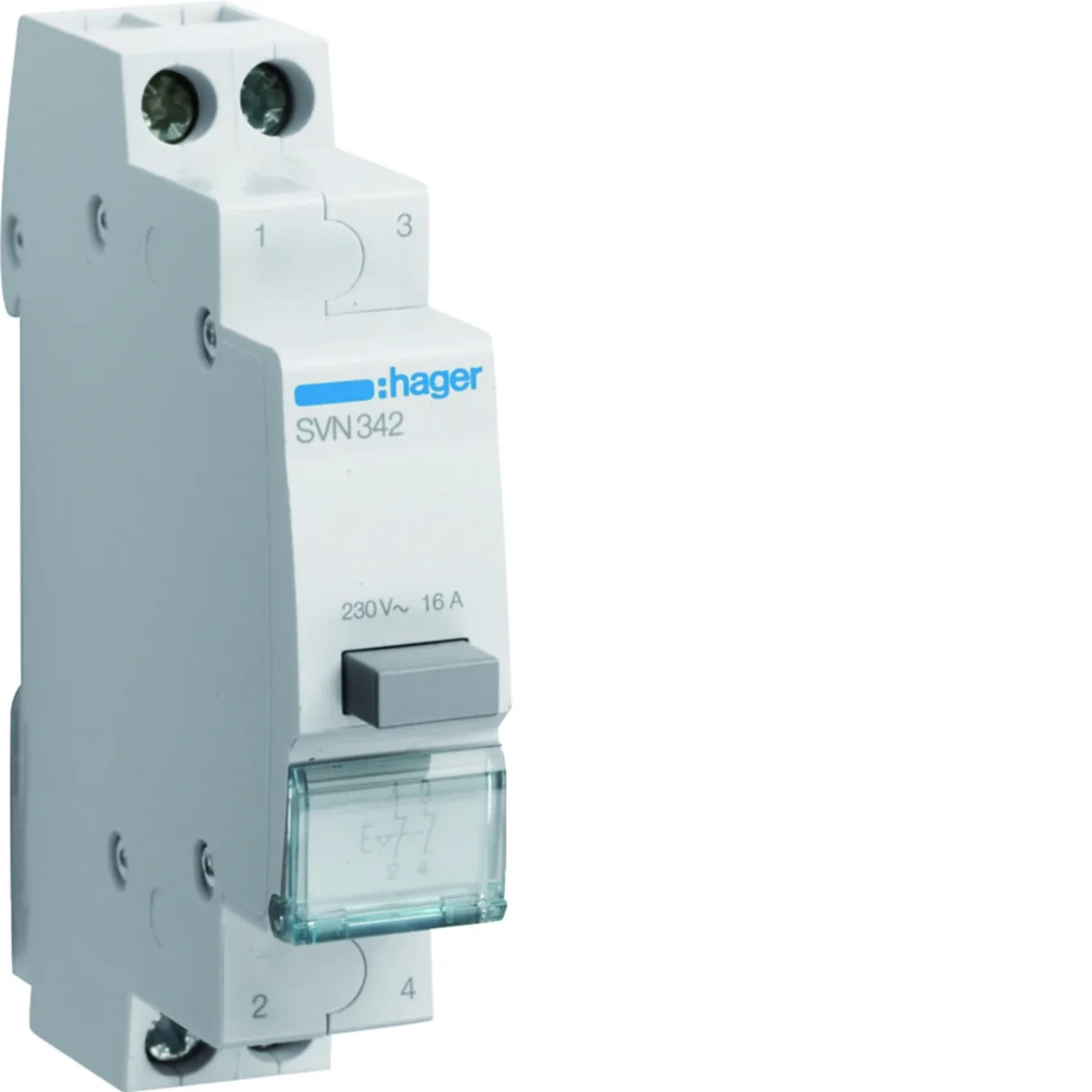

Push-button switch 16A, 2R SVN342
local index:
TAK007HAGE
Catalog No:
SVN342
EAN code:
3250615721853
Price:
17,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Push-button switch 16A, 2R
Technical data
-
Rated frequency [Hz]60
-
Tightening torque [Nm]1.7
-
Rated current [A]16
-
Width [mm]17.5
-
Height [mm]83
-
Mechanical durability (number of cycles)15000
-
Rated switching voltage [V]230
-
storage temperature [°C]From -40 to 80
-
Wire cross-section (cord) [mm²]0.75 - 6
-
PKWIU27.33.11.0
-
Depth [mm]66
-
Rated insulation voltage [V]250
-
Level of securityIP20
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)15000
-
Operating temperature range [°C]from -20 to 50
-
Number of modules1
-
Rated surge voltage [V]4000
-
Conductor cross-section (wire) [mm²]0.75 - 10
Other technical data
-

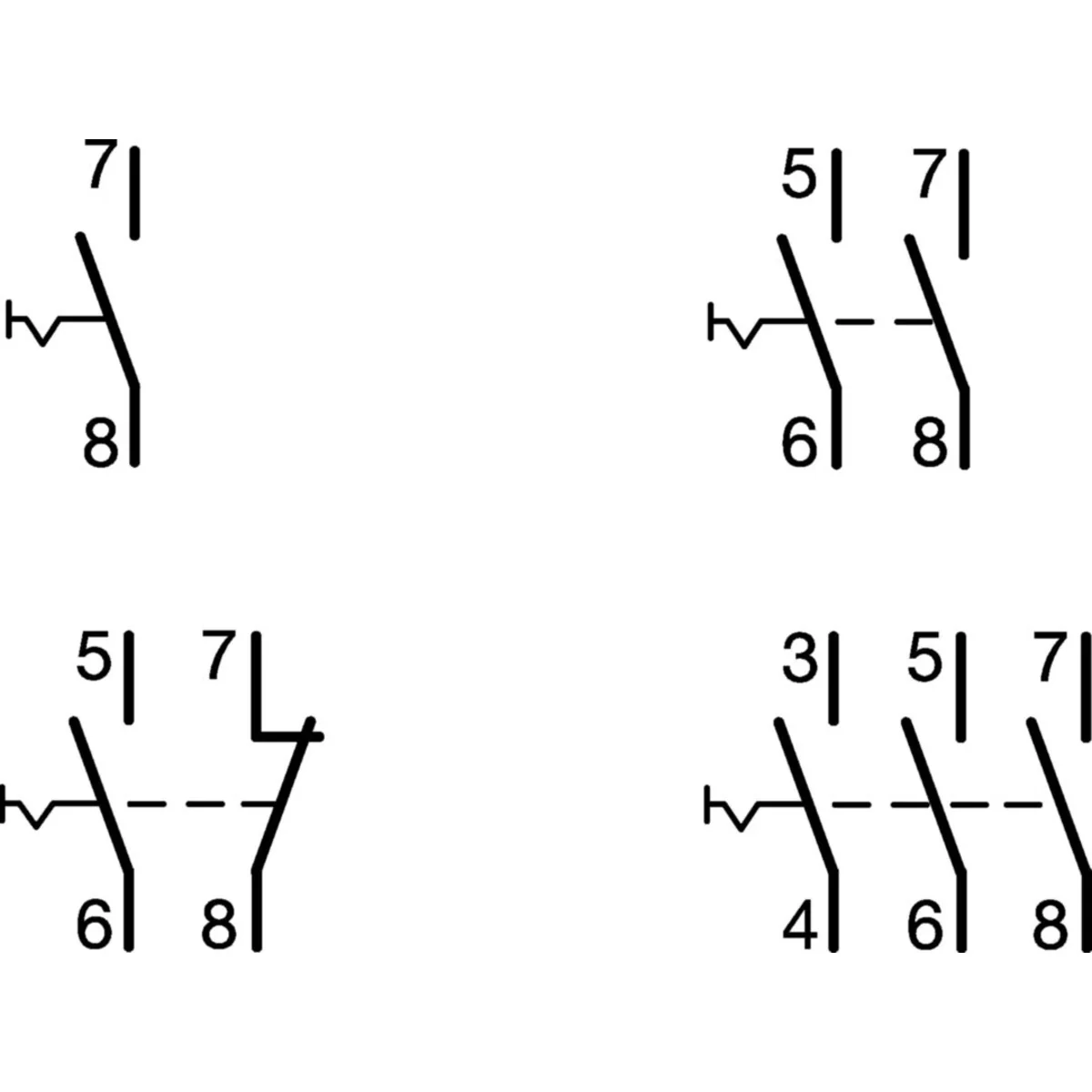

Number of contacts as normally closed contact2
-
Number of contacts as change-over contact0
-
Switching voltage230 V
-
With signal lampNo
-
Colour buttonGrey
-
Built-in depth66 mm
-
Number of contacts as normally open contact0
-
Switching current16 A
-
Voltage typeAC
-
Max. lamp power0 W
-
Width in number of modular spacings1
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 144 pcs. | 3456 pcs. |
| Weight (kg) | 0,060 | 0,781 | 9,812 | 260,488 |
| Width (m) | 0,018 | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,083 | 0,082 | 0,244 | 1,126 |
| Depth (m) | 0,072 | 0,229 | 0,370 | 1,200 |
