Protective tube WOT 7 E03DK-10030100101

Índice local:
TRS023ERGO
Número de catálogo:
E03DK-10030100101
Fabricante: ERGOM
Material: steel
short name: WOT 7
Inner diameter [mm]: 9.4
Precio:
537,40 zł
gross / uds.
(IVA incluido 23%)
hasta una semana
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

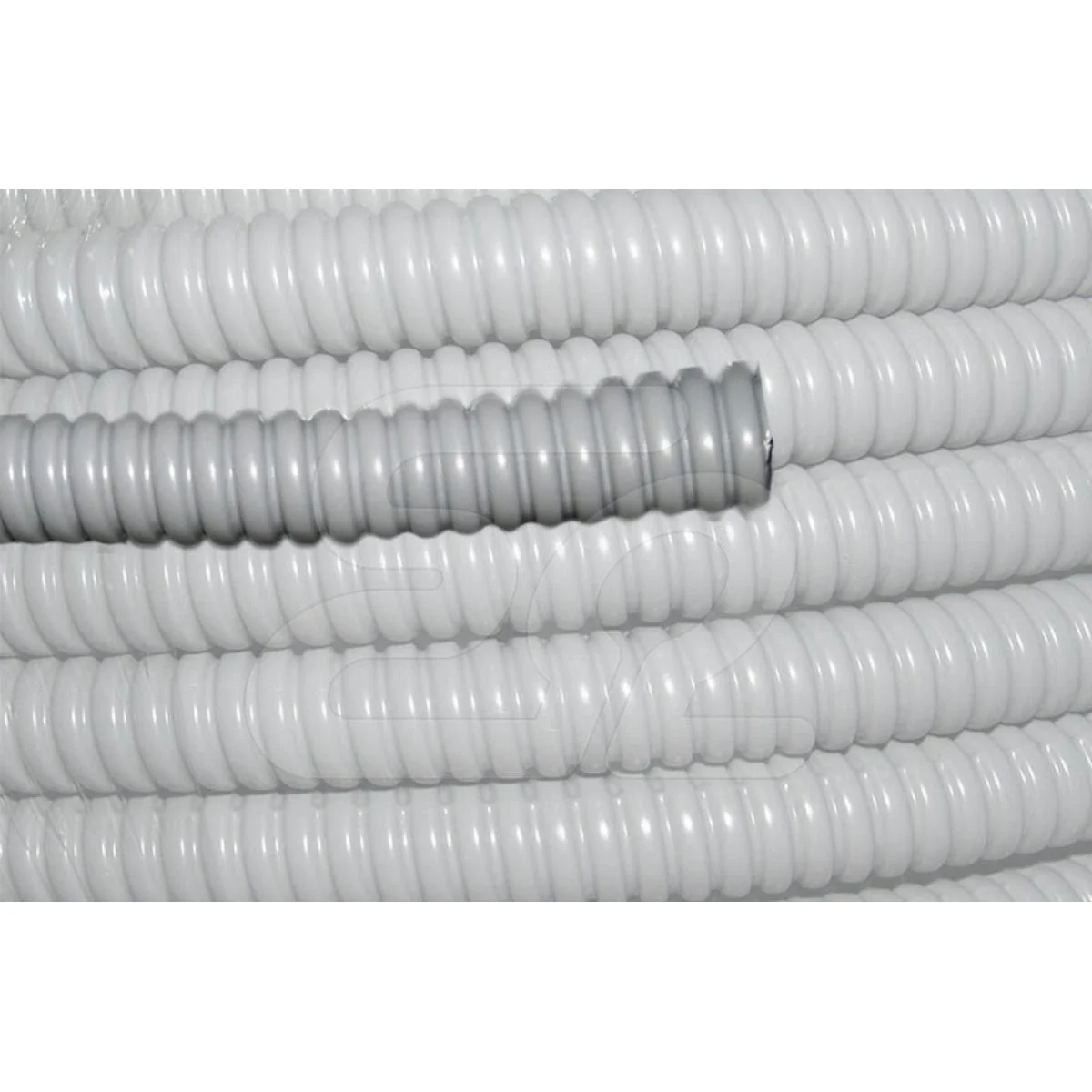

Plastic-coated steel pipe for installation in concrete, on wood, outdoor and subsurface installations. Suitable for both flush and surface mounting.


Price for a 50m roll.

Datos técnicos

  • Material
    steel
  • Inner diameter [mm]
    9.4
  • Surface protection
    plastic
  • Packaging
    50m
  • short name
    WOT 7
  • Outer diameter [mm]
    12.5
  • Operating temperature range [°C]
    -20 - 80
  • PKWIU
    25.99.29.0

Otros datos técnicos

  • Outer diameter
    12.5 mm
  • Material
    Steel
  • Sheathing material 1st coating
    Polyvinyl chloride (PVC)
  • Compressive strength
    1250 N
  • Degree of protection (IP)
    IP66
  • Bending radius, static
    32 mm
  • Colour
    Grey
  • Electrical characteristics
    Not specified
  • Suitable for EX-applications
    No
  • Approved according to FI
    No
  • Inner diameter
    9.4 mm
  • Surface protection
    Other
  • Sheathing material 2nd coating (exterior)
    Polyvinyl chloride (PVC)
  • Operating temperature
    -5 ... 80 °C
  • Tensile strength
    500 N
  • Weight
    0.12 kg/m
  • Suspended load capacity
    450 N
  • Flame accelerating
    No
  • Bending strength
    Flexible
  • With approval according to UL
    No

Detalles del fabricante

  • Fabricante
    Zakład Aparatury Elektrycznej Ergom Sp. z o.o.
  • Dirección
    94-102 Łódź Nowe Sady 10 Polska

Empaquetado a granel

una especie de paquete Metr
Cantidad 1 uds.
Peso (kg) 5,500
Ancho (m) 0,340
Longitud (m) 0,340
Profundidad (m) 0,160
