ERGOM

Protective pipe WO 48 E03DK-10010100901

local index:
TRS021ERGO
Catalog No:
E03DK-10010100901
Price:
268,45 €
gross / pcs.
including VAT 23%
Availability:
Product on individual request
Delivery:
Large-size product
From 65,37 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

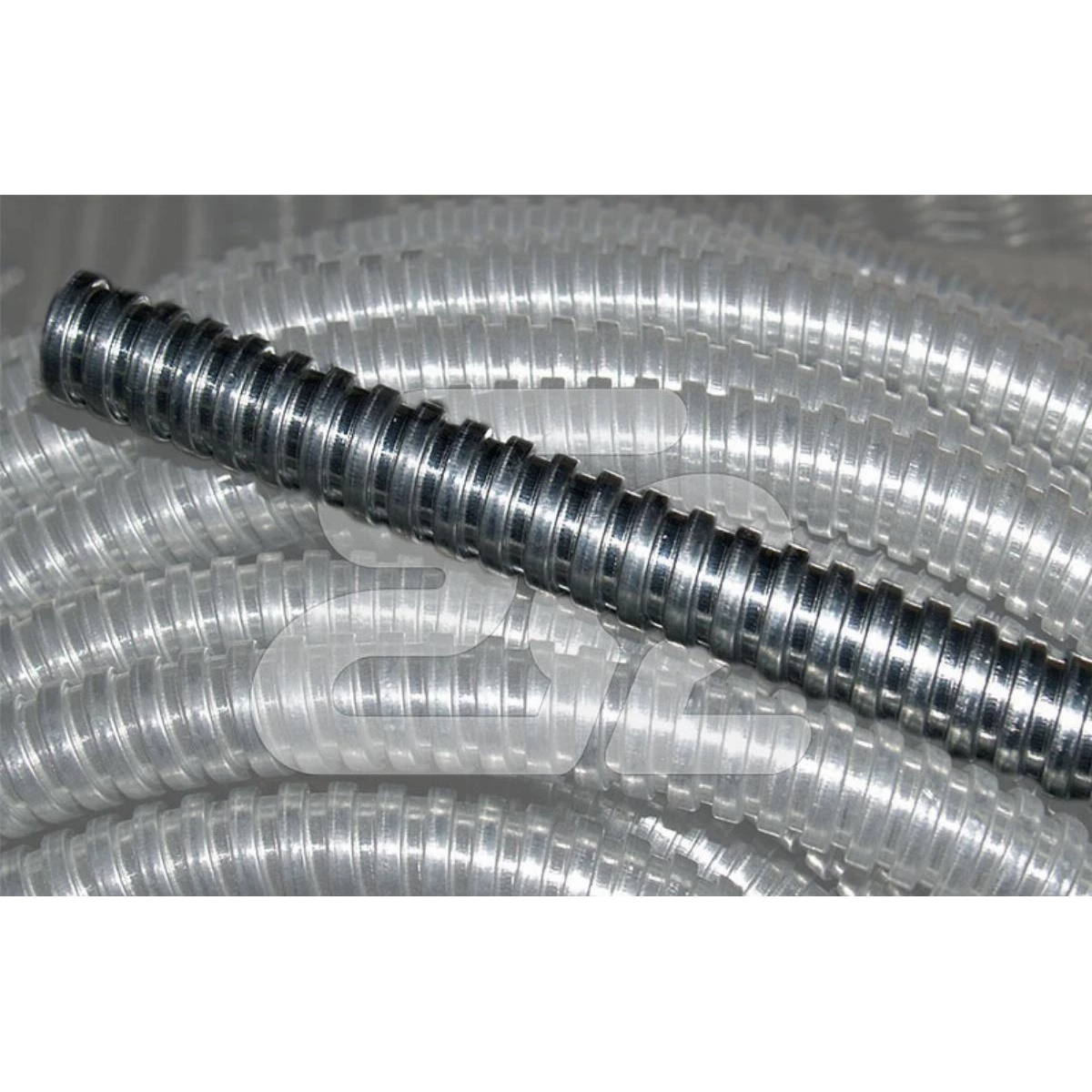

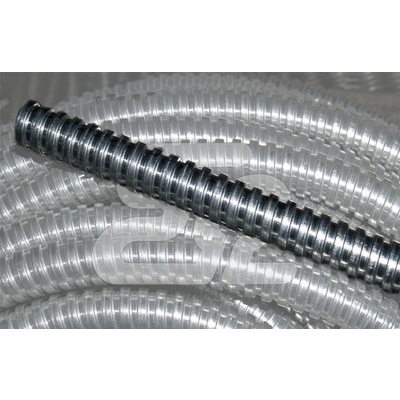

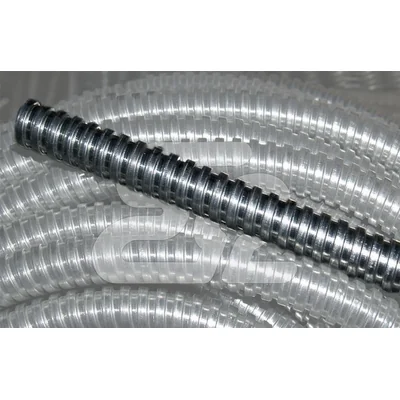

Protective pipe WO 48

Technical data

  • Gross length
    0, 11
  • Gross width
    0, 14
  • short name
    OW 48
  • Gross height
    0, 1

Other technical data

  • Outer diameter
    60 mm
  • Material
    Steel
  • Sheathing material 1st coating
    Not sheathed
  • Compressive strength
    1250 N
  • Degree of protection (IP)
    IP40
  • Bending radius, static
    125 mm
  • Suspended load capacity
    450 N
  • Flame accelerating
    no
  • Bending strength
    Flexible
  • With approval according to UL
    no
  • Inner diameter
    54 mm
  • Surface protection
    Galvanized
  • Sheathing material 2nd coating (exterior)
    Not sheathed
  • Operating temperature
    -80 ... 300 °C
  • Tensile strength
    500 N
  • Weight
    0.85 kg/m
  • Electrical characteristics
    Not specified
  • Suitable for EX-applications
    no
  • Approved according to FI
    no
