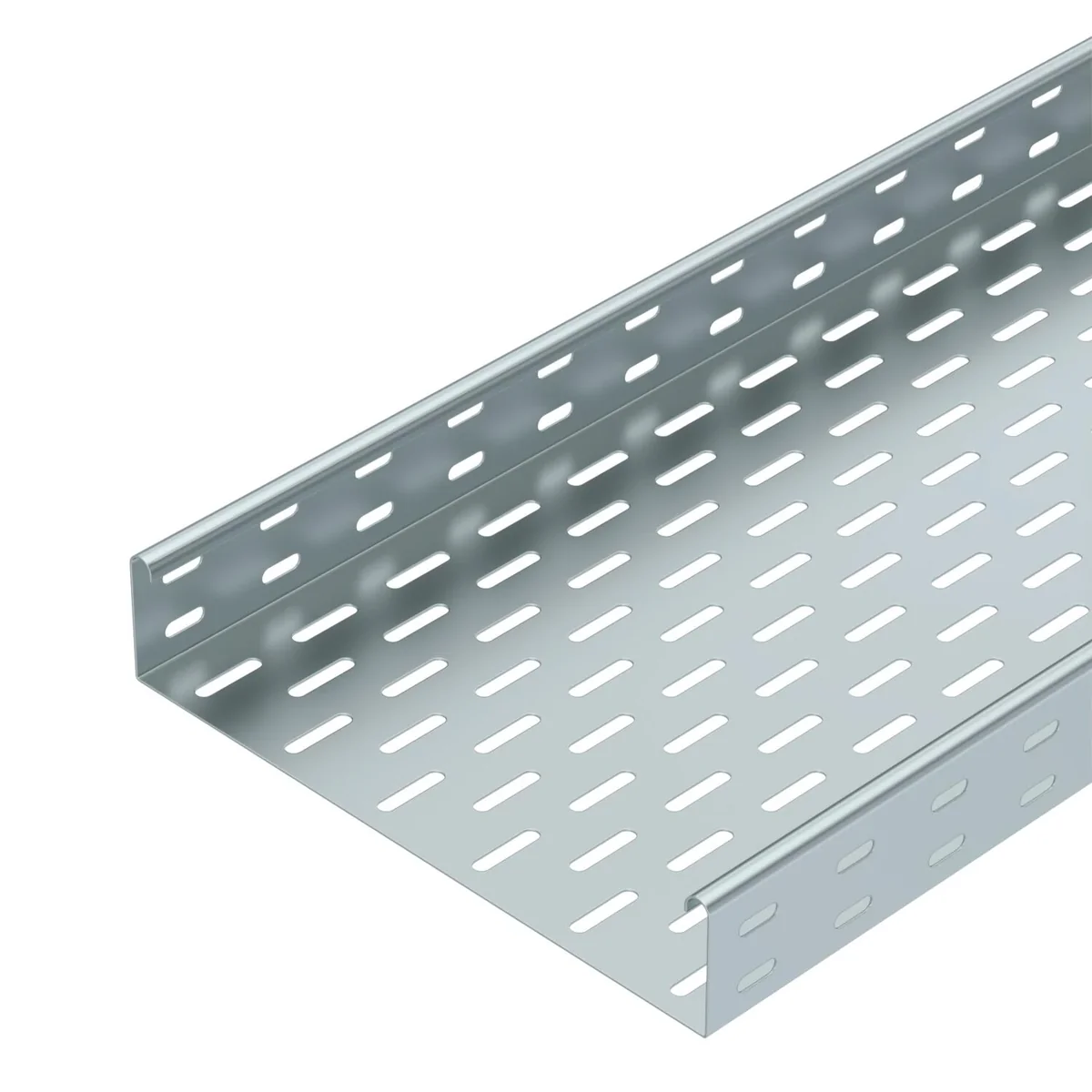

MKS 630 FS MKS perforated cable tray 6055303
local index:
TKM061OBOB
Catalog number:
6055303
EAN code:
4012196059775
Manufacturer:
OBO BETTERMANN
Price:
333,45 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product

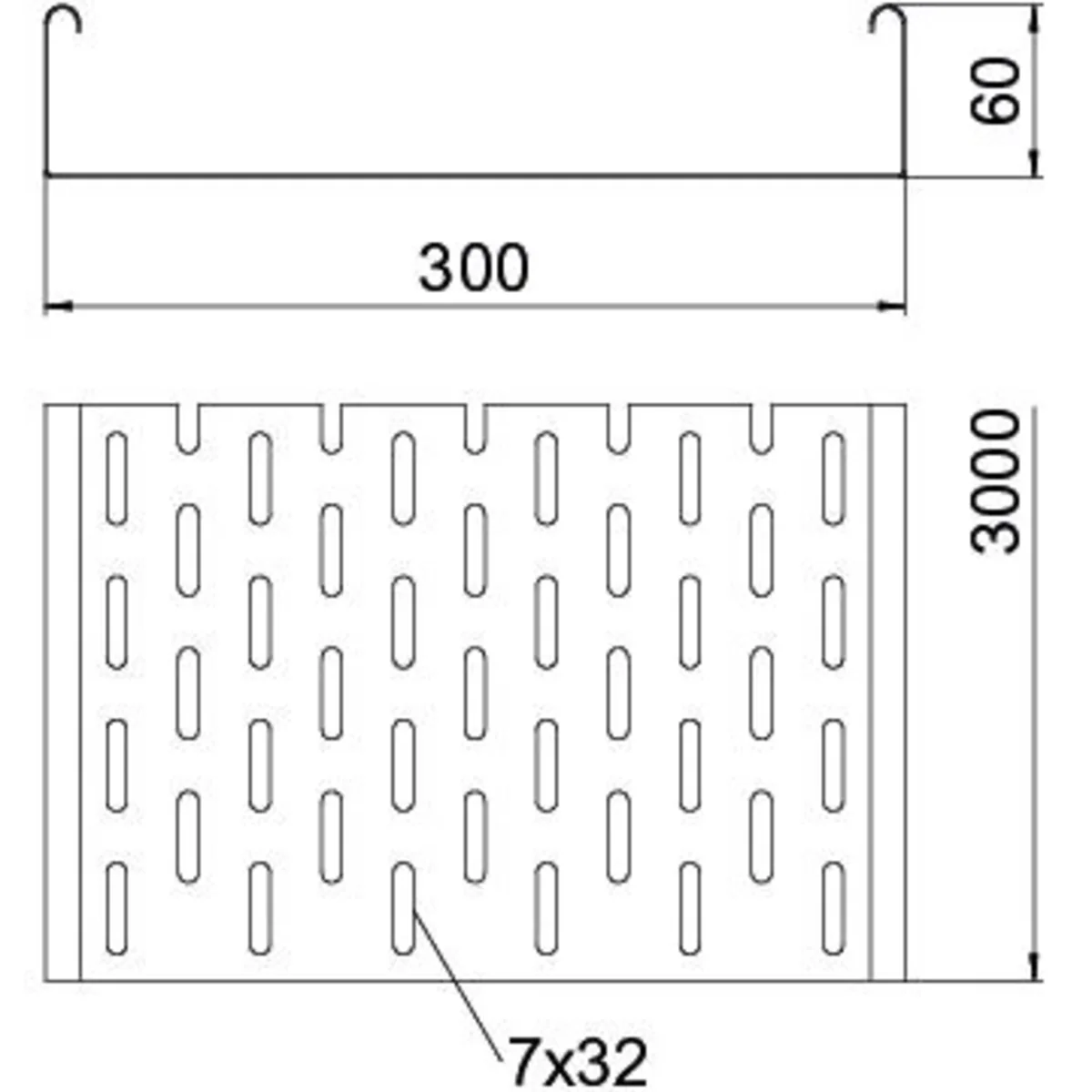

Technical data
Other technical data
-
Height60 mm
-
Material thickness1 mm
-
Useful cross section17800 mm²
-
Side perforationYes
-
NATO-mounting holesNo
-
Type of connectionScrewed
-
MaterialSteel
-
ColourZinc
-
Load test type according to IEC 61537Type II
-
Safe working load according to IEC 61537 with support spacing 1.5 m1500 N/m
-
Safe working load according to IEC 61537 with support spacing 2.5 m500 N/m
-
Width300 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationYes
-
ModelWithout connector
-
Suitable for circuit integrityNo
-
Surface protectionContinuously galvanized
-
Weight3.05 kg/m
-
Possible support spacing1.5 ... 2.5 m
-
Safe working load according to IEC 61537 with support spacing 2.0 m1000 N/m
Manufacturer details
-
ManufacturerOBO Bettermann Holding GmbH & Co. KG
-
Address58710 Menden Hüingser Ring 52 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Bez opakowania | Wiązka | Paleta |
| Quantity | 1 pcs. | 2 pcs. | 44 pcs. |
| Weight (kg) | 9,139 | 18,278 | 438,616 |
| Volume (m3) | 0,057 | 0,061 | 2,040 |
| Width (m) | 0,312 | 0,315 | 0,800 |
| Length (m) | 3,000 | 3,000 | 3,000 |
| Depth (m) | 0,061 | 0,065 | 0,850 |
