MKR 15 050 FT Cable tray, marine standard, material thickness 1.25 mm 6045057

Name: MKR 15 050 FT Cable tray, marine standard, material thickness 1.25 mm
Brand: OBO BETTERMANN
SKU: TKM039OBOB
Price: 112.85 PLN
Availability: BackOrder

local index:

TKM039OBOB

Catalog number:

6045057

EAN code:

4012196053650

MKR 15 050 FT Cable tray, marine standard, material thickness 1.25 mm

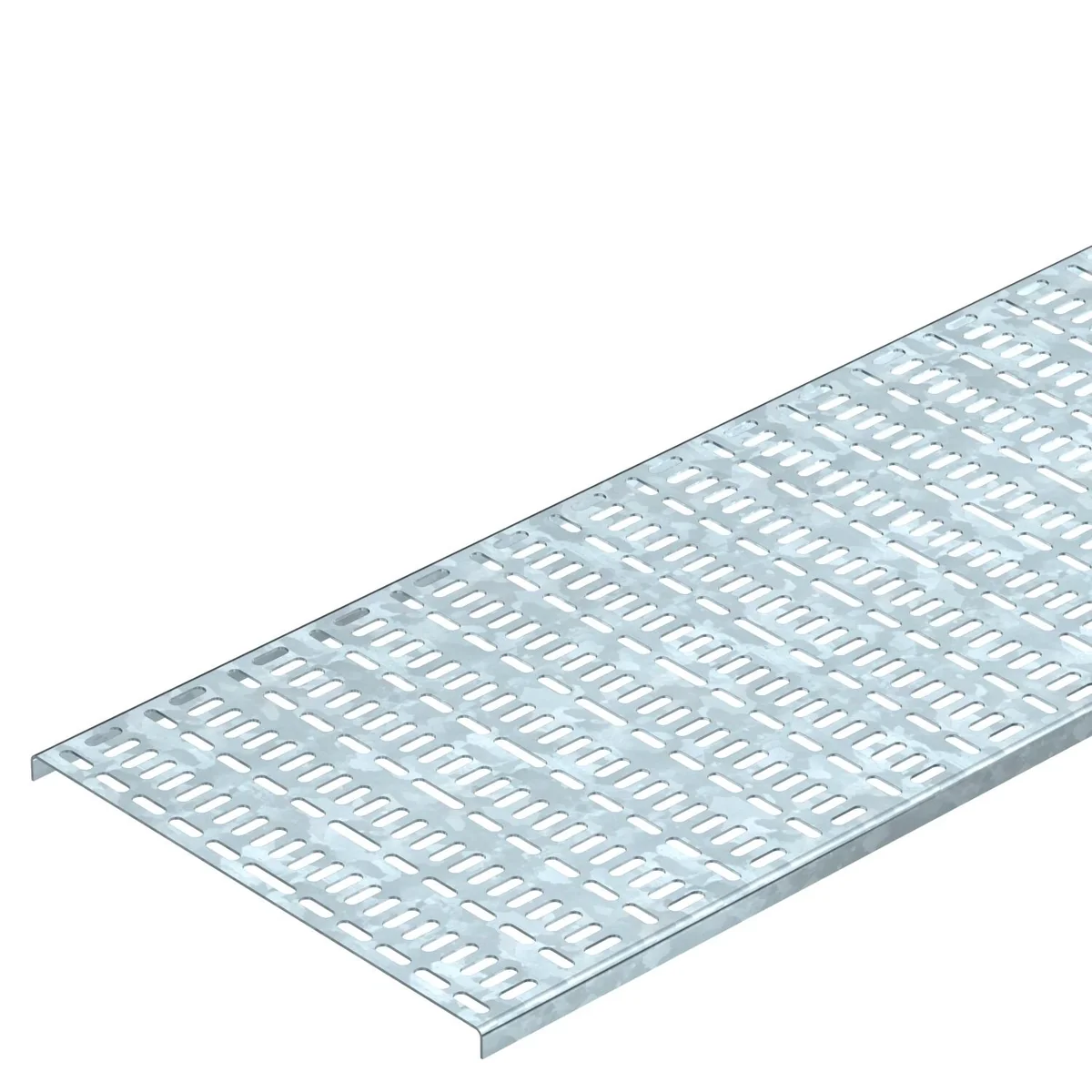

Click on the photo to enlarge

Manufacturer: OBO BETTERMANN

Price:

112,85 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

PKWIU

25.11.23.0

Other technical data

Height

15 mm
Material thickness

1.25 mm
With cover

No
Bottom perforation

Yes
Model

Without connector
Suitable for circuit integrity

No
Surface protection

Hot-dip galvanized
Weight

0.67 kg/m
Safe working load according to IEC 61537 with support spacing 1.0 m

600 N/m

Width

50 mm
Length

2000 mm
Side perforation

No
NATO-mounting holes

Yes
Type of connection

Screwed
Material

Steel
Colour

Zinc
Load test type according to IEC 61537

Type II
Safe working load according to IEC 61537 with support spacing 1.5 m

150 N/m

Manufacturer details

Manufacturer

OBO Bettermann Holding GmbH & Co. KG
Address

58710 Menden Hüingser Ring 52 Niemcy
E-mail

oferty@obo.pl

Bulk packaging

A kind of package	Bez opakowania	Wiązka	Paleta
Quantity	1 pcs.	10 pcs.	630 pcs.
Weight (kg)	1,336	13,360	878,180
Volume (m3)	0,002	0,010	1,360
Width (m)	0,050	0,055	0,800
Length (m)	2,000	2,000	2,000
Depth (m)	0,015	0,090	0,850
