Mesh tray GRM 55/50 6001070
Lokaler Index:
TKM012OBOB
Katalognummer:
6001070
EAN-Code:
4012195430933
Großformatiges Produkt
Preis:
434,08 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung

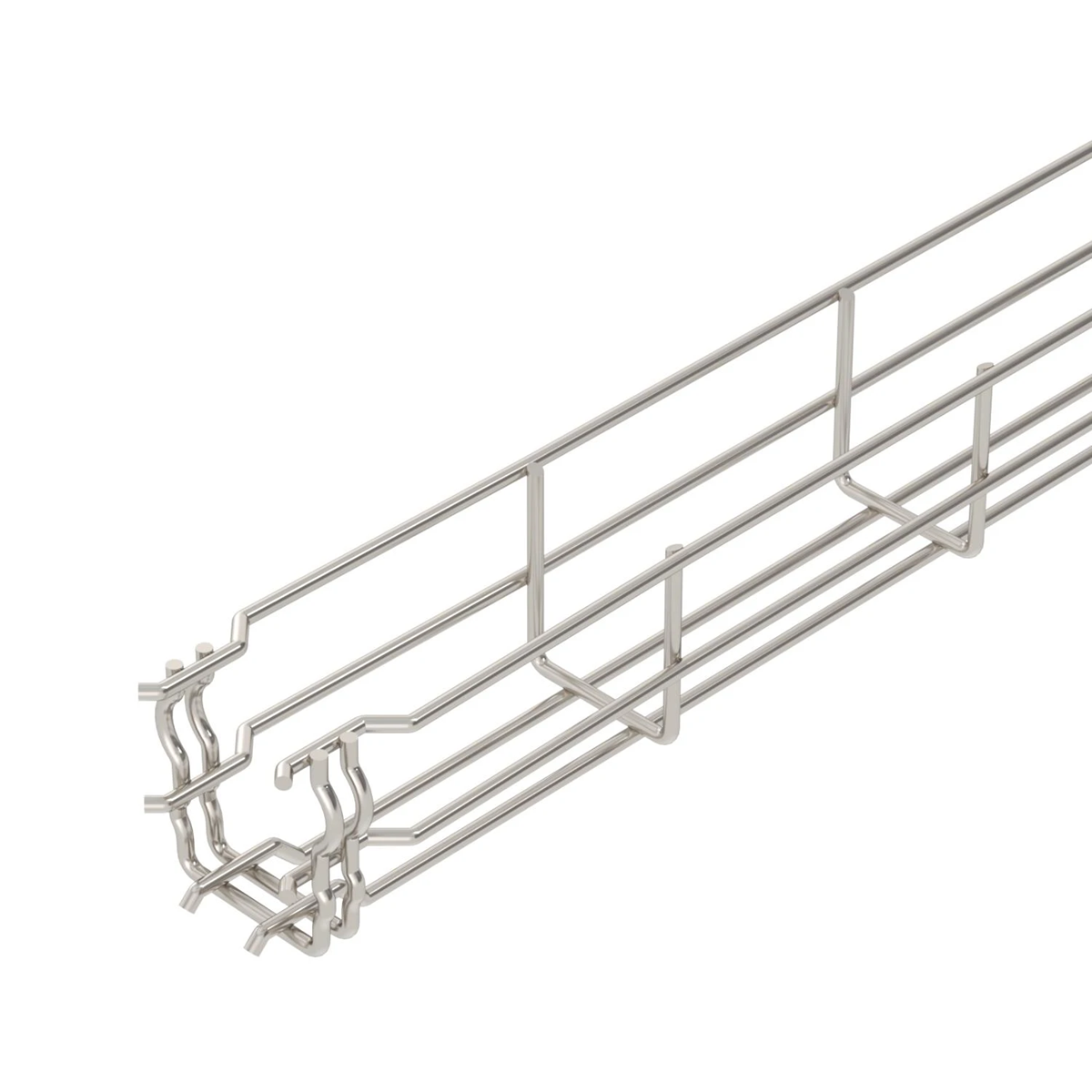

Mesh cable tray GRM 55 50VA4301 made of stainless steel in the shape of a joint with a side height of 55mm. No connecting elements are needed for the mesh cable tray, the elements are inserted one into the other.
Technische Daten
-

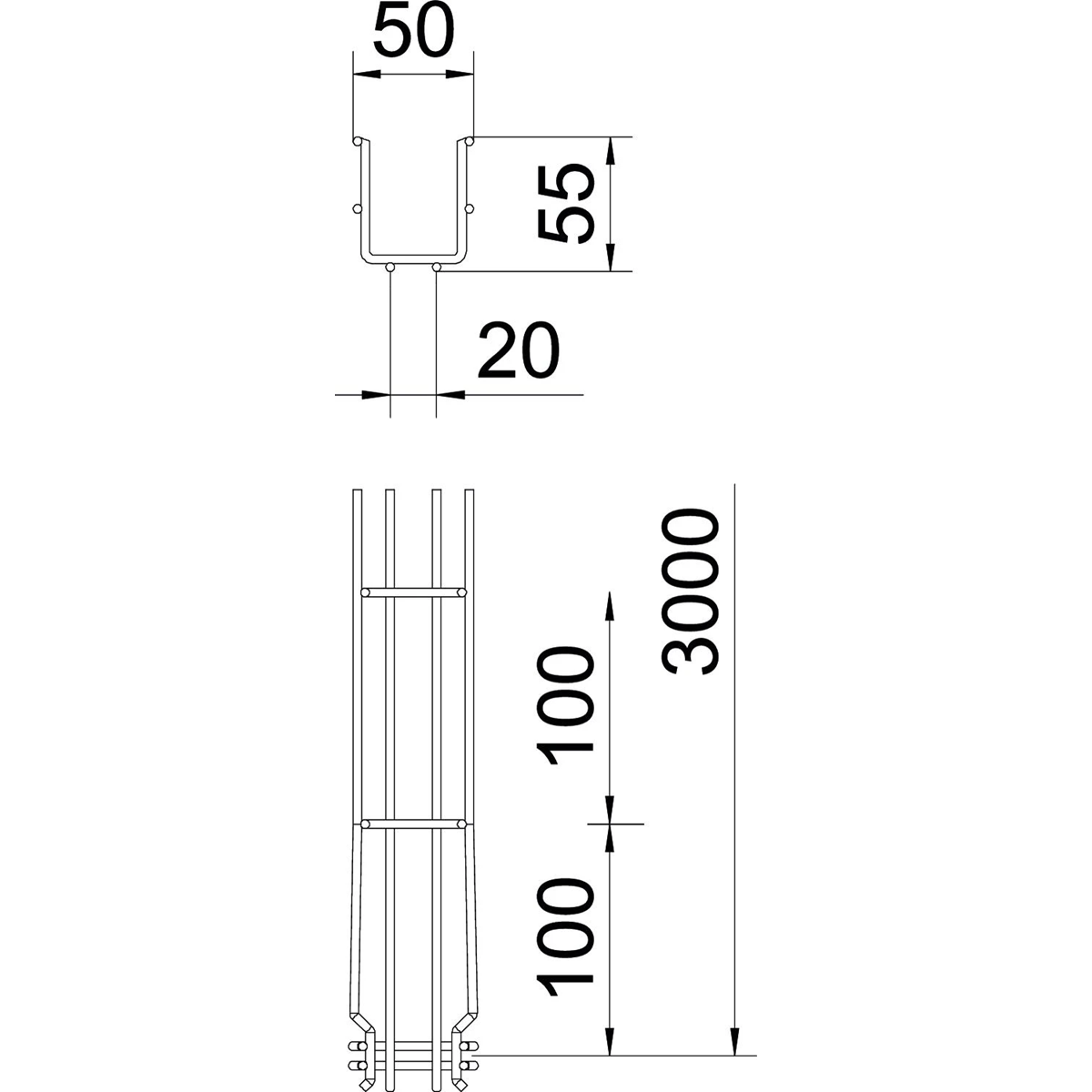

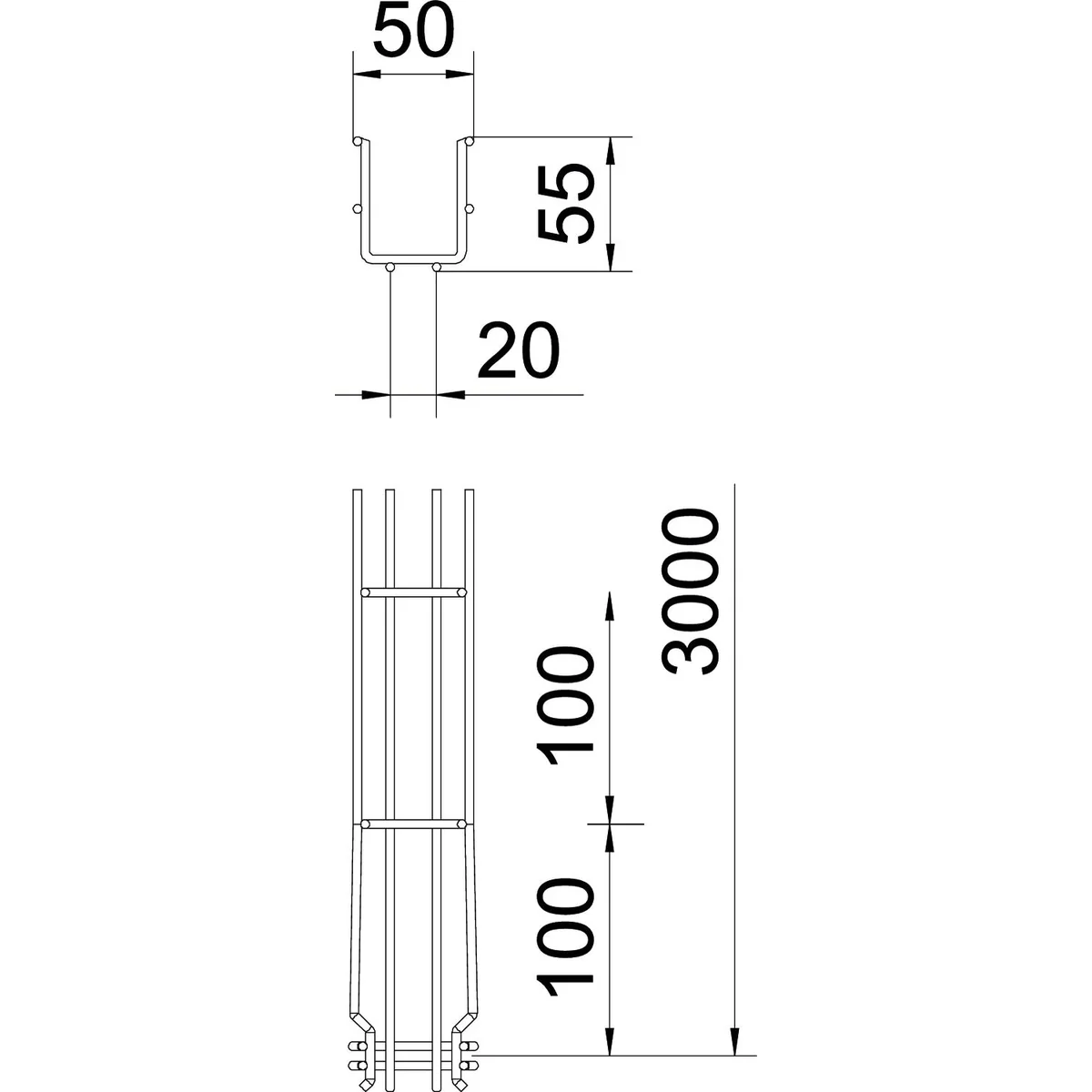

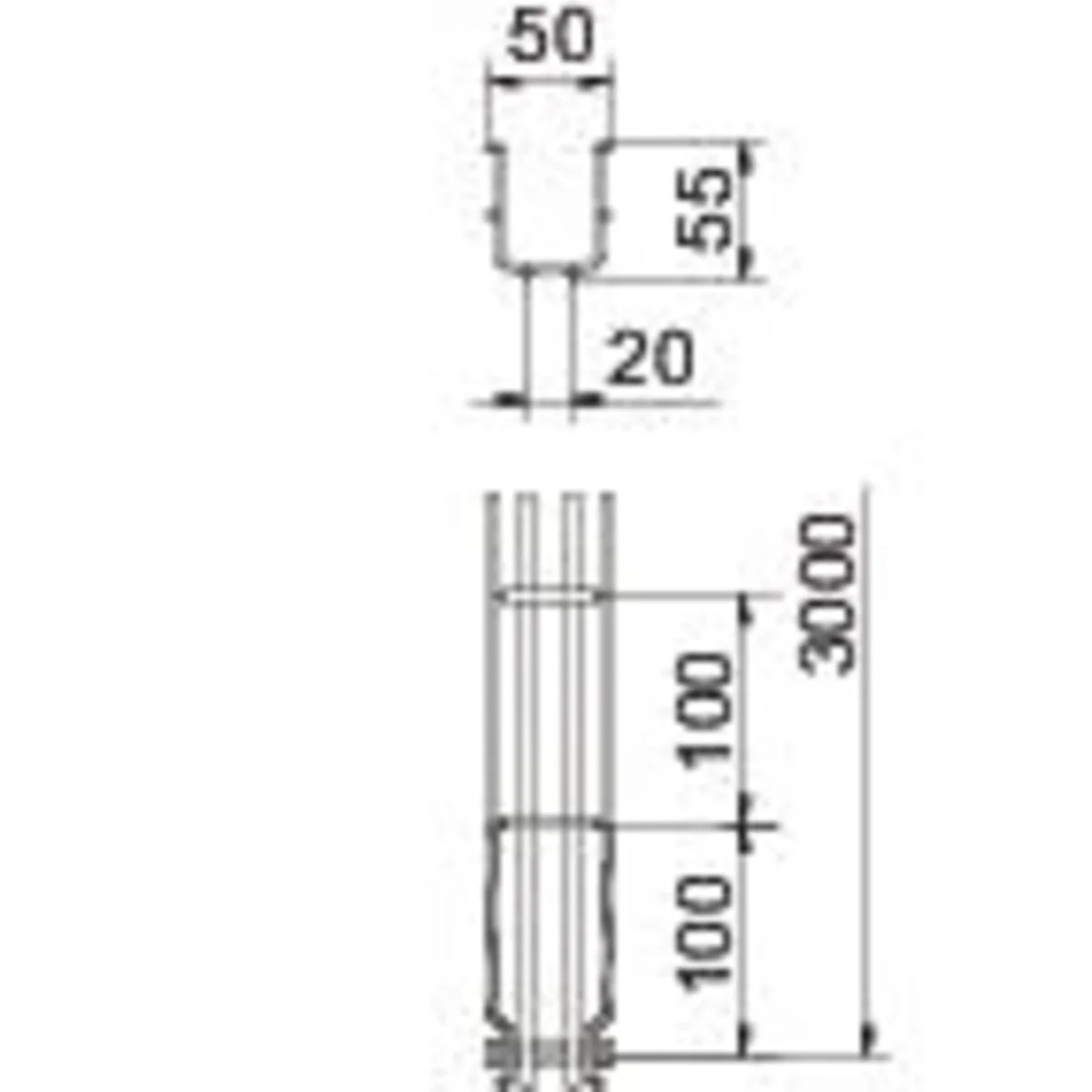

Width [mm]50
-
PKWIU25.99.29.0
-
Height [mm]55
Weitere technische Daten
-
Profile shapeU-shape
-
Height55 mm
-
Diameter longitudinal wire3.9 mm
-
Useful cross section1600 mm²
-
ModelIntegrated connector
-
MaterialStainless steel
-
Surface protectionUntreated
-
Weight0.67 kg/m
-
Possible support spacing1 ... 2.5 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m200 N/m
-
Safe working load according to IEC 61537 with support spacing 2.5 m100 N/m
-
Width50 mm
-
Length3000 mm
-
Diameter transverse wire3.9 mm
-
Integrated partitionNone
-
Suitable for circuit integrityYes
-
Material qualityStainless steel 304 (1.4301)
-
ColourStainless steel
-
Load test type according to IEC 61537Type II
-
Safe working load according to IEC 61537 with support spacing 1.0 m350 N/m
-
Safe working load according to IEC 61537 with support spacing 2.0 m100 N/m
Hersteller-Details
-
HerstellerOBO Bettermann Holding GmbH & Co. KG
-
Adresse58710 Menden Hüingser Ring 52 Niemcy
-
E-Mail
Großpackungen
| Eine Art Paket | Bez opakowania | Paleta |
| Menge | 1 stk. | 242 stk. |
| Gewicht (kg) | 2,011 | 523,162 |
| Volumen (m3) | 0,008 | 2,040 |
| Breite (m) | 0,050 | 0,800 |
| Länge (m) | 3,000 | 3,000 |
| Tiefe (m) | 0,055 | 0,850 |
