Mesh cable tray GRM 55x100mm G 3m 6001442
local index:
TKM021OBOB
Catalog number:
6001442
EAN code:
4012196858552
Large-size product
79
43
zł
gross / pcs.
(including VAT 23%)
Availability
Dostępne 3 657 pcs.
Check
Odbiór!
Odbierz w godzinę!
Details
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

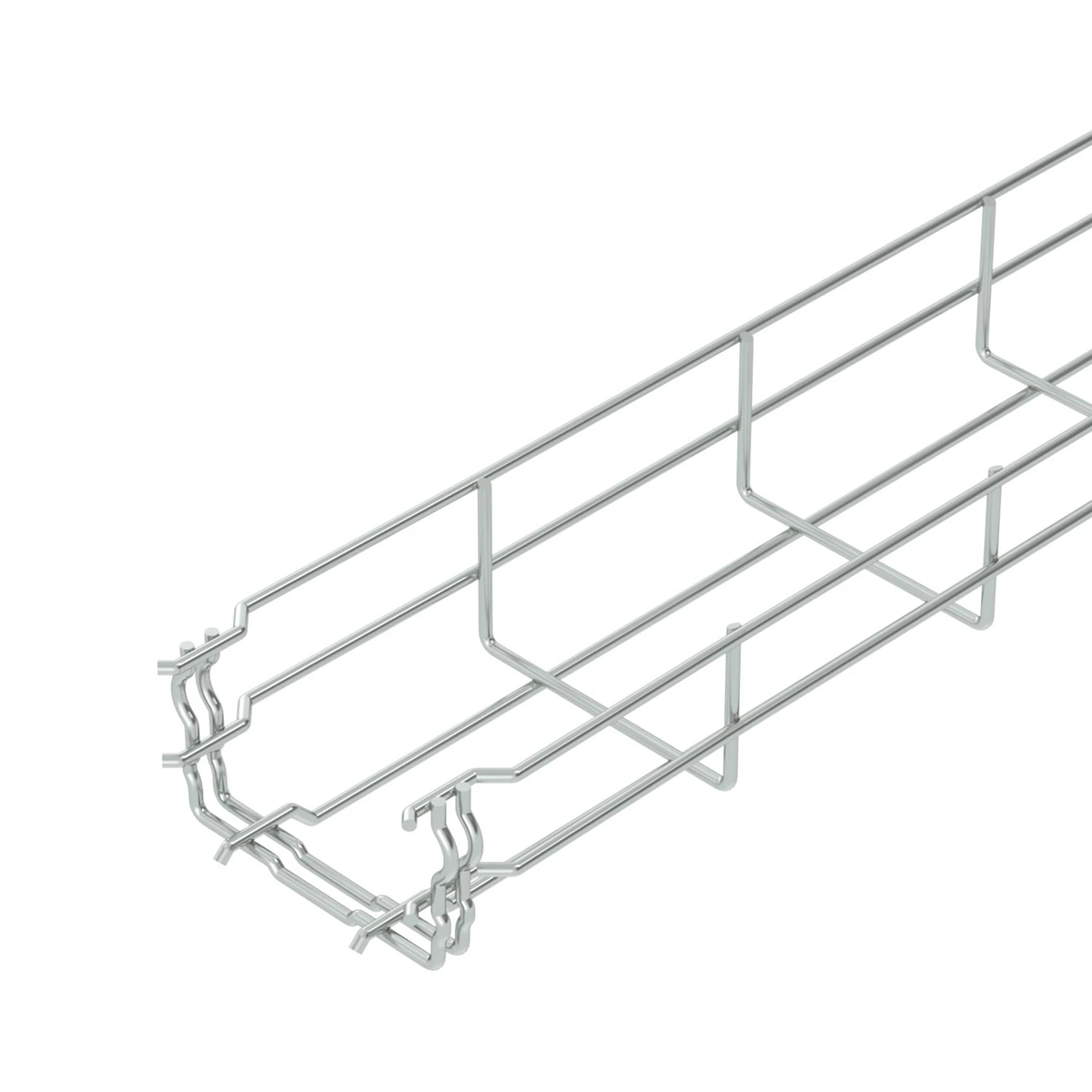

Mesh cable tray GRM 55x100mm G 3m

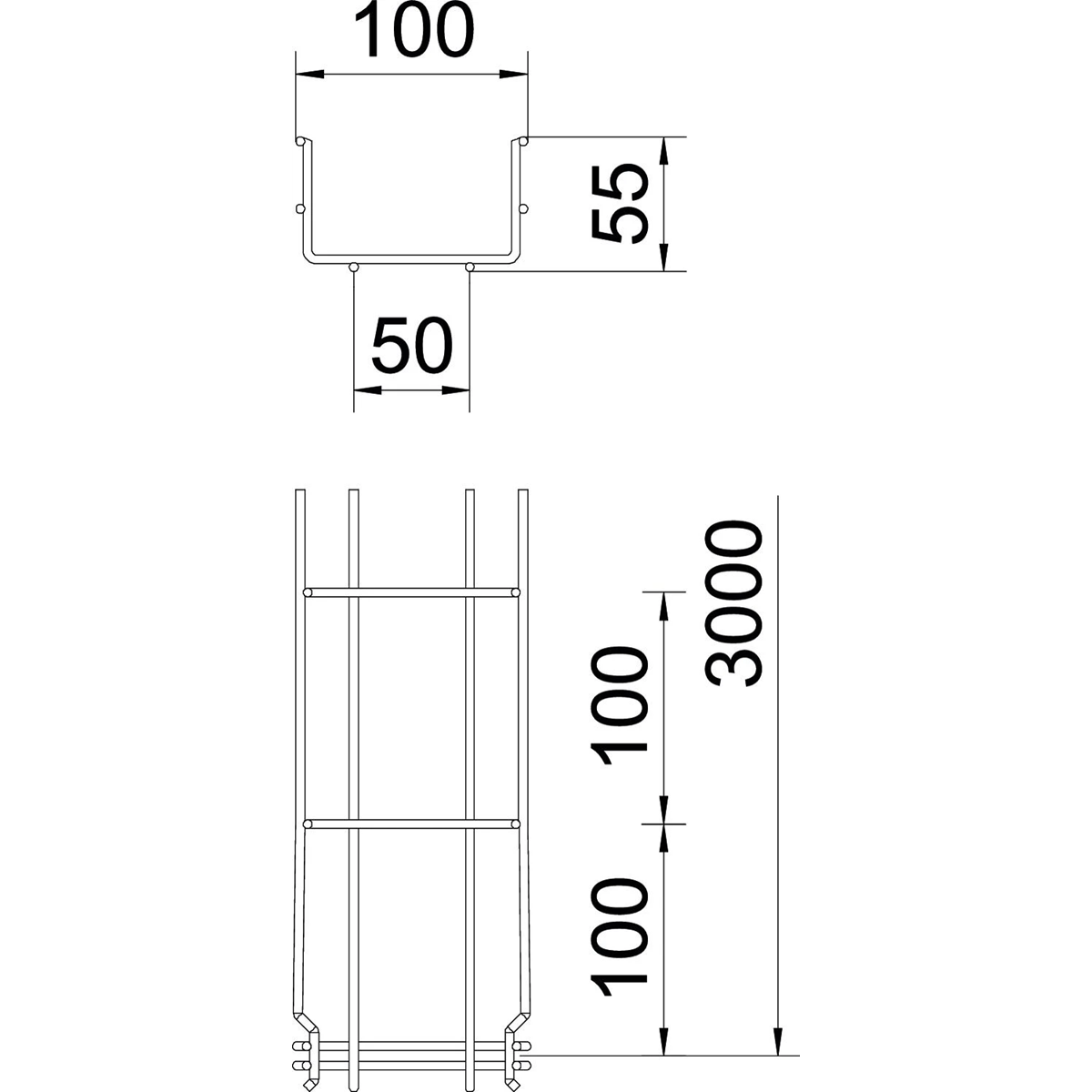

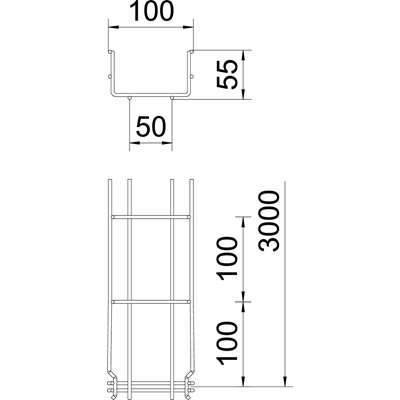

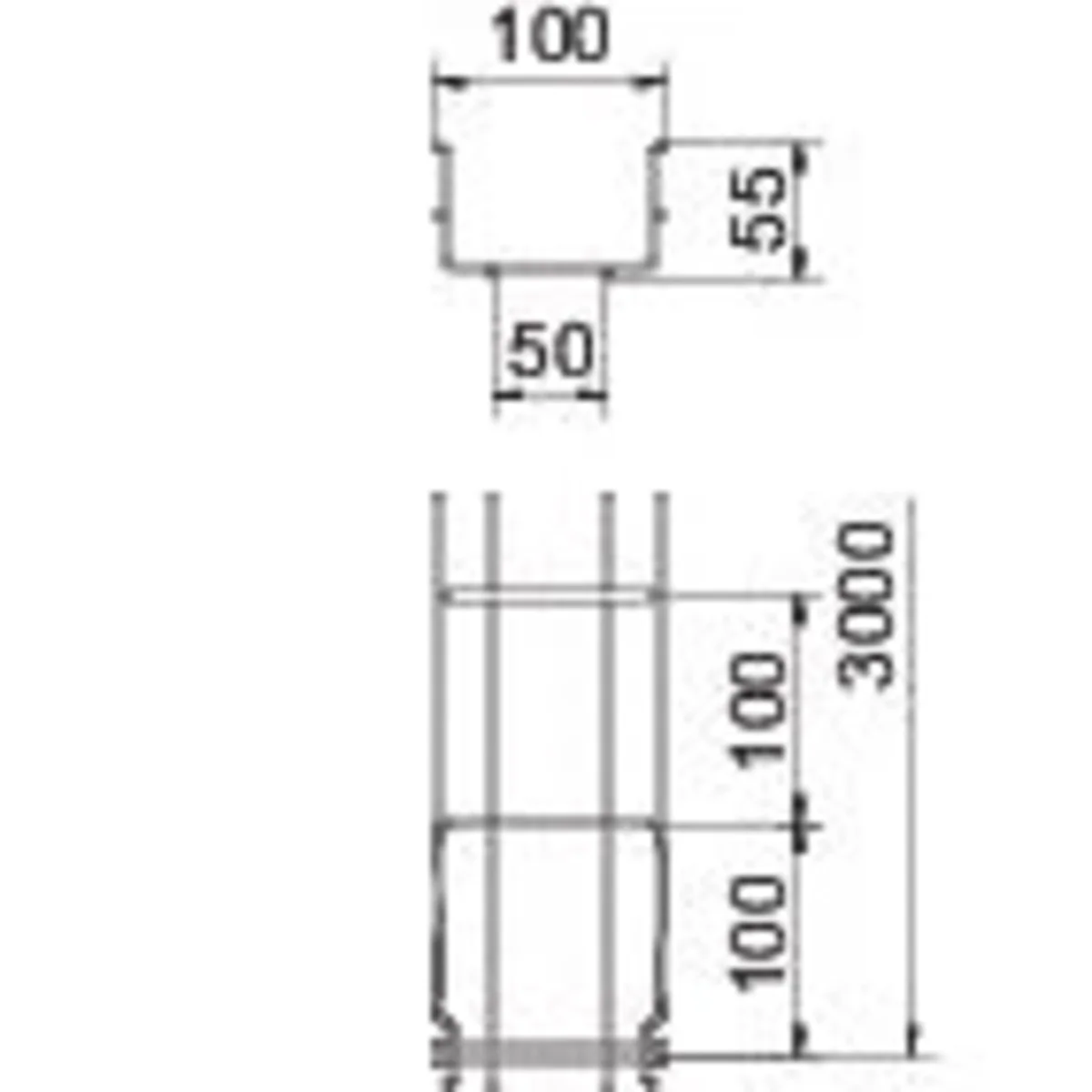

Technical data
-
Length [mm]3000
-
Height [mm]55
-
Width [mm]100
-
PKWIU25.99.29.0
Other technical data
-
Profile shapeU-shape
-
Height55 mm
-
Diameter longitudinal wire3.9 mm
-
Useful cross section4000 mm²
-
ModelIntegrated connector
-
MaterialSteel
-
ColourZinc
-
Load test type according to IEC 61537Type II
-
Safe working load according to IEC 61537 with support spacing 1.0 m350 N/m
-
Safe working load according to IEC 61537 with support spacing 2.0 m100 N/m
-
Width100 mm
-
Length3000 mm
-
Diameter transverse wire3.9 mm
-
Integrated partitionNone
-
Suitable for circuit integrityYes
-
Surface protectionGalvanic/electrolytic zinc plated
-
Weight0.72 kg/m
-
Possible support spacing1 ... 2.5 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m200 N/m
-
Safe working load according to IEC 61537 with support spacing 2.5 m100 N/m
Manufacturer details
-
ManufacturerOBO Bettermann Holding GmbH & Co. KG
-
Address58710 Menden Hüingser Ring 52 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Bez opakowania | Paleta |
| Quantity | 1 pcs. | 132 pcs. |
| Weight (kg) | 2,161 | 321,752 |
| Volume (m3) | 0,016 | 2,040 |
| Width (m) | 0,100 | 0,800 |
| Length (m) | 3,000 | 3,000 |
| Depth (m) | 0,055 | 0,850 |
