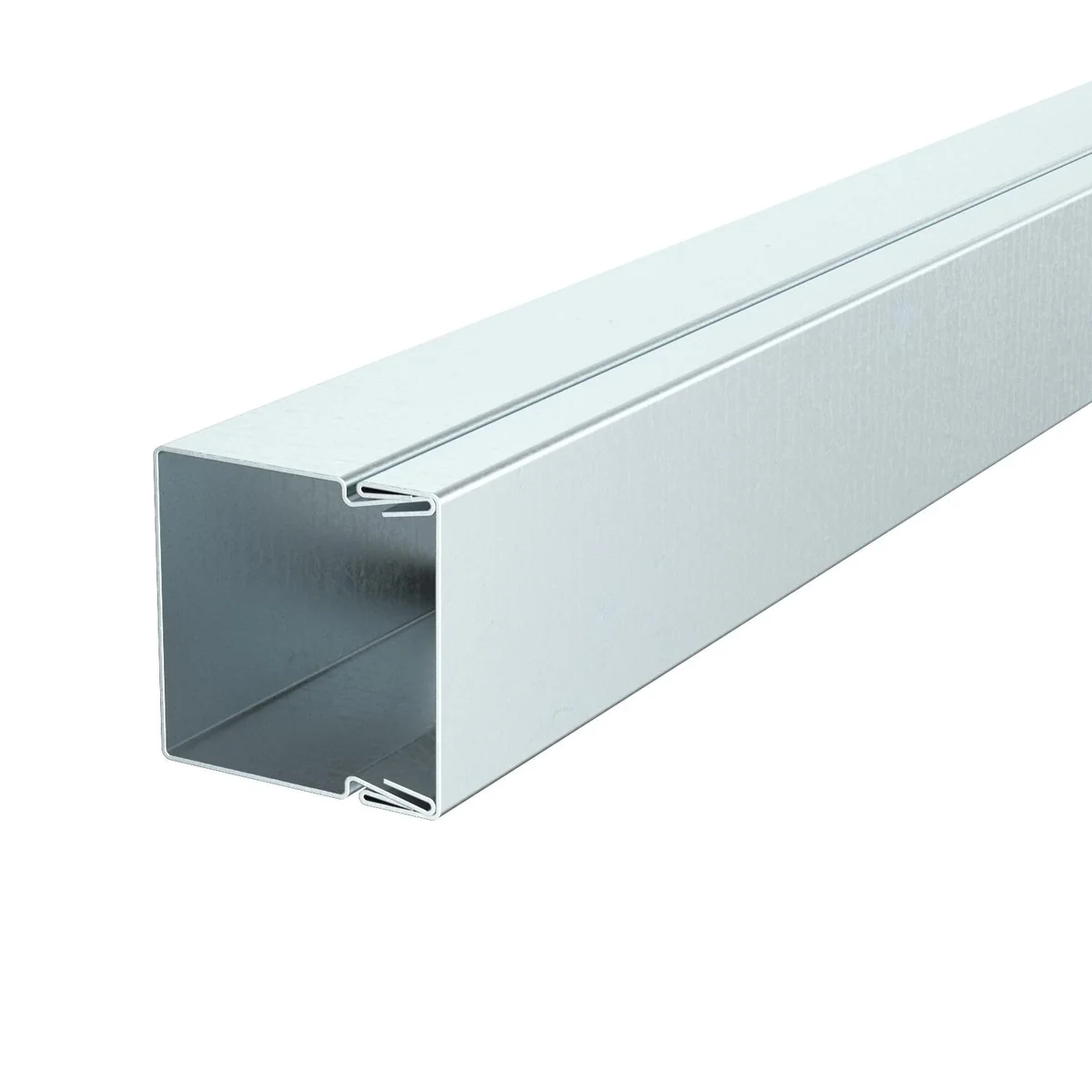

LKM30030FS Installation channel with perforated bottom 6246985

local index:
TKP091OBOB
Catalog number:
6246985
EAN code:
4012196746866
Manufacturer: OBO BETTERMANN
Price:
62,87 zł
gross / m.
(including VAT 23%)
2 weeks
On request
Quantity m.
(multiplicity:
16
)
Add to inquiry
Add to clipboard
Print

Technical data

Other technical data

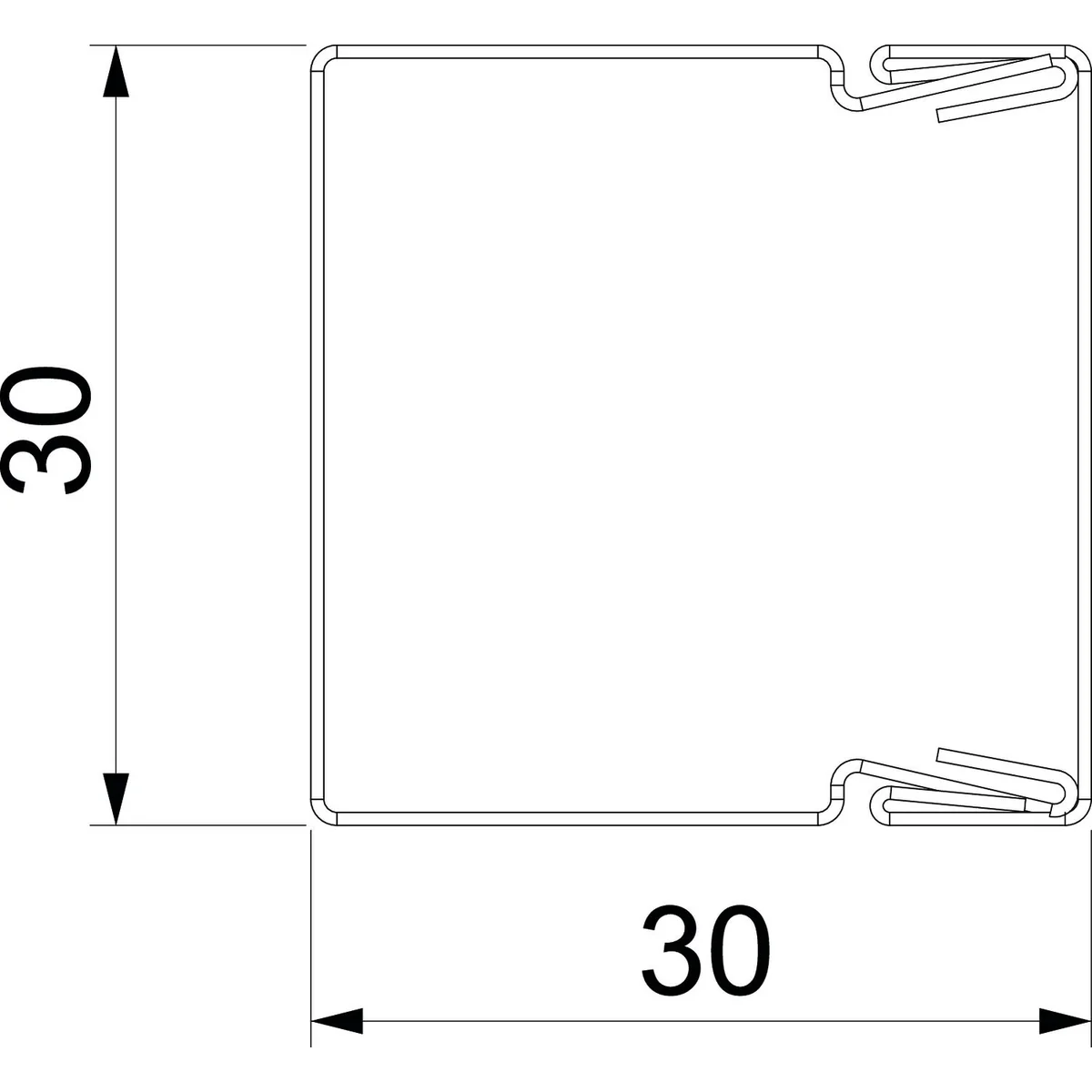

  • Height
    30 mm
  • Length
    2000 mm
  • Material
    Steel
  • Anti-bacterial treatment
    No
  • Suitable for circuit integrity
    No
  • Transparent
    No
  • Number of plug-in partitions
    0
  • Cover model
    Loose
  • With protective foil
    No
  • Delivery on roll
    No
  • Impact strength
    IK10
  • Width
    30 mm
  • Useful cross section
    805 mm²
  • Halogen free
    Yes
  • Surface protection
    Continuously galvanized
  • Colour
    Zinc
  • Number of permanent partitions
    0
  • Type of fastening
    Bottom perforation
  • With cable fixing clip
    No
  • With duct connector
    No
  • Degree of protection (IP)
    IP30
  • Operating temperature
    -5 ... 90 °C

Manufacturer details

  • Manufacturer
    OBO Bettermann Holding GmbH & Co. KG
  • Address
    58710 Menden Hüingser Ring 52 Niemcy
  • E-mail

Bulk packaging

A kind of package Bez opakowania Karton Paleta
Quantity 2 m. 16 m. 320 m.
Weight (kg) 1,237 10,470 257,400
Volume (m3) 0,002 0,014 1,771
Width (m) 0,030 0,111 0,800
Length (m) 2,000 2,012 2,050
Depth (m) 0,030 0,062 1,080
