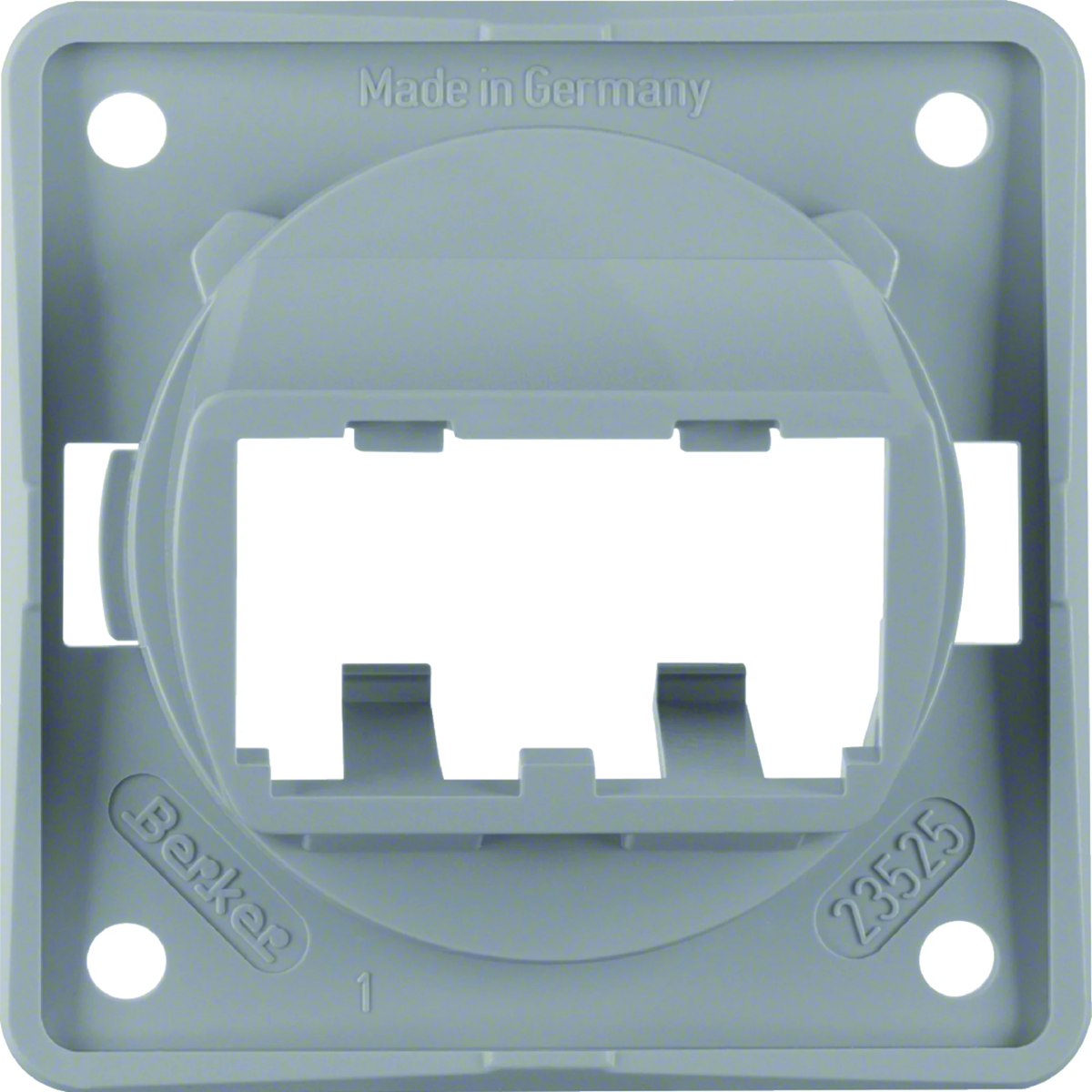

INTEGRO FLOW Carrier plate for 2 MINI-COM modules glossy grey 945592507

local index:
TNL014BERK
Catalog No:
945592507
EAN code:
4011334241102
Manufacturer: BERKER
Material: Thermoplastic
Surface: Gloss
Family: INTEGRA FLOW
Price:
3,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Carrier plate for 2 MINI-COM modules, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture in the sanitary industry and wherever a compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.

Connections:

  • with an exit angle of 30°,< /li>
  • for Mini-COM modules with S-Video socket,
  • for BNC connector module,
  • for Mini-Com D-Sub 15-pin plugs,
  • for Mini-COM modules with 3.5 mm stereo connection jack,
  • for Mini-COM modules for speaker cables / "banana" connection sockets,
  • for Mini-COM modules COM with F-type plug,
  • for Chinch connector module,
  • for optical fiber socket,
  • for MINI-Jack´s cat.3, cat. 5, cat.5e and cat.6.

Instructions:

  • use in combination with a cover is not possible.< /li>

Technical data

  • Material
    Thermoplastic
  • Family
    INTEGRA FLOW
  • Surface
    Gloss
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Basic element
  • Support ring
    Yes
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    7038
  • Type of fastening
    Mounting with screw
  • With buses/couplings
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    0 mm
  • Utilization
    Other
  • With dust cover
    No
  • Outlet direction
    Inclined
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Number of modules (module system)
    2
  • Suitable for number of connectors
    2
  • Luster terminal
    No
  • Device width
    55.5 mm
  • Device depth
    32.2 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 120 pcs. 3840 pcs.
Weight (kg) 0,009 0,160 2,250 91,992
Width (m) 0,056 0,130 0,300 0,800
Length (m) 0,019 0,060 0,225 1,050
Depth (m) 0,056 0,200 0,400 1,200
