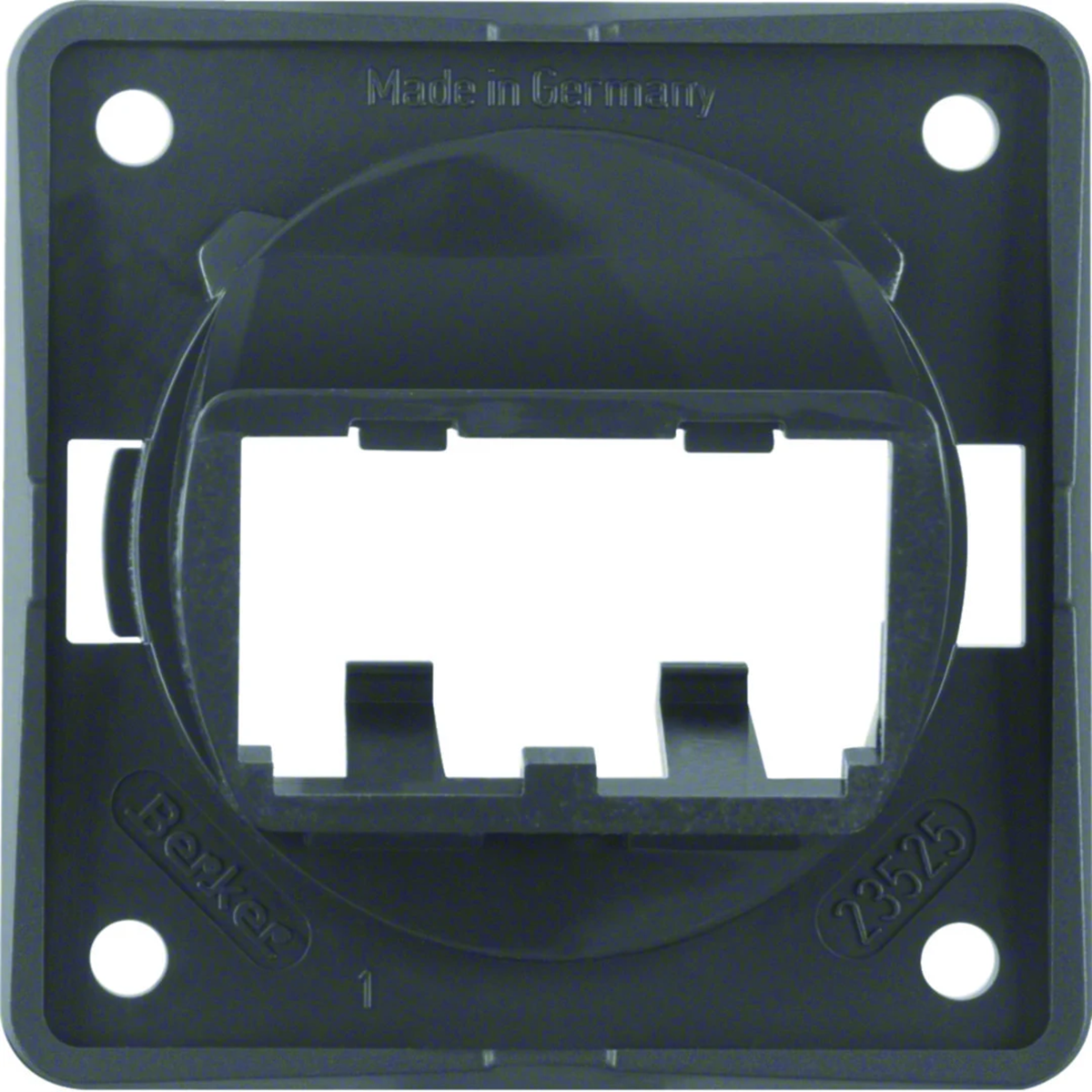

INTEGRO FLOW Carrier plate for 2 MINI-COM modules glossy anthracite 945592505

Внутрішній артикул:
TNL013BERK
№ каталоговий:
945592505
Код EAN:
4011334241096
Виробник: BERKER
Material: Thermoplastic
Surface: Gloss
Family: INTEGRA FLOW
Ціна:
4,08 €
gross / шт.
(з ПДВ 23%)
Доставка за 3 години
до 10 тижнів (робочих днів)
Самовивіз через 1 год
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Опис товару

Carrier plate for 2 MINI-COM modules, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture in the sanitary industry and wherever a compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.

Connections:

  • with an exit angle of 30°,< /li>
  • for BNC plug connector module,
  • for Chinch plug connector module,
  • for Mini-COM modules with type F plug,
  • for Mini-Com D-Sub 15-pin plugs,
  • for Mini-COM modules for speaker cables / "banana" connection sockets,
  • for Mini-COM modules with 3.5 mm stereo connection socket ,
  • for Mini-COM modules with S-Video socket,
  • for optical fiber socket,
  • for MINI-Jack´s cat.3, cat. 5, cat.5e and cat.6.

Instructions:

  • use in combination with a cover is not possible.< /li>

Технічні дані

  • Material
    Thermoplastic
  • Family
    INTEGRA FLOW
  • Surface
    Gloss
  • PKWIU
    27.12.40.0

Інші технічні дані

  • Assembly arrangement
    Basic element
  • Support ring
    Yes
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    7021
  • Type of fastening
    Mounting with screw
  • With buses/couplings
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    0 mm
  • Utilization
    UAE/IAE (ISDN)
  • With dust cover
    No
  • Outlet direction
    Inclined
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • Transparent
    No
  • Number of modules (module system)
    2
  • Suitable for number of connectors
    2
  • Luster terminal
    No
  • Device width
    55.5 mm
  • Device depth
    32.2 mm

Інформація про виробника

  • Виробник
    Berker GmbH & Co. KG.
  • Адреса
    DE 66440 Blieskastel Zum Gunterstal Niemcy
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Karton Pakiet Paleta
Кількість 10 шт. 120 шт. 3840 шт.
Вага (кг) 0,090 1,080 34,560
Ширина (м) 0,130 0,300 0,800
Довжина (м) 0,060 0,220 1,050
Глибина (м) 0,200 0,400 1,200
