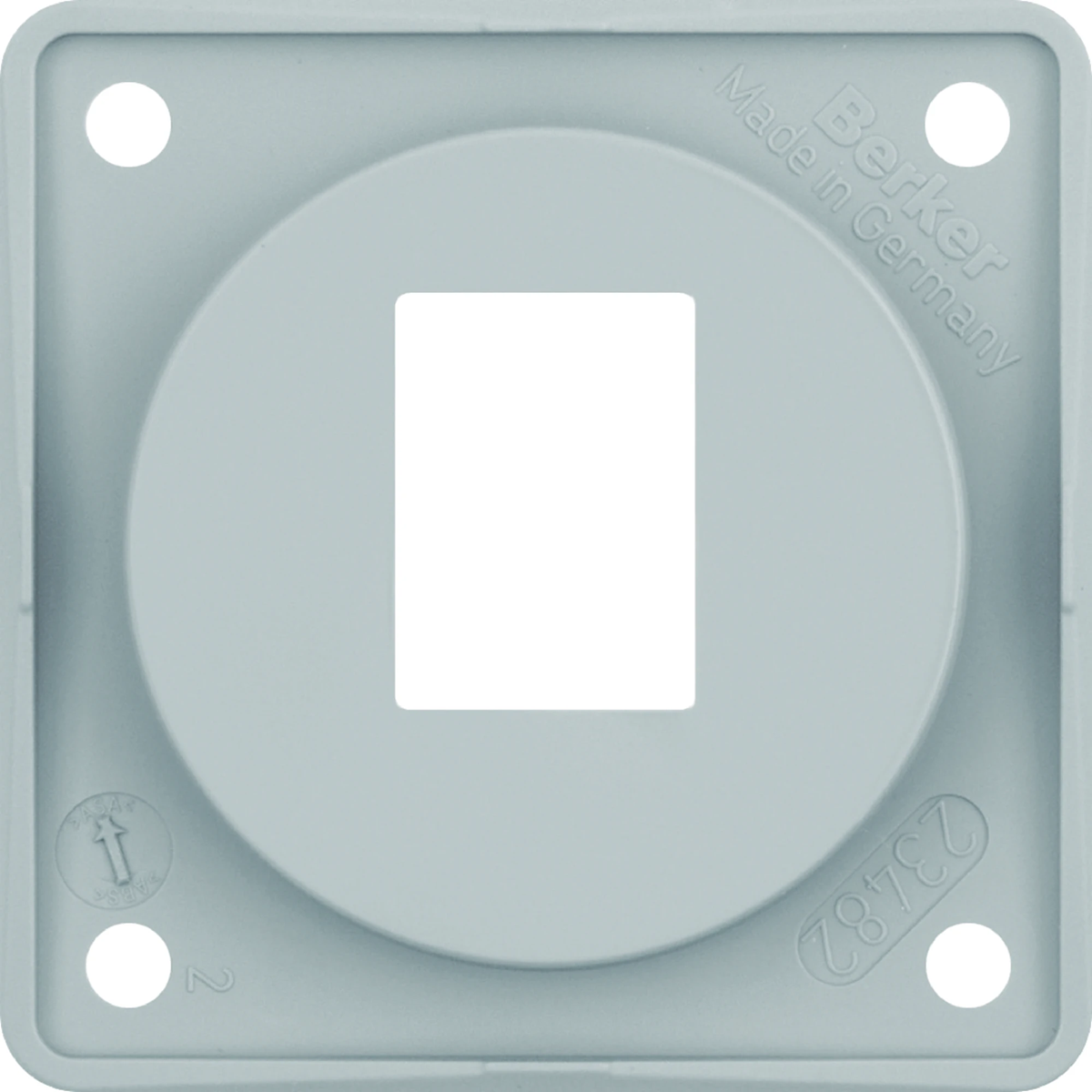

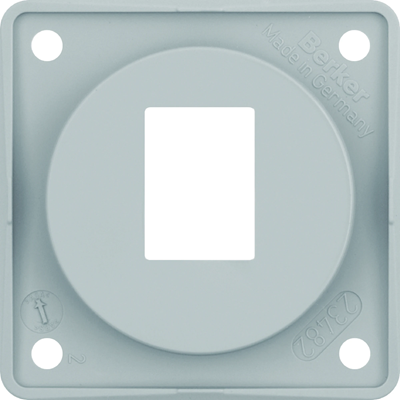

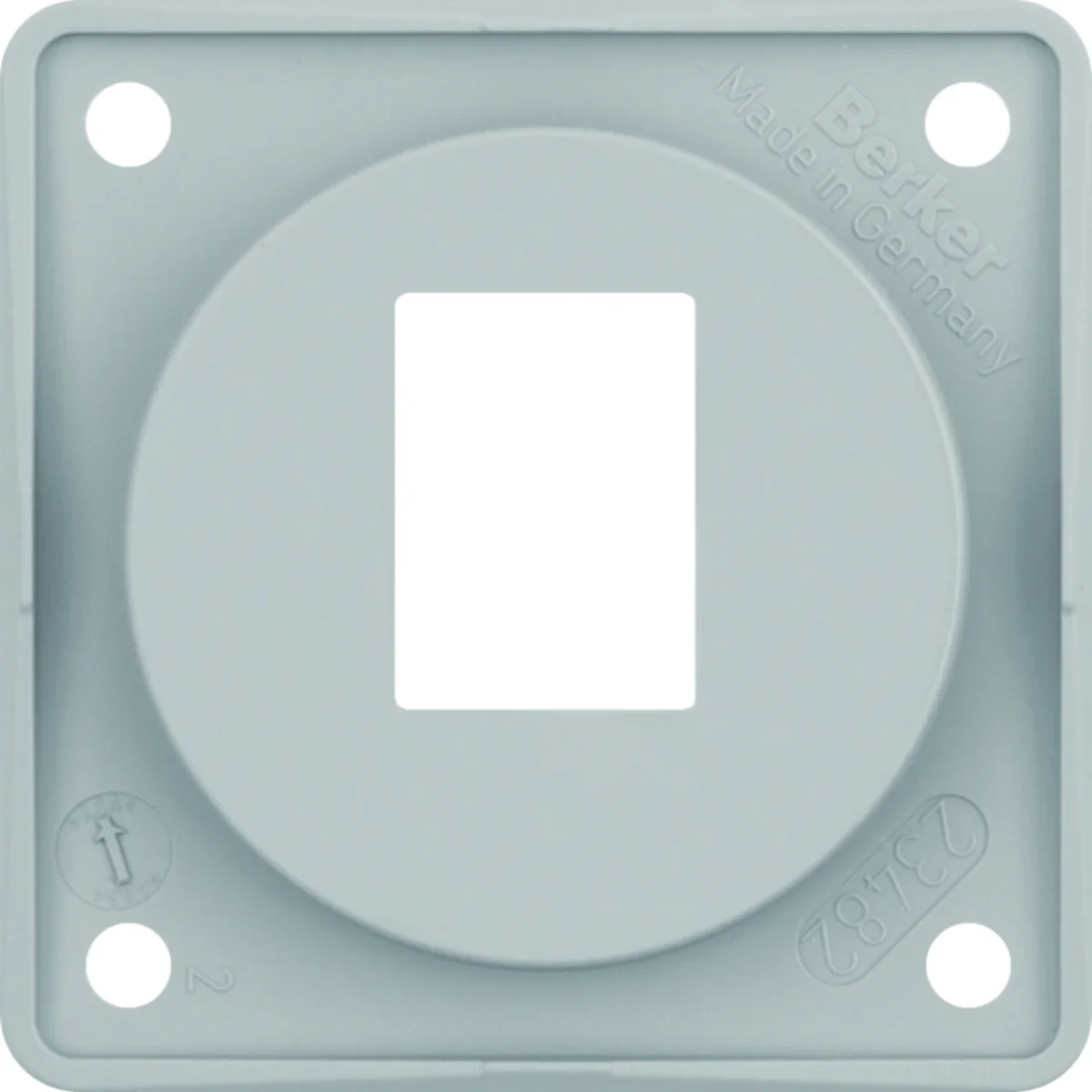

INTEGRO FLOW 1-gang carrier plate for AMP modular sockets, glossy grey 945572507

Name: INTEGRO FLOW 1-gang carrier plate for AMP modular sockets, glossy grey
Brand: BERKER
SKU: TNL010BERK
Price: 15.10 PLN
Availability: BackOrder

Index local:

TNL010BERK

Numéro de catalogue:

945572507

Code EAN:

4011334241072

INTEGRO FLOW 1-gang carrier plate for AMP modular sockets, glossy grey

Cliquer sur la photo pour l'agrandir

Producteur: BERKER

Material: Thermoplastic

Surface: Gloss

Family: INTEGRA FLOW

Voir la description complète

Prix:

15,10 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 10 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Single mounting plate for AMP modular sockets, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture, in the sanitary industry and wherever compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.

Connections:

to AMP series 110 Connect modular socket Connect kat .3, cat.5, cat.5e and cat.6.

Instructions:

use in combination with cover is not possible.

Données techniques

Material

Thermoplastic
Family

INTEGRA FLOW
Height [mm]

20.7

Surface

Gloss
Width [mm]

14.9
PKWIU

27.12.40.0

Autres données techniques

Assembly arrangement

Basic element
Support ring

Yes
With hinged lid

No
Imprintable label

Without indication field
Mounting method

Flush-mounted
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Glossy
RAL-number (similar)

7038
Type of fastening

Mounting with screw
With buses/couplings

No
Isolated connections

No
Luster terminal

No
Suitable for degree of protection (IP)

IP20
Device width

55.5 mm
Device depth

19.3 mm

Utilization

Modular Jack
With dust cover

No
Outlet direction

Straight
With imprint

No
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

Grey
Transparent

No
Number of modules (module system)

1
Suitable for number of connectors

1
With strain relief

No
With lighting

No
Impact strength

IK05
Device height

55.5 mm
Min. depth of built-in installation box

0 mm

Détails du fabricant

Producteur

Berker GmbH & Co. KG.
Adresse

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Pakiet	Paleta
Quantité	10 pcs.	120 pcs.	3840 pcs.
poids (kg)	0,145	2,288	98,216
Largeur (m)	0,140	0,300	0,800
Longueur (m)	0,060	0,220	1,050
Profondeur (m)	0,200	0,400	1,200
