Insulation piercing clamp SL11.118 SL11.118
local index:
TOC001ENST
Catalog No:
SL11.118
EAN code:
6418677403538
Price:
7,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

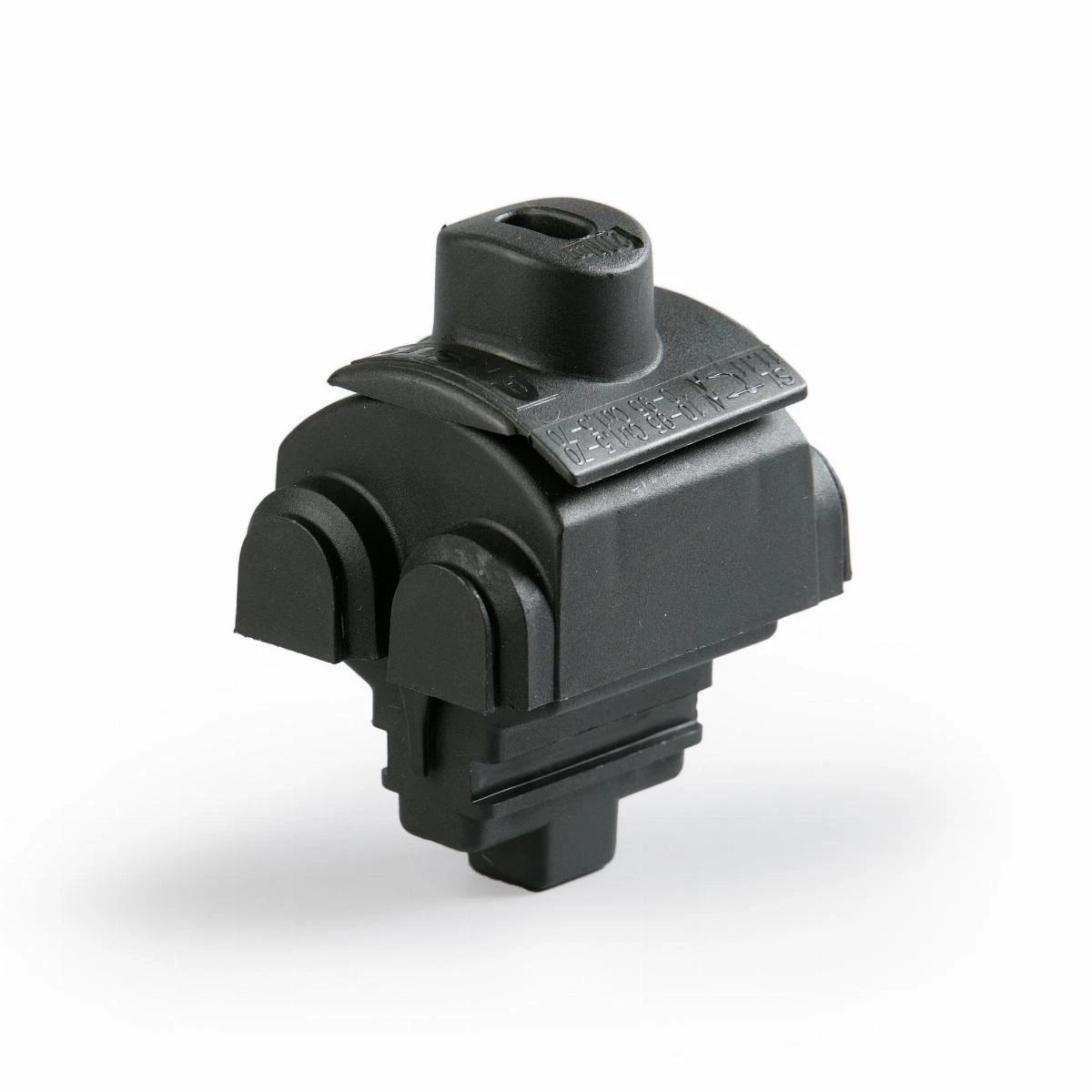

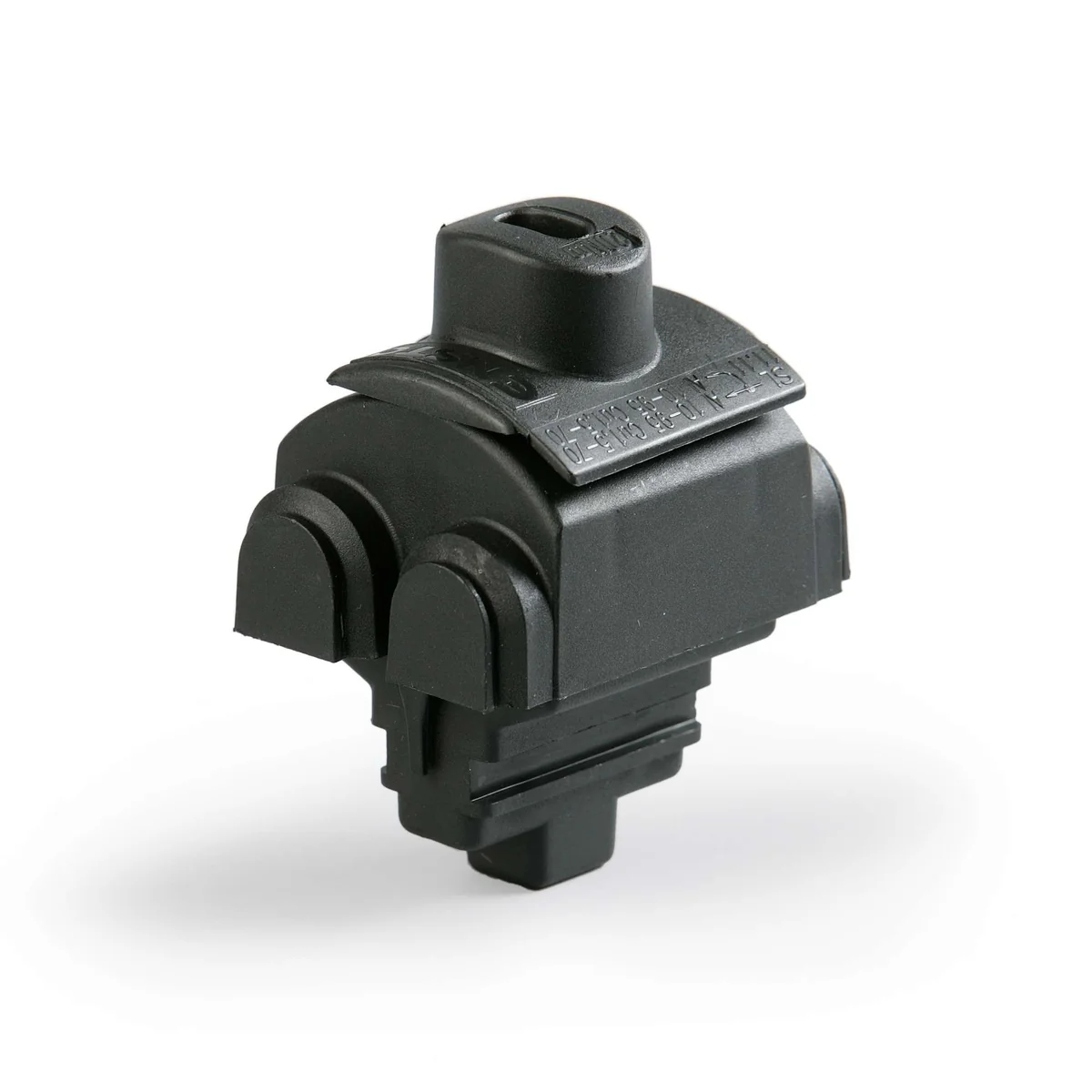

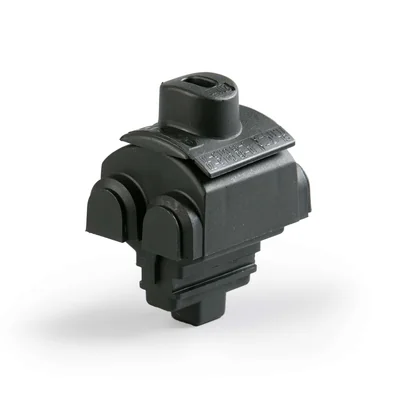

Insulation piercing clamp
Al 10-95mm² or Cu 1.5-70mm²
Universal insulation piercing clamp for all combinations of aluminum or copper main and drop line connections. The clamp is adapted to wires insulated with cross-linked polyethylene.
Core diameter: 3 … 16 mm
Technical data
-
ScrewM8
-
Main conductor [mm2]1.5-95
Other technical data
-
Nominal cross section main conductor, SE1.5 ... 95 mm²
-
Nominal cross section branch conductor, SE/RE1.5 ... 95 mm²
-
Material main conductorAluminium/copper
-
Terminal insulatedYes
-
Clamping channel opening branch conductorClosed
-
Type of connectionInsulation piercing connector IPC
-
Nominal cross section main conductor, SM1.5 ... 95 mm²
-
Nominal cross section branch conductor, SM/RM1.5 ... 95 mm²
-
Material branch conductorAluminium/copper
-
Clamping channel opening main conductorClosed
-
Surface protectionTinned
Manufacturer details
-
ManufacturerENSTO POL SP.Z O.O.Paweł Niemczyk
-
Address83-010 UL.STAROGARDZKA 17A
-
E-mail
-
Tax identification number5830010591
