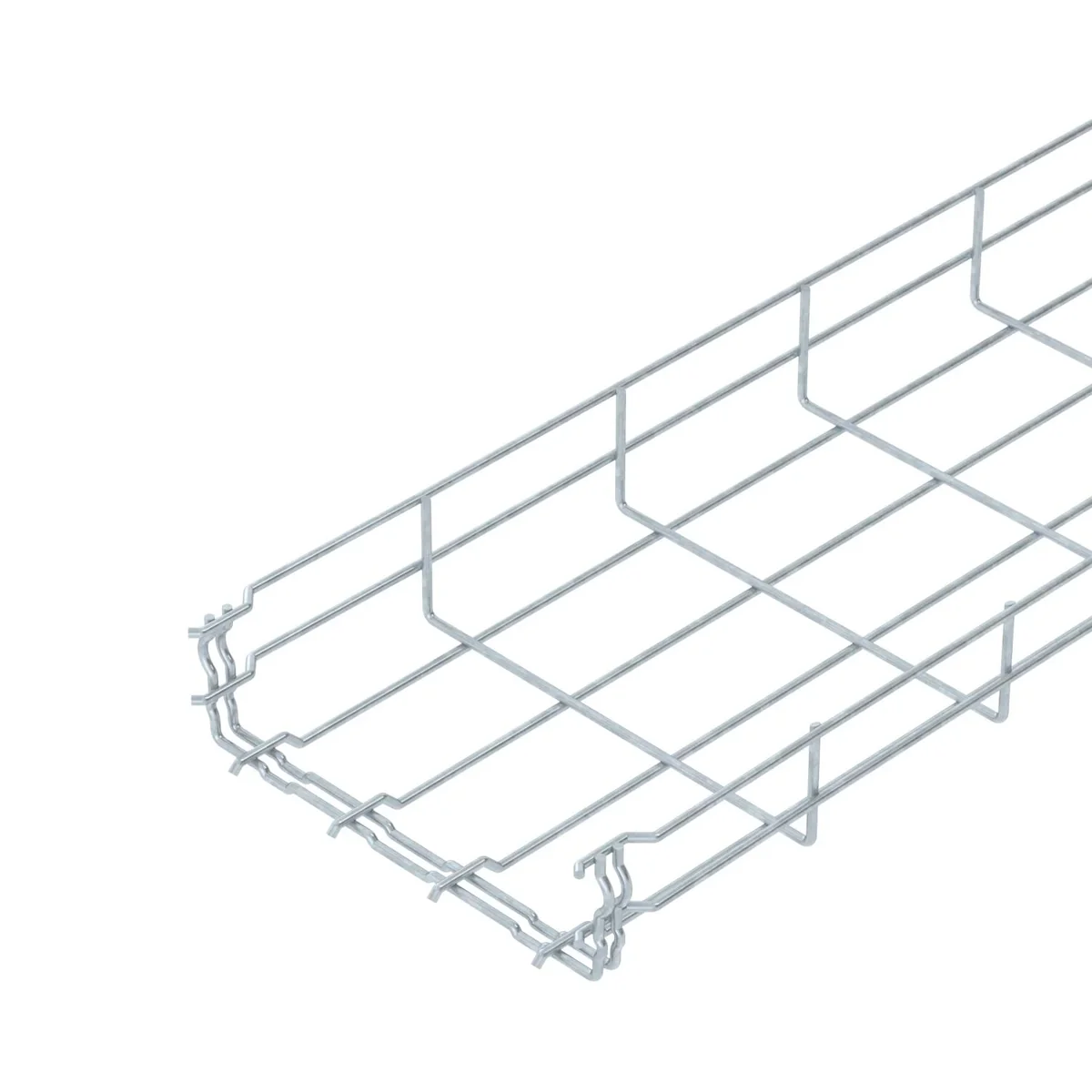

GRM 55 200 FT GRM Mesh Tray 6001420
local index:
TKM011OBOB
Catalog number:
6001420
EAN code:
4012196814930
Manufacturer:
OBO BETTERMANN
Price:
182,21 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
-
PKWIU25.99.29.0
Other technical data
-

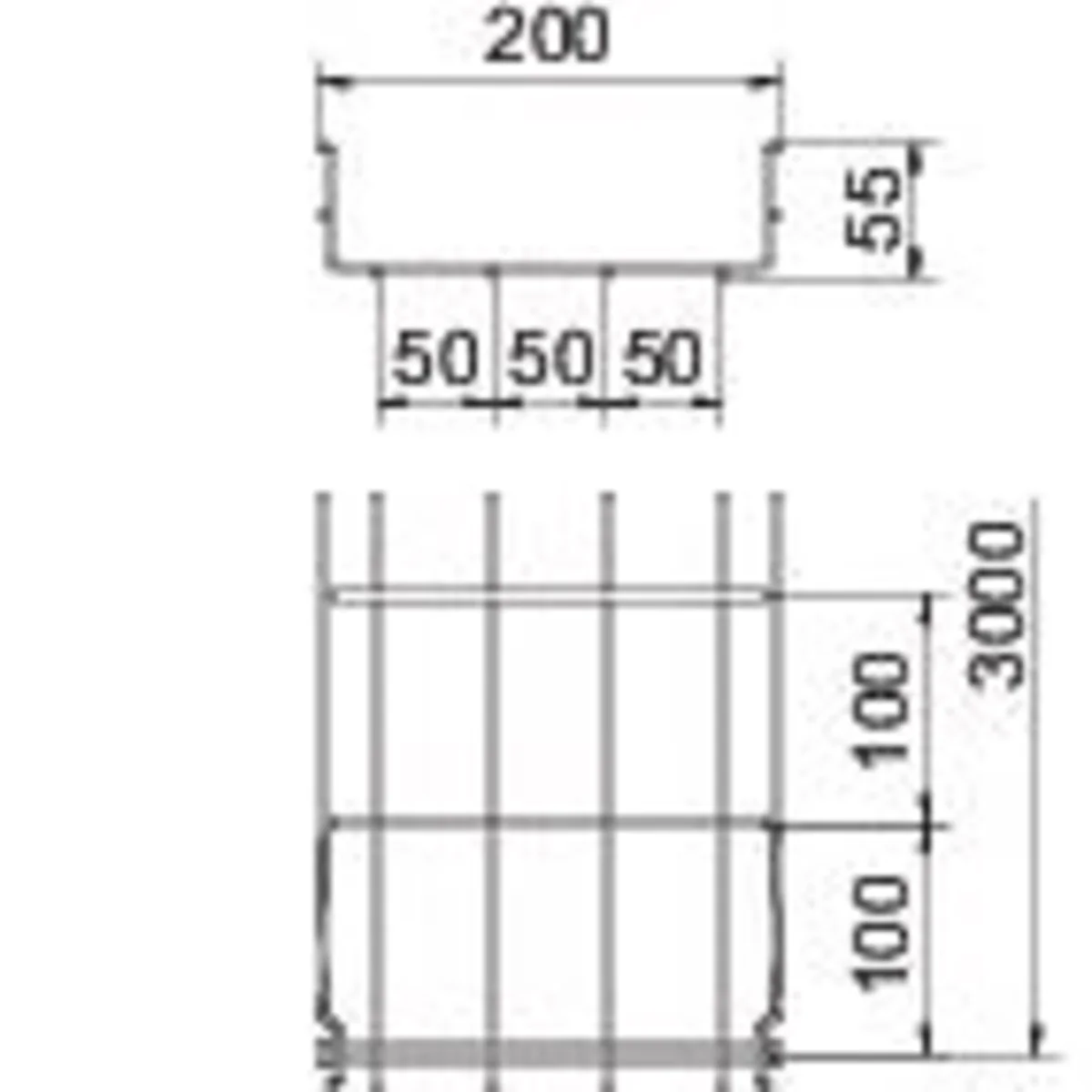

Profile shapeU-shape
-
Height55 mm
-
Diameter longitudinal wire3.9 mm
-
Useful cross section8700 mm²
-
ModelIntegrated connector
-
MaterialSteel
-
ColourZinc
-
Load test type according to IEC 61537Type II
-
Safe working load according to IEC 61537 with support spacing 1.0 m350 N/m
-
Safe working load according to IEC 61537 with support spacing 2.0 m100 N/m
-
Width200 mm
-
Length3000 mm
-
Diameter transverse wire3.9 mm
-
Integrated partitionNone
-
Suitable for circuit integrityYes
-
Surface protectionHot-dip galvanized
-
Weight1.02 kg/m
-
Possible support spacing1 ... 2.5 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m200 N/m
-
Safe working load according to IEC 61537 with support spacing 2.5 m100 N/m
Manufacturer details
-
ManufacturerOBO Bettermann Holding GmbH & Co. KG
-
Address58710 Menden Hüingser Ring 52 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Bez opakowania | Paleta |
| Quantity | 1 pcs. | 66 pcs. |
| Weight (kg) | 3,061 | 238,526 |
| Volume (m3) | 0,033 | 2,040 |
| Width (m) | 0,200 | 0,800 |
| Length (m) | 3,000 | 3,000 |
| Depth (m) | 0,055 | 0,850 |
