Fiberglass sheath 1.5kV dia. 6mm WSG-1,5-6

local index:
TAO141BORP
Catalog No:
WSG-1,5-6
EAN code:
8595055716089
Manufacturer: TRYTYT
Roll length [m]: 10
Wall thickness [mm]: 0.48
Maximum operating temperature [°C]: 200
Price:
1,12 €
gross / pkg.
(including VAT 23%)
0,11 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

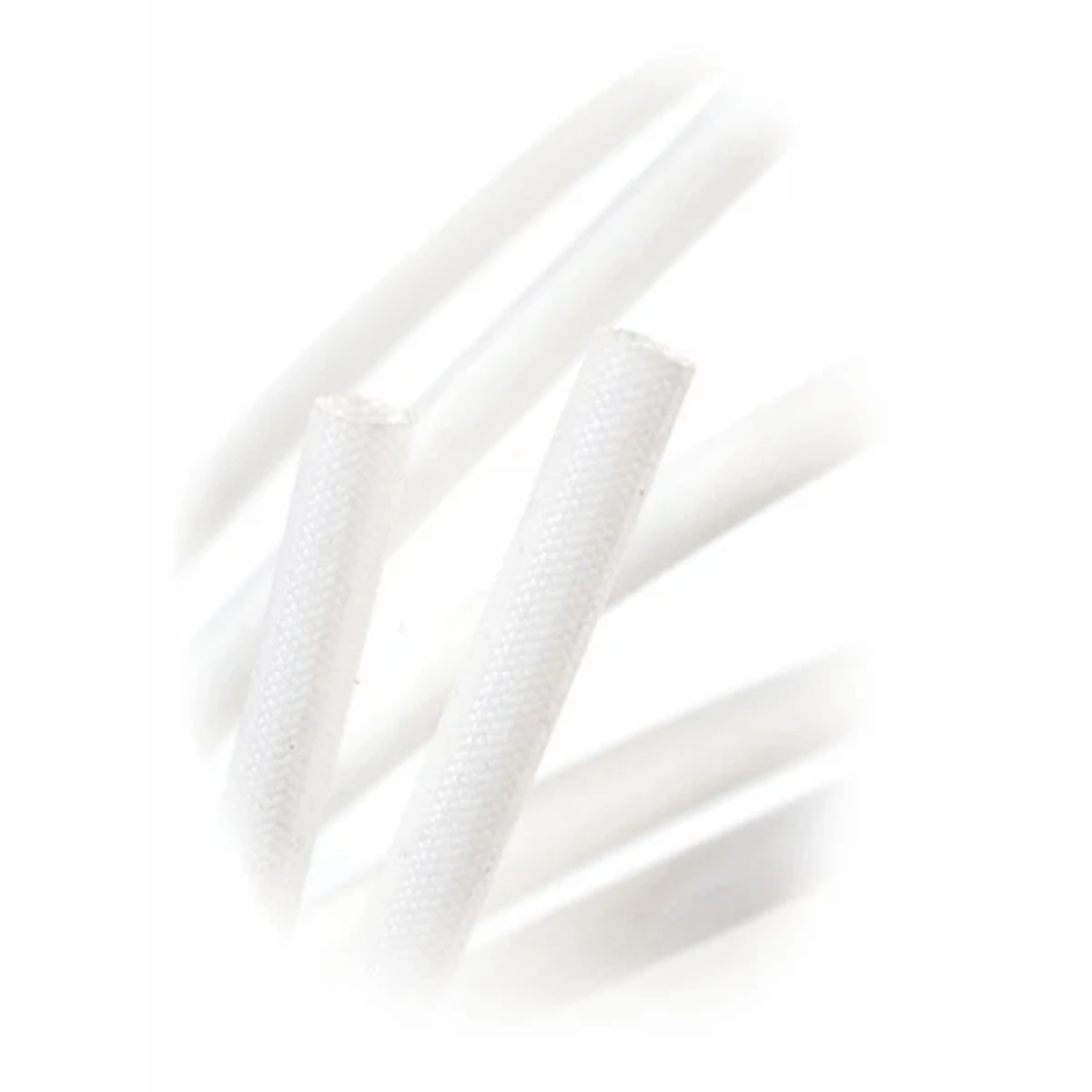

WSG insulating tubes made of silicone-coated fiberglass. Thanks to the combination of glass fiber and silicone, these shirts are also self-extinguishing and have very good insulating properties. They are used wherever, in addition to protection against puncture, it is also necessary to protect the wires themselves, e.g. against high temperatures. Tubes of this type are most often used as protection of power cables for light fixtures, as well as to protect connections in switchboards, motors, furnaces. Natural color as standard.

Technical data

  • Roll length [m]
    10
  • Maximum operating temperature [°C]
    200
  • Pieces in the package
    10
  • Dielectric strength [kV/mm]
    1.5
  • PKWIU
    22.21.29.0
  • Wall thickness [mm]
    0.48
  • Material
    Fiberglass
  • Diameter [mm]
    6
  • Minimum operating temperature [°C]
    -45
