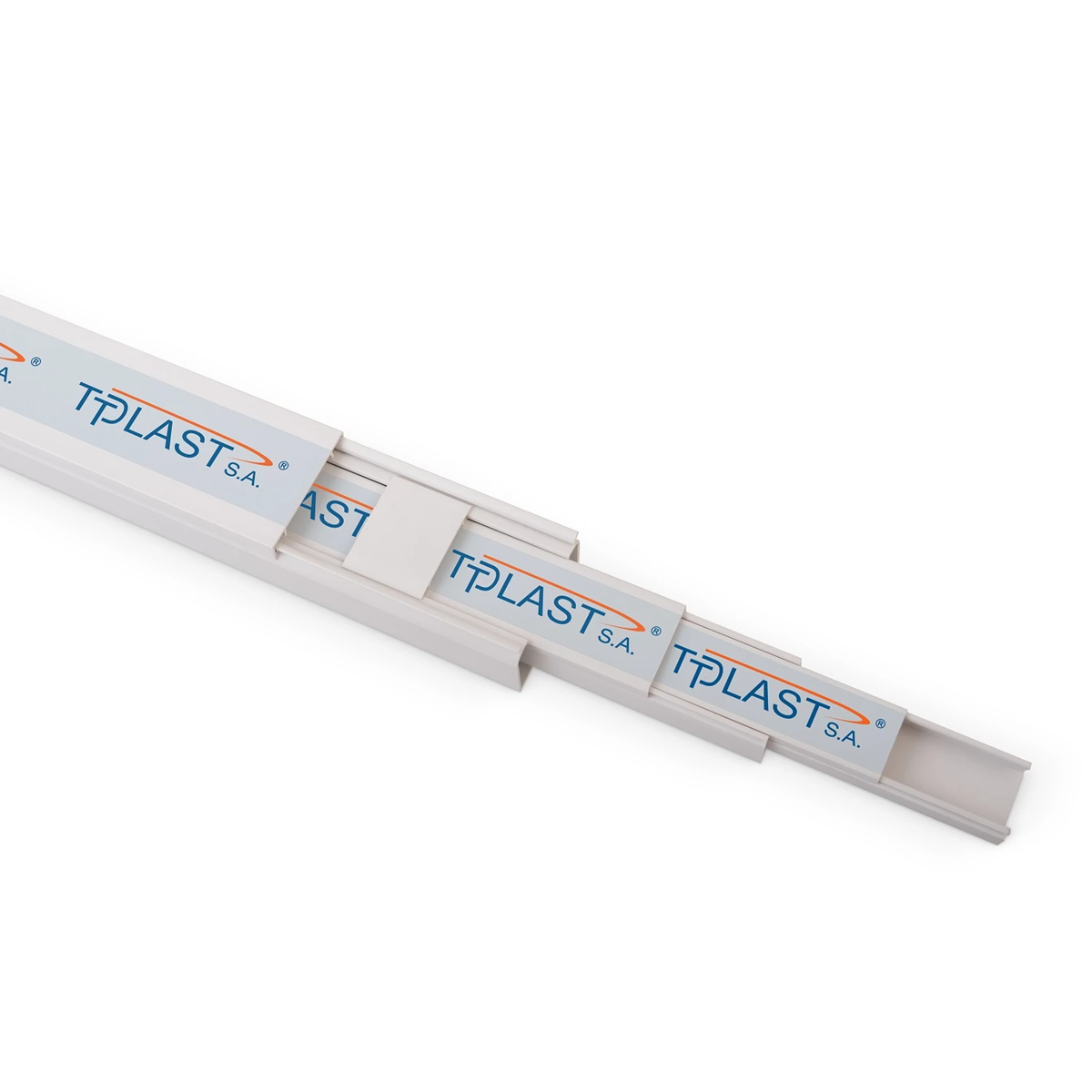

Electrical installation trunking size 32x15, 2mb 10263

local index:
TKP031TTPL
Catalog No:
10263
EAN code:
5908312750413
Manufacturer: TT PLAST
Section length [m]: 2
Color: White
Material: PVC
Large-size product
Price:
2,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 577 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electrical installation ducts are used to distribute and protect electrical cables in wall installations. Thanks to a specially designed lock, wiring trunkings ensure reliable closing of the cover and the possibility of easy access to wires. Wiring trunkings have high mechanical strength at low and high temperatures. The most modern technology is used for their production, which, combined with the highest quality raw material, gives a durable and reliable product with a smooth and aesthetic surface that is easy to keep clean. Electrical installation channels can fully cooperate with existing electrical installation systems on the market. PVC used for the production of electrical installation strips is characterized by the fact that as a material it has a high mechanical strength factor and excellent impact properties, as well as low relative elongation. It is moderately flexible when stretched, and highly resistant to pressure. It is possible to easily weld, heat-weld and glue PVC.

Technical data

  • Section length [m]
    2
  • Material
    PVC
  • Height [mm]
    15
  • Package weight [kg]
    0.2
  • PKWIU
    22.23.19.0
  • Color
    White
  • Width [mm]
    32
  • Temperature range [°C]
    -20/50
  • Accurate color
    White

Other technical data

  • Height
    15 mm
  • Length
    2000 mm
  • Material quality
    Polyvinyl chloride (PVC)
  • Surface protection
    Untreated
  • Transparent
    No
  • Cover model
    Loose
  • With protective foil
    No
  • Delivery on roll
    No
  • Width
    32 mm
  • Material
    Plastic
  • Halogen free
    No
  • Colour
    White
  • Type of fastening
    Bottom perforation
  • With cable fixing clip
    No
  • With duct connector
    No
  • Operating temperature
    -15 ... 60 °C

Manufacturer details

Bulk packaging

A kind of package Karton
Quantity 30 pcs.
Weight (kg) 9,600
Volume (m3) 0,034
Width (m) 0,170
Length (m) 2,000
Depth (m) 0,100
