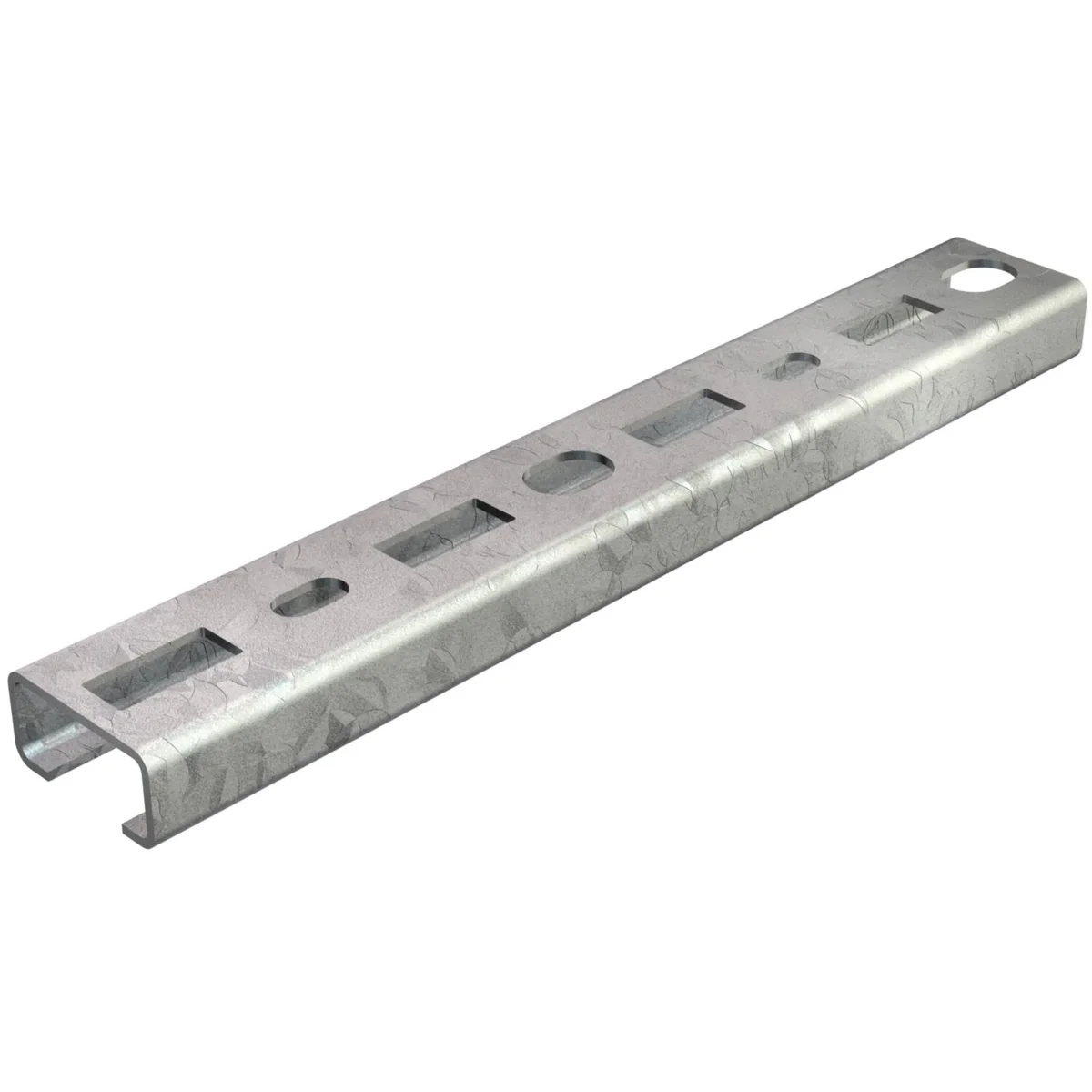

CM3015P2000FT Perf. profile rail, seal width 16mm 1109871

local index:
TAK088OBOB
Catalog number:
1109871
EAN code:
4012195041771
Manufacturer: OBO BETTERMANN
Price:
65,42 zł
gross / m.
(including VAT 23%)
2 weeks
On request
Quantity m.
(multiplicity:
20
)
Add to inquiry
Add to clipboard
Print

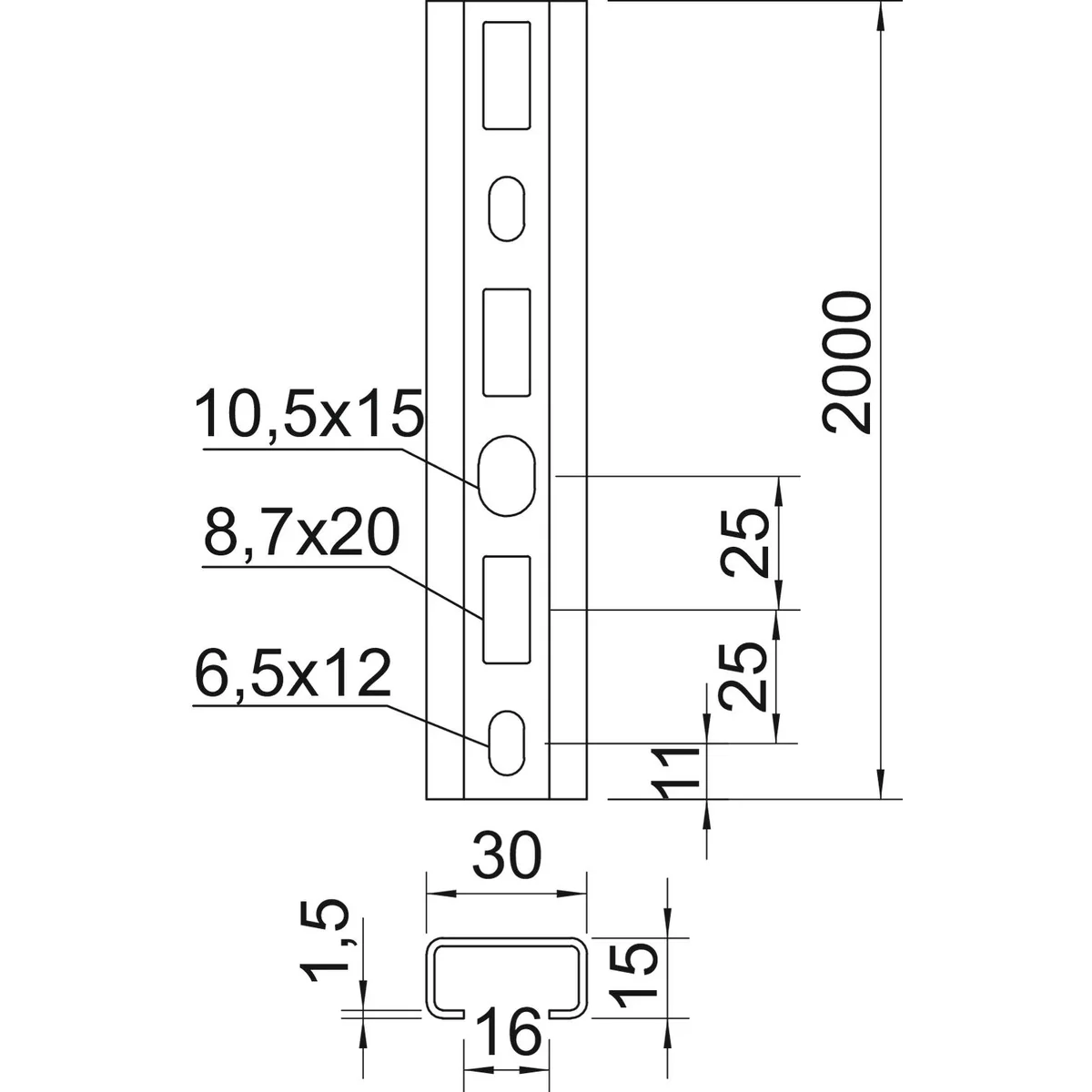

Technical data

Other technical data

  • Length
    2000 mm
  • Height
    15 mm
  • Profile shape
    C-profile
  • With toothing
    No
  • Area of inertia Iz
    1.22 cm4
  • Moment of resistance Wz
    0.81 cm³
  • Material
    Steel
  • Weight
    0.73 kg
  • Width
    30 mm
  • Material thickness
    1.5 mm
  • Type of perforation
    Back perforated
  • Area moment of inertia Iy
    0.24 cm4
  • Moment of resistance Wy
    0.29 cm³
  • Suitable for circuit integrity
    No
  • Surface protection
    Hot-dip galvanized

Manufacturer details

  • Manufacturer
    OBO Bettermann Holding GmbH & Co. KG
  • Address
    58710 Menden Hüingser Ring 52 Niemcy
  • E-mail

Bulk packaging

A kind of package Bez opakowania Wiązka Paleta
Quantity 2 m. 20 m. 1000 m.
Weight (kg) 1,461 14,610 767,000
Volume (m3) 0,001 0,006 1,360
Width (m) 0,030 0,083 0,800
Length (m) 2,000 2,000 2,000
Depth (m) 0,015 0,037 0,850
