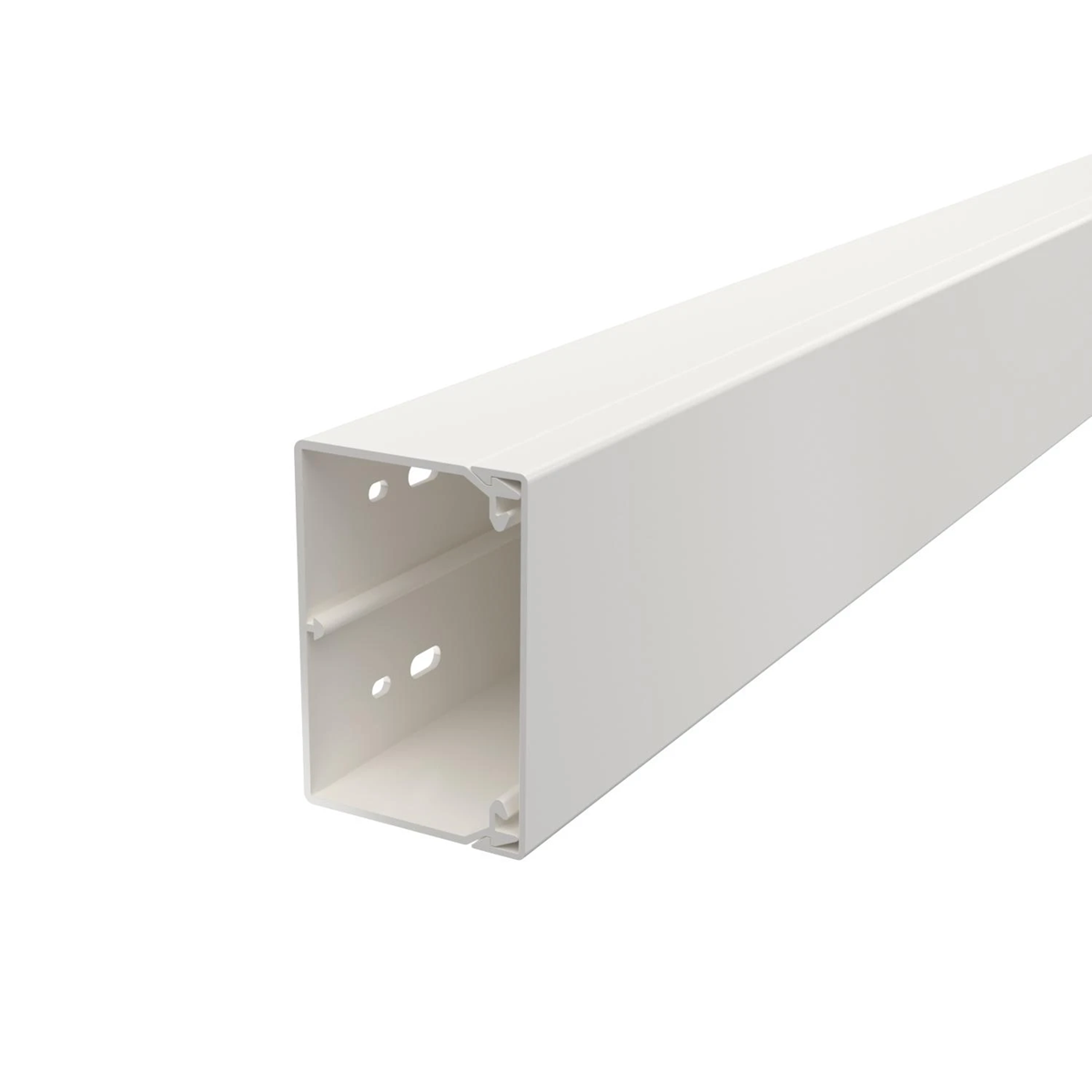

Channel WDK 60X90 B/W, WDK60090RW 6191207

local index:
TKP027OBOB
Catalog No:
6191207
EAN code:
4012196491292
Manufacturer: OBO BETTERMANN
Pure white RAL 9010: Channel length [m]
Length [m]: 2
Channel length [m]: 2
Large-size product
Price:
26,38 €
gross / pcs.
(including VAT 23%)
13,19 € gross/m.
Delivery in 3h
Accessible 1 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Material: PVC or halogen-free material. Temperature resistance: from - 30OC to 65OC, short-term 75OC. Color: RAL 9010 pure white shown in the table. Additionally available: white 9001, gray 7030, light gray 7035
Sale length: 2m lengths (full box only) available with cover included
Ingress protection: IP 40
Hardware mounting: standard or Modul45
Bottom perforation for easy leveling and assembly

Technical data

  • Pure white RAL 9010
    Channel length [m]
  • Channel length [m]
    2
  • Material
    PVC
  • Level of security
    IP40
  • Temperature resistance
    from -30°C to 65°C, short term 75°C
  • PKWIU
    27.33.14.0
  • Length [m]
    2
  • Color
    White
  • Attachment assembly
    Standard or Modul45

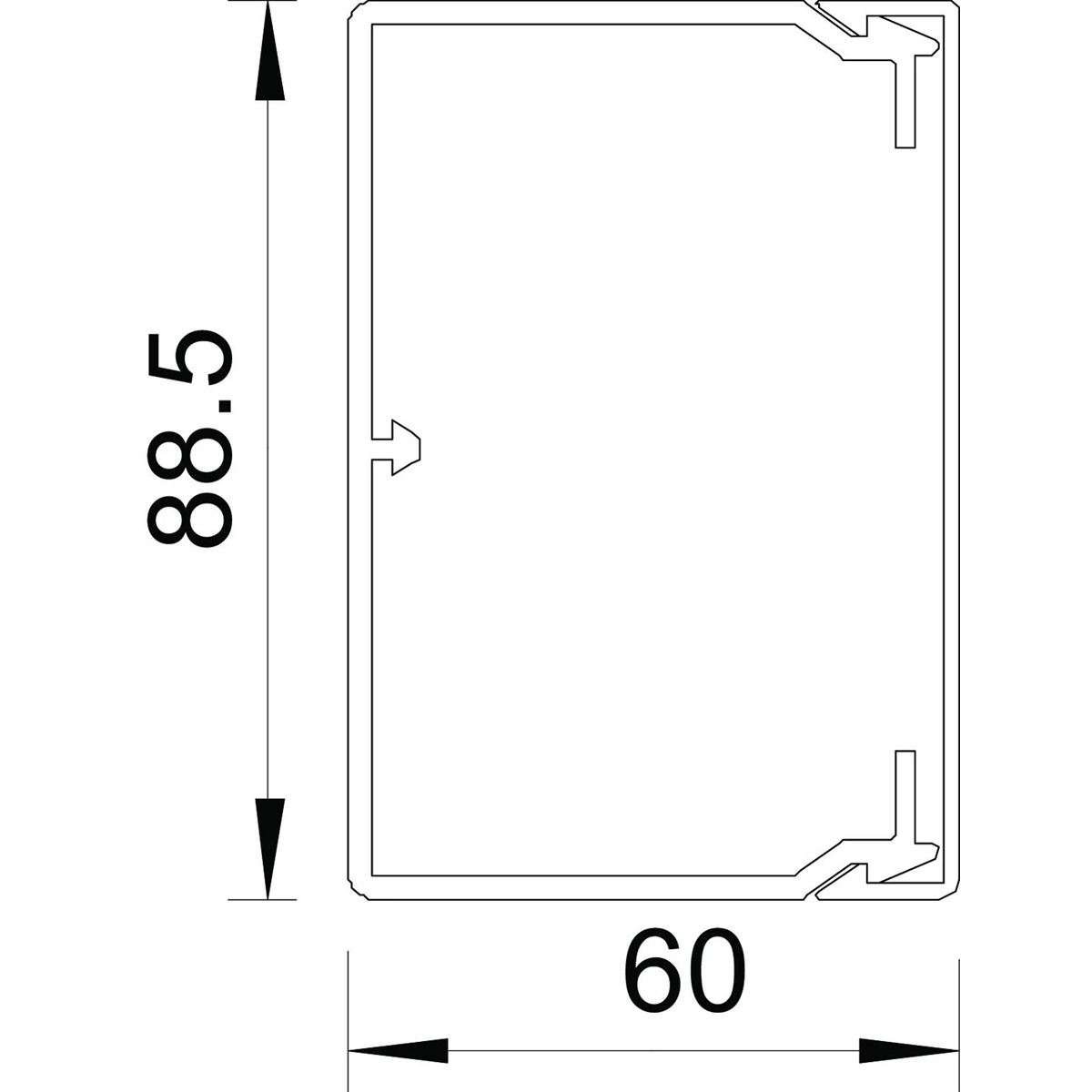

  • Dimensions [mm]
    90x60
  • Accurate color
    pure white RAL 9010

Bulk packaging

A kind of package Karton Paleta
Quantity 12 pcs. 120 pcs.
Weight (kg) 28,013 328,130
Volume (m3) 0,098 1,771
Width (m) 0,313 0,800
Length (m) 2,012 2,050
Depth (m) 0,155 1,080
