138694
0

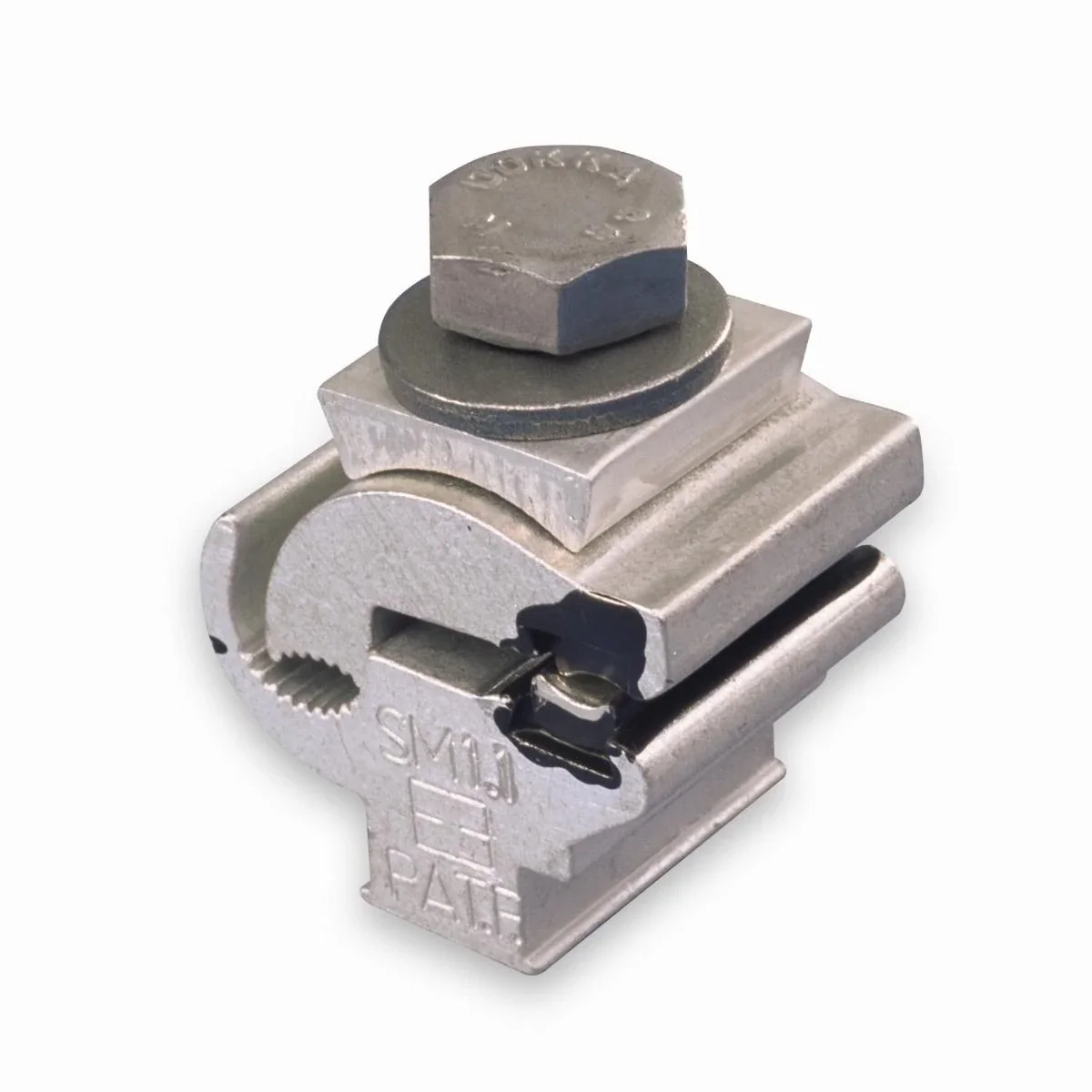

Branch clamp Al 10-50 mm2 and Cu 1.5-10 mm2 SM1.11
local index:
TOC060ENST
Catalog No:
SM1.11
EAN code:
6418677403880
Price:
3,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The SM 1.11 clamp is used to make a connection not loaded with mechanical stress, between aluminum and copper conductors. The terminal is cleaned and protected with contact paste. It is clamped with one M8 screw.
Technical data
-
screwsM8
-
Main conductor [mm2]10-50
Other technical data
-
Nominal cross section main conductor, SE10 ... 50 mm²
-
Nominal cross section branch conductor, SE/RE1.5 ... 10 mm²
-
Material main conductorAluminium
-
Terminal insulatedNo
-
Clamping channel opening branch conductorBoth sides open
-
Type of connectionScrewed connection
-
Nominal cross section main conductor, SM10 ... 50 mm²
-
Nominal cross section branch conductor, SM/RM1.5 ... 10 mm²
-
Material branch conductorCopper
-
Clamping channel opening main conductorBoth sides open
-
Surface protectionTinned
Manufacturer details
-
ManufacturerENSTO POL SP.Z O.O.Paweł Niemczyk
-
Address83-010 UL.STAROGARDZKA 17A
-
E-mail
-
Tax identification number5830010591
