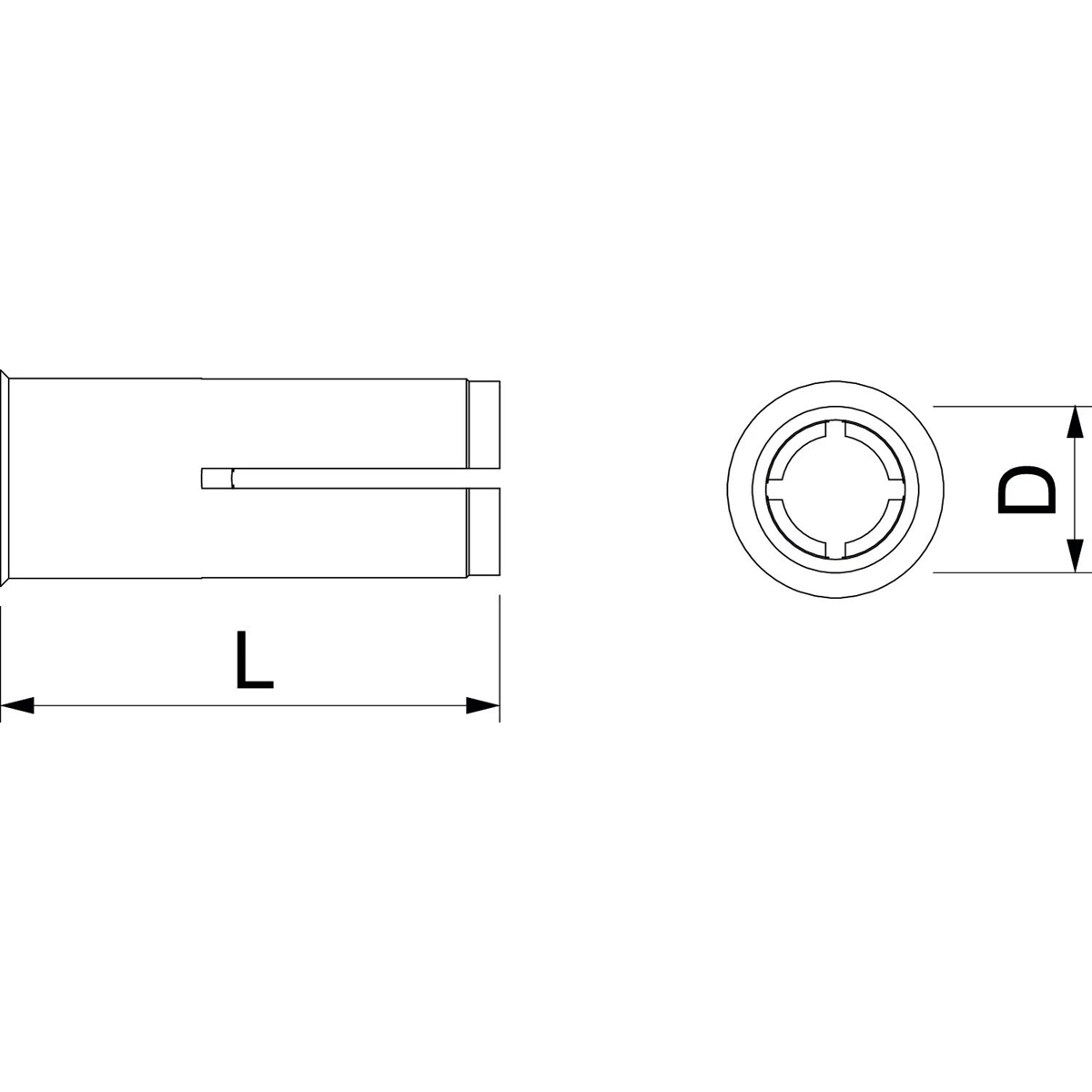

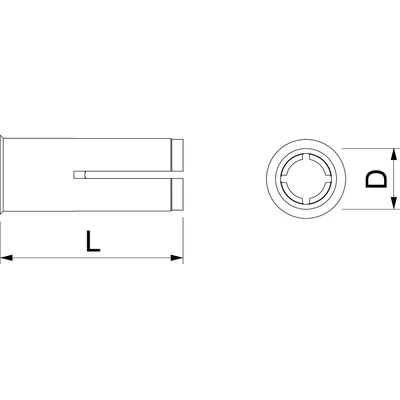

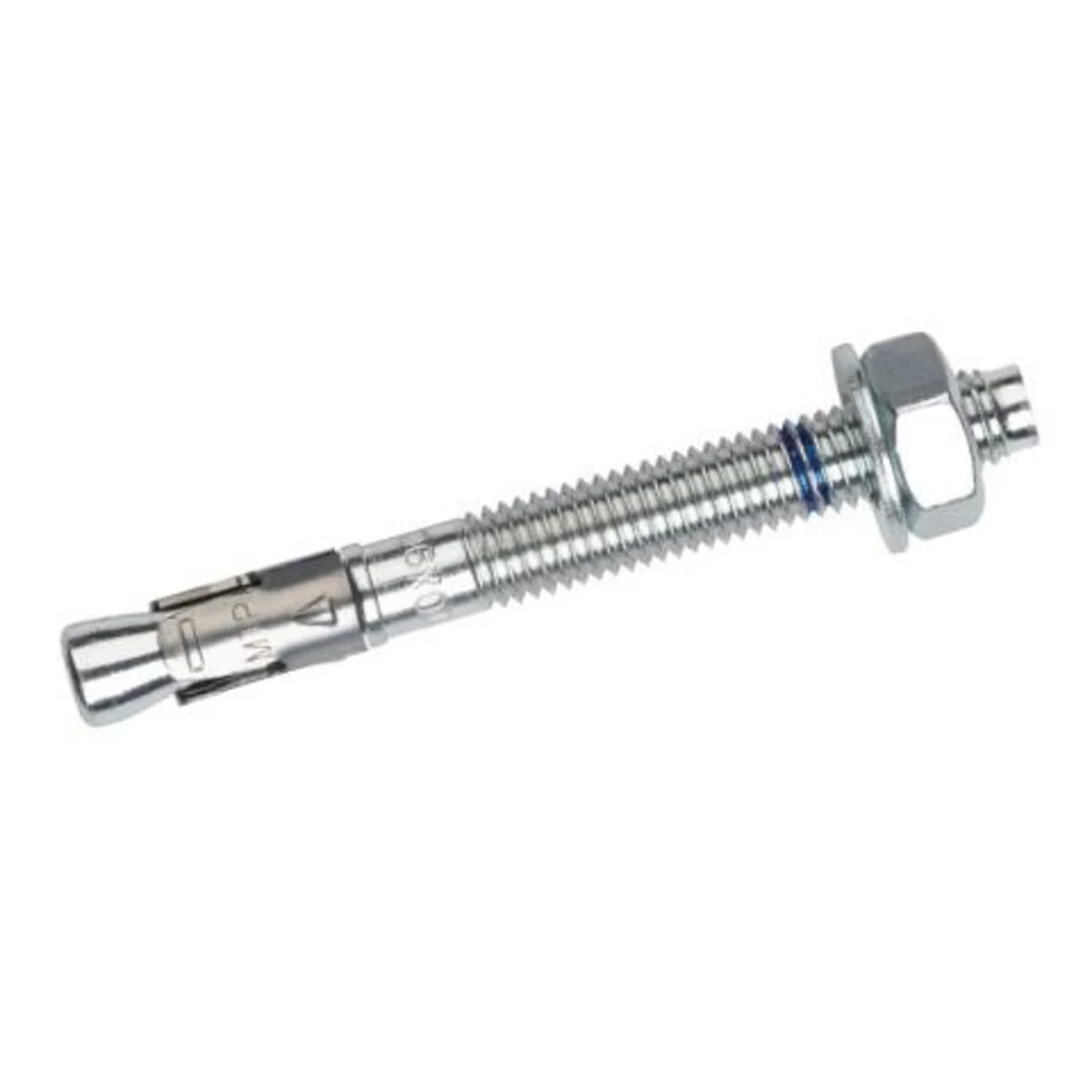

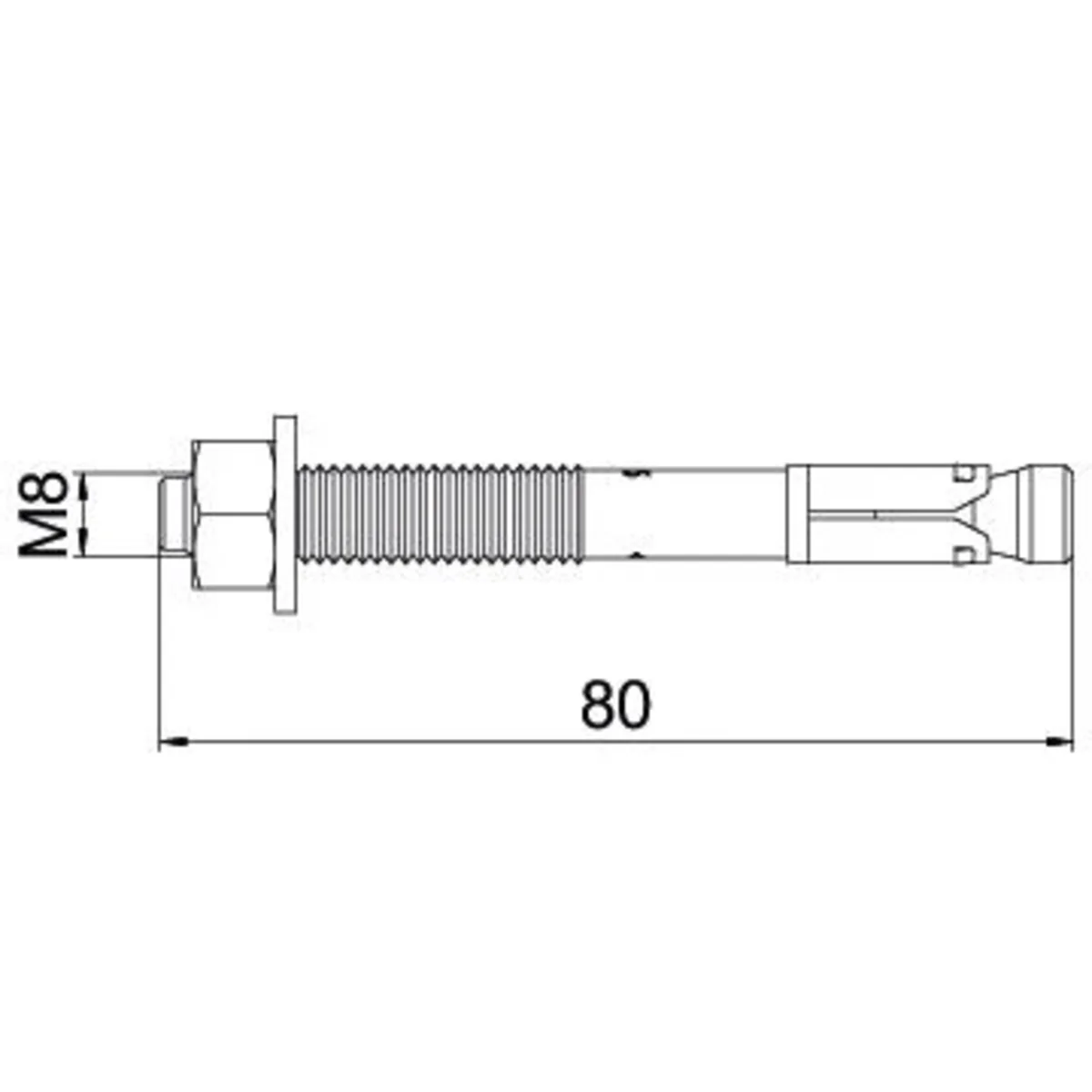

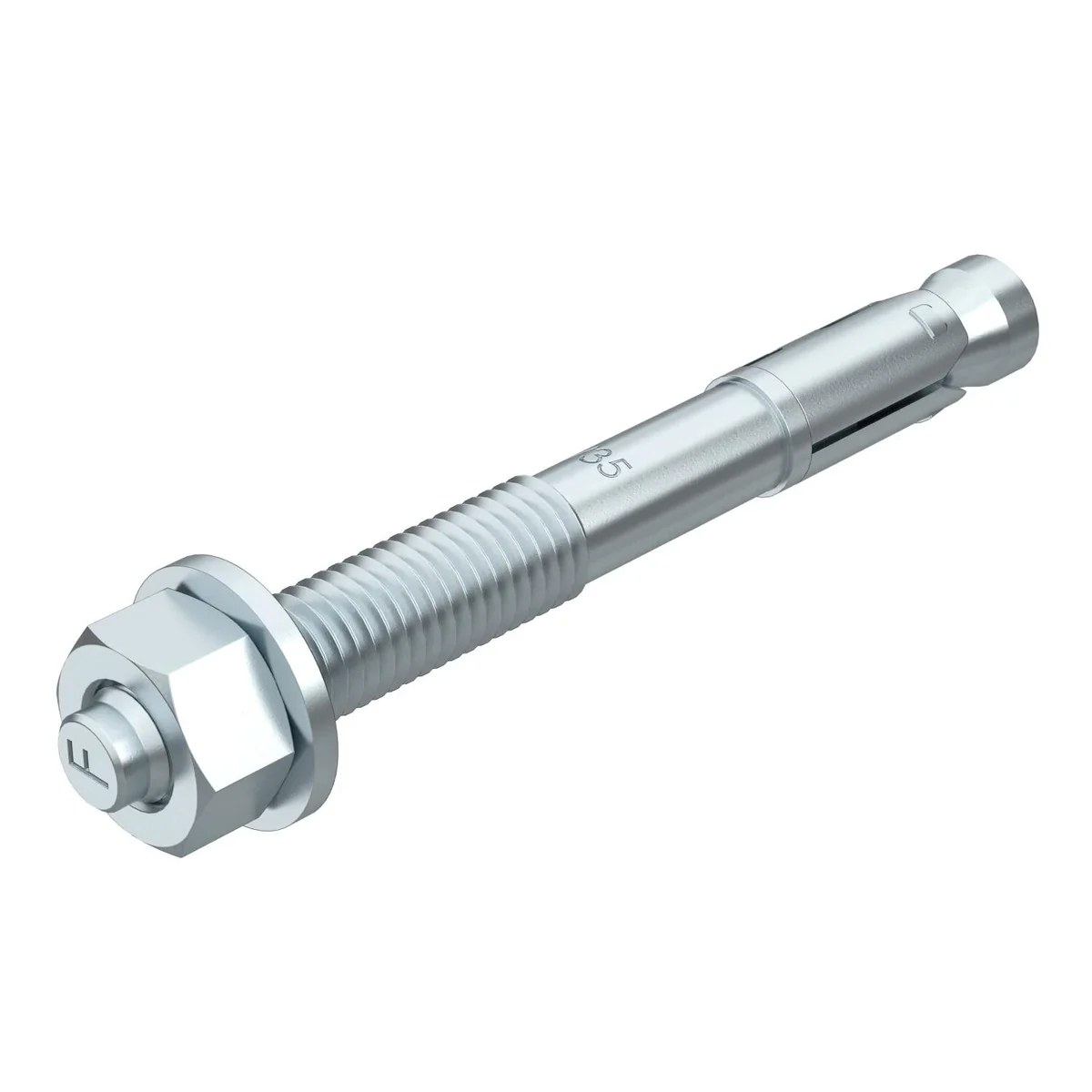

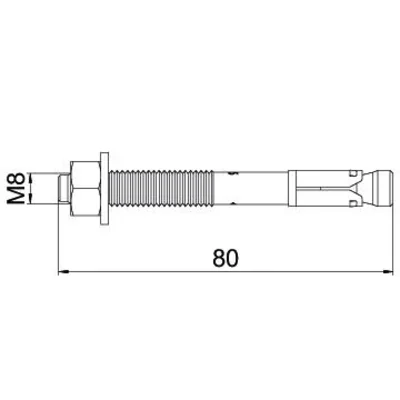

Bolt anchor EA M8x75 3492865
local index:
TAK105OBOB
Catalog No:
3492865
EAN code:
4012196131631
Price:
2,44 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
100
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Bolt anchor EA M8x75 PL. CNBOP technical approval and certificate for use in E30/E90 systems.
Technical data
-
Length [mm]75
-
PKWIU25.94.11.0
-
HandleM8
Other technical data
-
Fastening provisionOther
-
Pre-positioned installationYes
-
Suitable for concreteYes
-
Material sleeveSteel
-
Thread size (metric)8
-
Length80 mm
-
App. load pull zone7.3 kN
-
Push-through installationNo
-
Spaced installationNo
-
Suitable for natural stoneNo
-
Surface protectionGalvanic/electrolytic zinc plated
-
Drill hole diameter8 mm
-
Min. drill hole depth53 mm
-
Self boringNo
Manufacturer details
-
ManufacturerOBO Bettermann Holding GmbH & Co. KG
-
Address58710 Menden Hüingser Ring 52 Niemcy
-
