3-pole input plug G4703
local index:
TAK003TEHA
Catalog No:
G4703
EAN code:
4012740849562
Price:
5,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

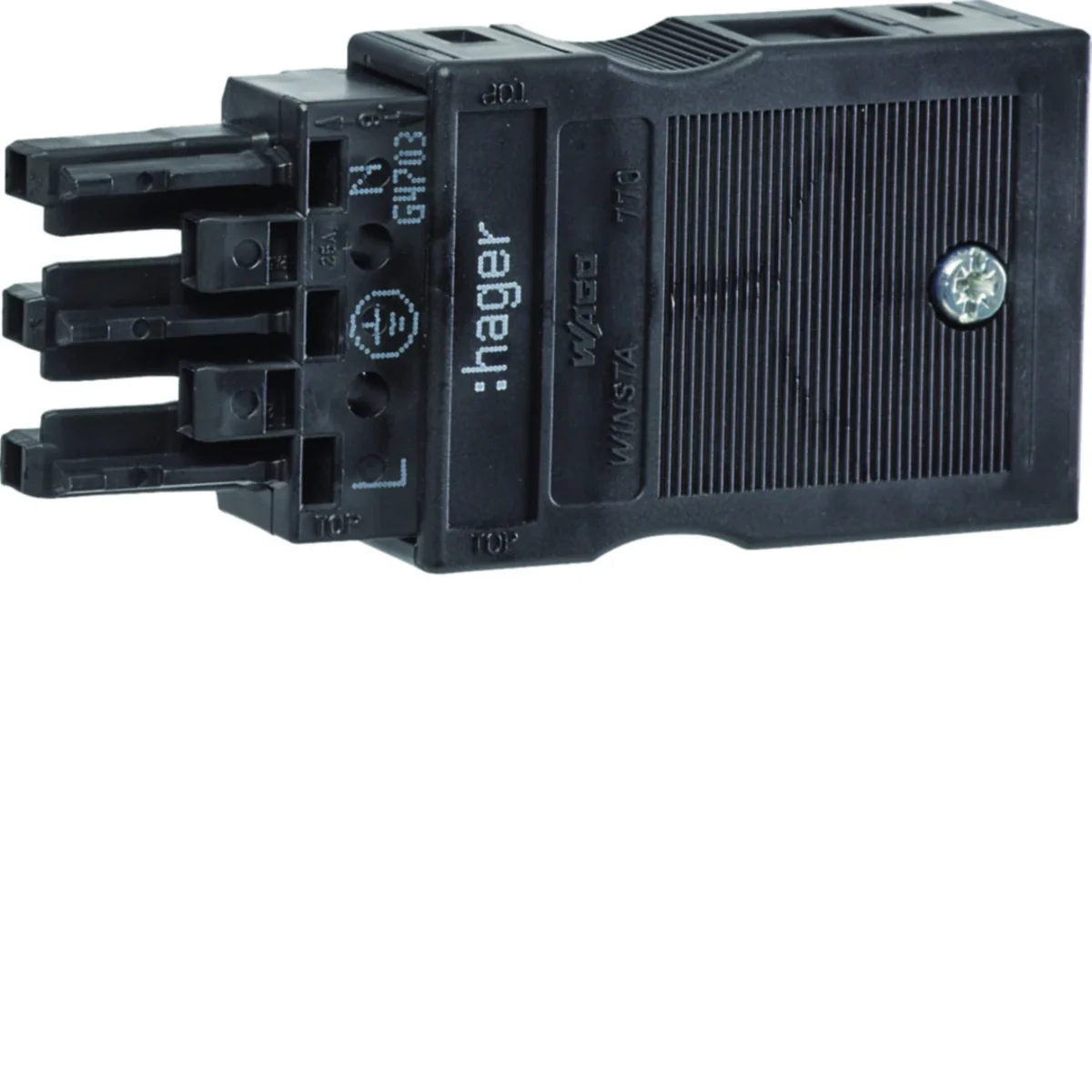

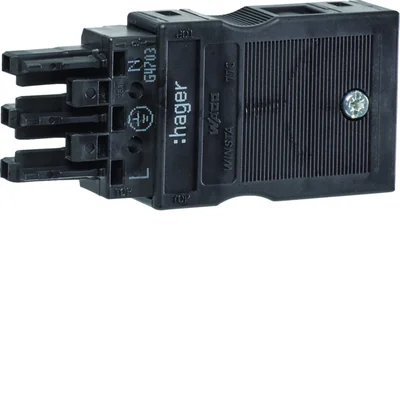

3-pole input plug
Technical data
-
Rated voltage [V]230
-
PKWIU27.33.13.0
-
Cable diameter [mm]1.5-2.5
Other technical data
-
Rated voltage250 V
-
Number of poles2
-
Connection typeSpring clamp connection
-
Connection cross section (fine-strand)0.5 ... 4 mm²
-
Number of connections per pole2
-
Mechanical codingYes
-
Max. continuous temperature resistance contact part85 °C
-
Housing materialOther
-
Contact materialOther
-
Pollution degree3
-
Rated surge voltage4 kV
-

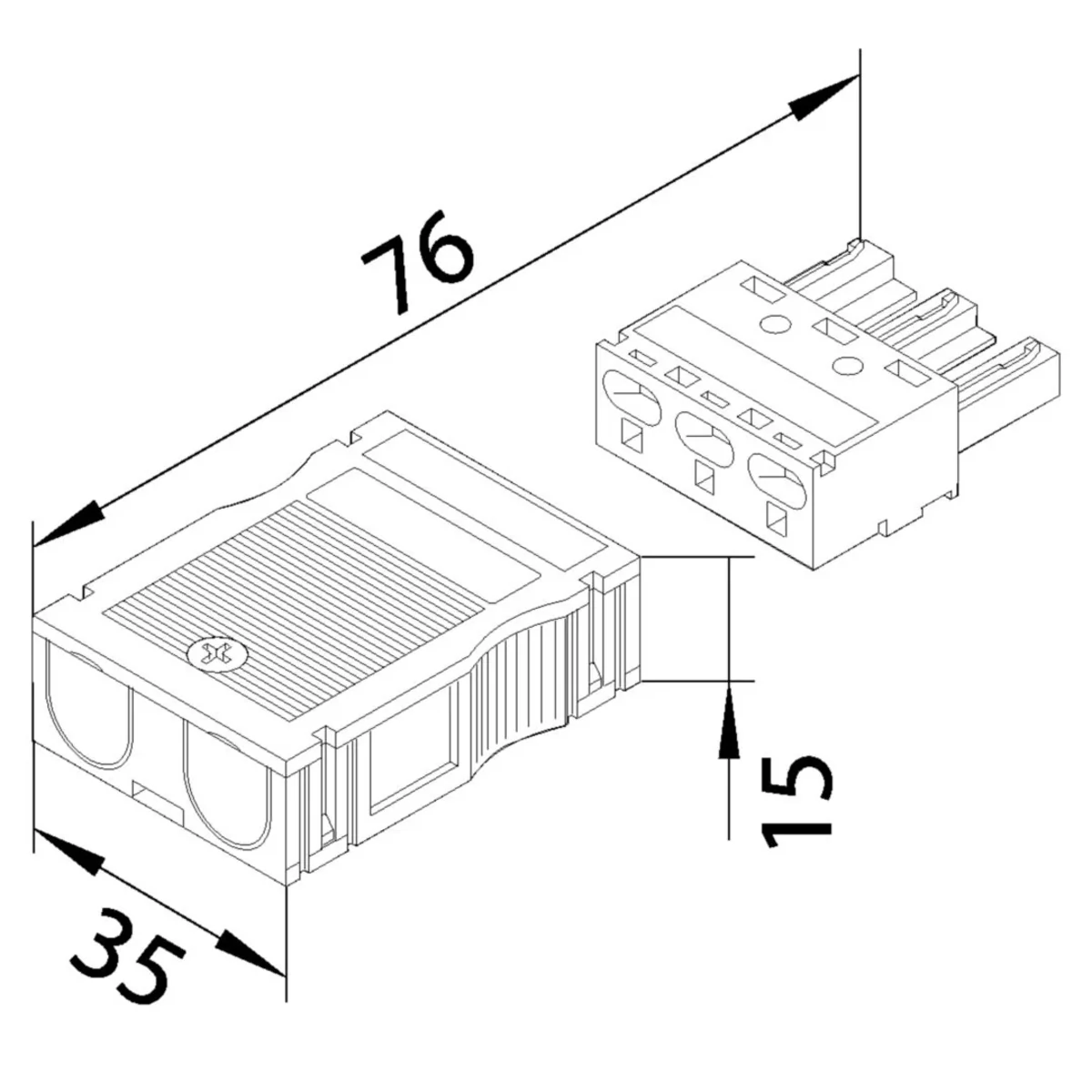

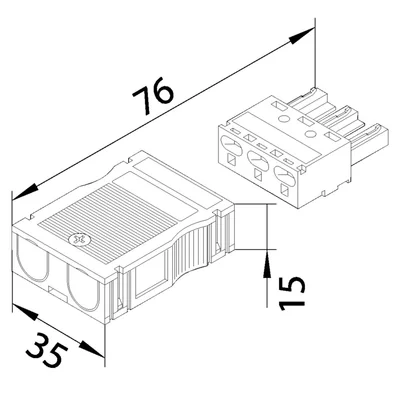

Height15 mm
-
Rated current32 A
-
Degree of protection (IP)IP20
-
ModelBus
-
Connection cross section (solid-core)0.5 ... 4 mm²
-
Pole codificationL, N, PE
-
With strain reliefYes
-
Max. continuous temperature resistance strain relief105 °C
-
Halogen freeYes
-
Surface treatment contactsUntreated
-
Continuity resistance1 mΩ
-
Length76 mm
-
Width34.6 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 25 pcs. | 200 pcs. | 6400 pcs. |
| Weight (kg) | 0,019 | 0,555 | 4,780 | 175,960 |
| Width (m) | 0,035 | 0,185 | 0,290 | 0,800 |
| Length (m) | 0,023 | 0,060 | 0,230 | 1,050 |
| Depth (m) | 0,050 | 0,200 | 0,395 | 1,200 |
