Voltage stabilizer 24V 3A 288-800

local index:
AUU037WAGO
Catalog No:
288-800
EAN code:
4050821347064
Manufacturer: WAGO ELWAG
Depth [mm]: 85
Maximum output current [A]: 3
Installation: On the TH-35 rail
Price:
104,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

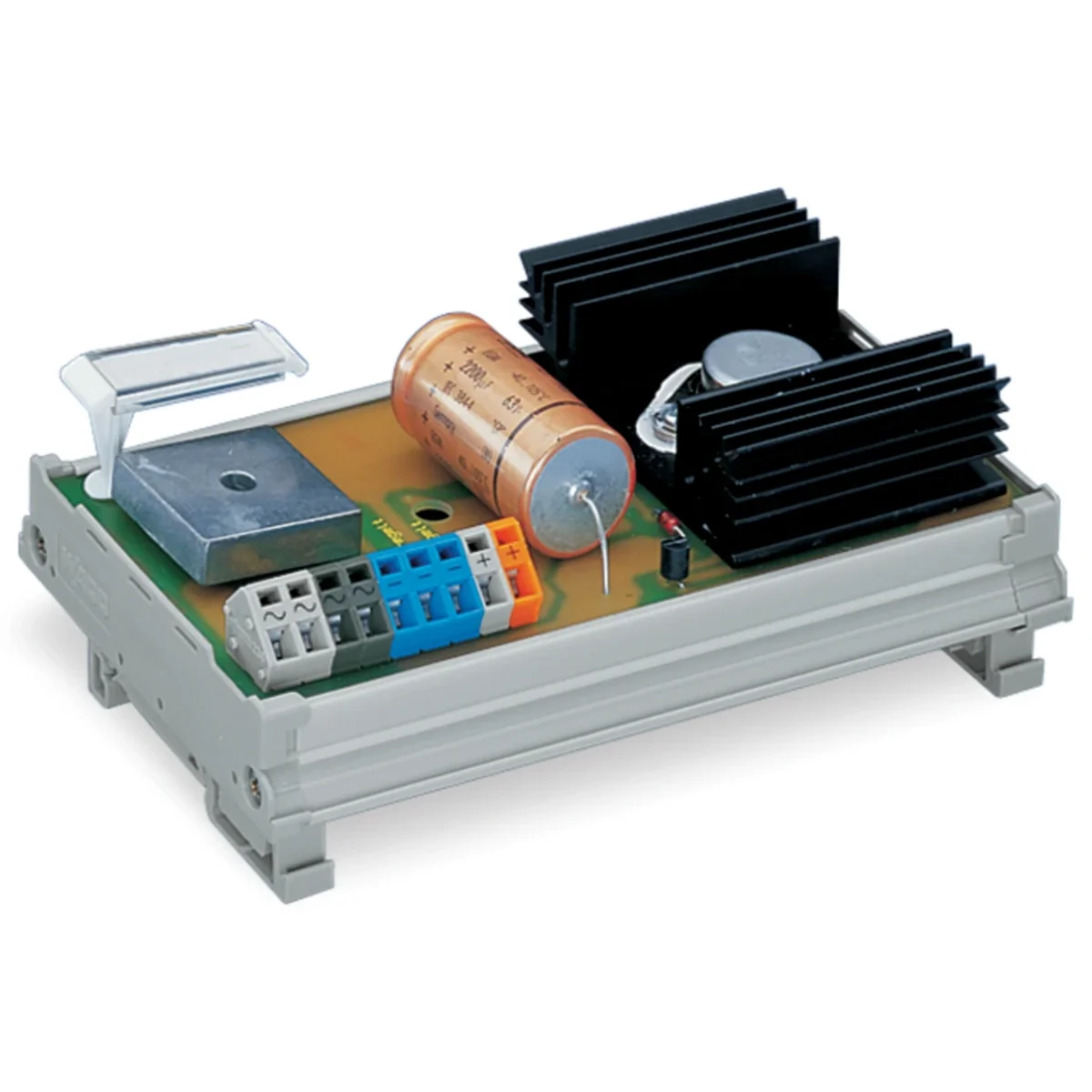

Voltage stabilizer 24V 3A

Technical data

  • Depth [mm]
    85
  • Installation
    On the TH-35 rail
  • Series
    288
  • Width [mm]
    140
  • Weight [g]
    205.442
  • Maximum stripping length [mm]
    6
  • Maximum output current [A]
    3
  • Gauge [AWG]
    28
  • Level of security
    IP20
  • Wire connection technique
    CAGE CLAMP®
  • Height [mm]
    44
  • Minimum stripping length [mm]
    5

Other technical data

  • Voltage type (supply voltage)
    DC
  • Max. output current 1
    3 A
  • Nominal value output voltage 1
    24 V
  • Short-circuit-proof
    No
  • Rated supply voltage AC 60 Hz
    24 ... 24 V
  • Stabilized
    No
  • Rail mounting possible
    Yes
  • Modular version
    No
  • Direct mounting possible
    No
  • Height
    44 mm
  • Suitable for safety functions
    No
  • 1st secondary output voltage
    24 ... 24 V
  • Secondary voltage adjustable
    Yes
  • Nominal value output current 1
    3 A
  • Rated supply voltage AC 50 Hz
    24 ... 24 V
  • Output voltage stabilized
    No
  • Type of electric connection
    Spring clamp connection
  • Wall mounting possible
    No
  • Width in number of modular spacings
    8
  • Width
    140 mm
  • Depth
    85 mm
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton
Quantity 2 pcs.
Weight (kg) 0,482
Volume (m3) 0,003
Width (m) 0,103
Length (m) 0,353
Depth (m) 0,072
