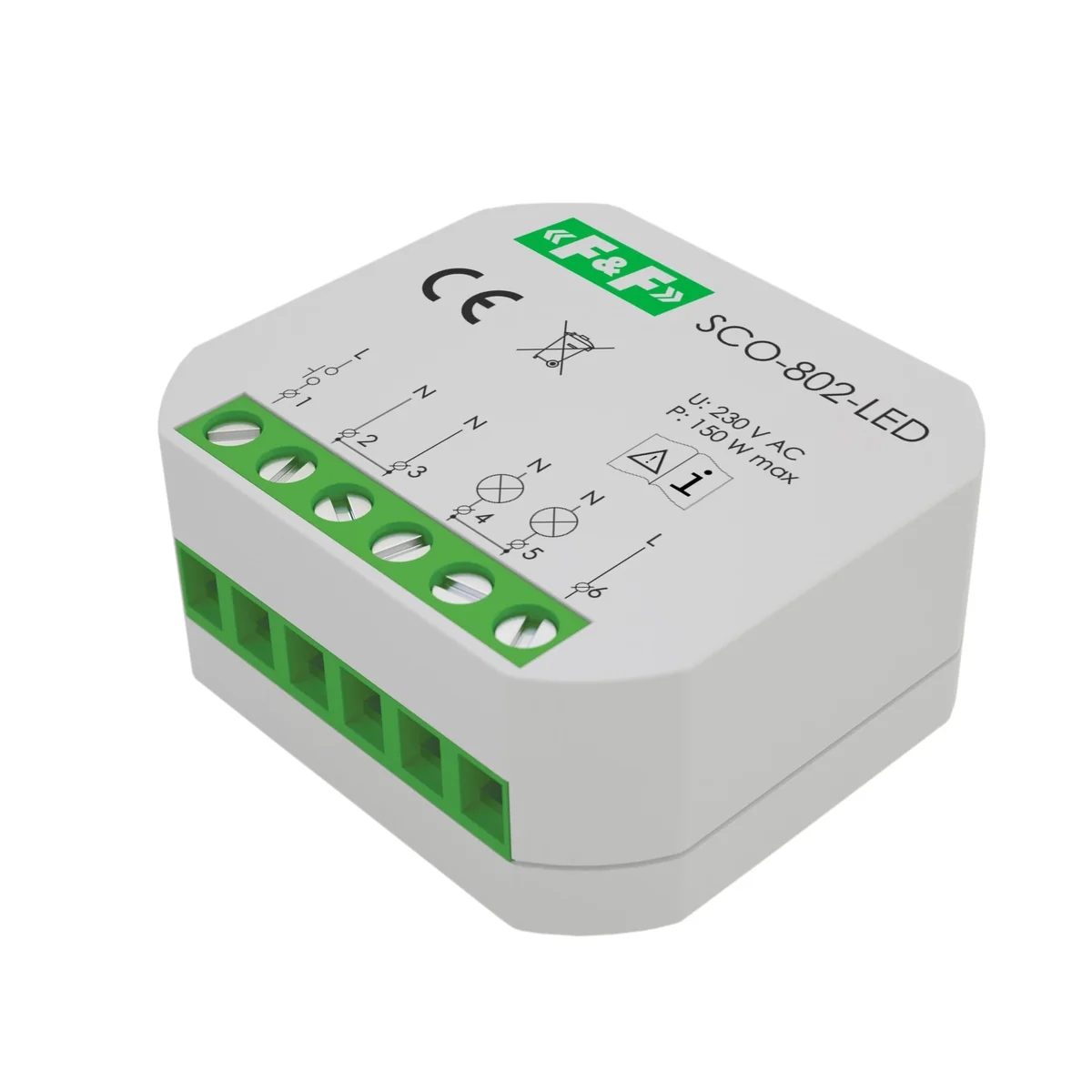

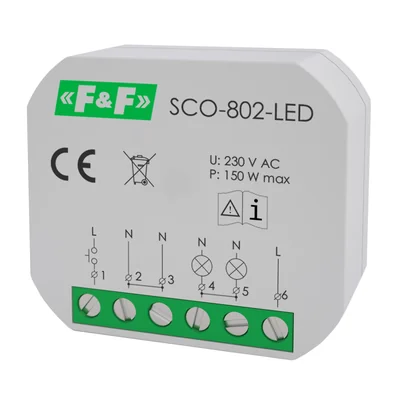

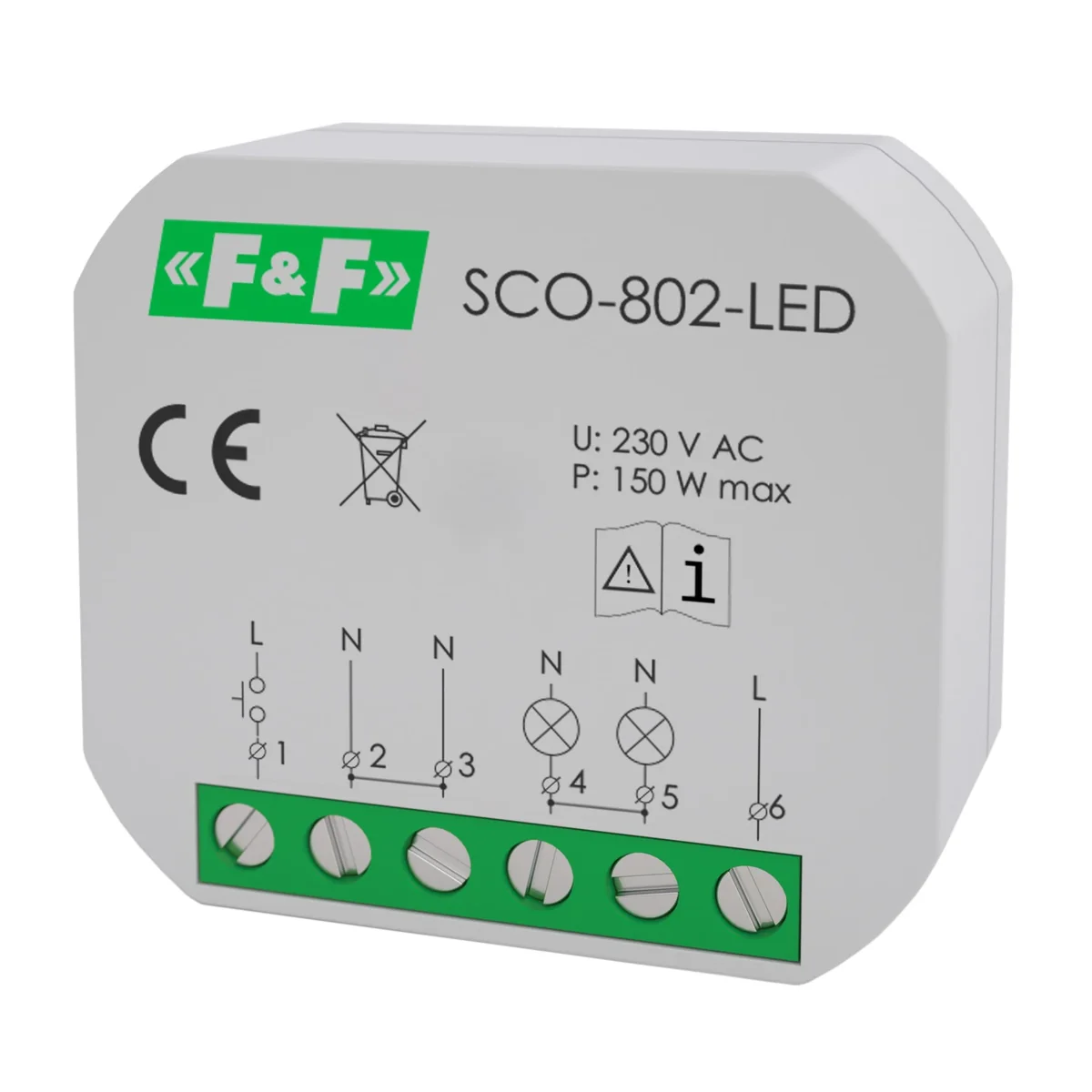

Universal dimmer for LED lighting 230V SCO-802-LED

local index:
AUU042FIFQ
Catalog No:
SCO-802-LED
EAN code:
5902431673936
Manufacturer: F&F
Tightening torque [Nm]: 0.3
Rated voltage [V]: 230
Power consumption [W]: 0.25
Price:
24,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 23 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

230V LED lighting dimmer from the manufacturer F&F. The product catalog number is SCO-802-LED. With memory of lighting intensity settings, with Softstart function. It is designed to adjust the brightness of dimmable lighting sources, in particular LED lighting, with a power of up to 150 W.

  • Installation of the LED dimmer in a standard installation box with a diameter of ø60 mm;< /li>
  • The ability to connect to any installation (both 3-wire and 2-wire, with no neutral wire available in the installation box);
  • Use any momentary button ( also illuminated to turn on, off and adjust the brightness,
  • Memory of the set brightness level (also after power failure and return);
  • Smooth brightening and dimming the light;
  • Possibility programming of the minimum brightness level (elimination of LED flashing at low brightness levels);
  • Built-in thermal protection.



Parameters

  • Maximum AC-1 load current: 1.3 A.
  • Maximum power of connected lamps : 150 W.
  • Operating temperature: -25 ÷ 50°C.
  • Dimensions: Ø54 (48×43mm).

Technical data

  • Tightening torque [Nm]
    0.3
  • Power consumption [W]
    0.25
  • Height [mm]
    20
  • Terminal type
    Threaded
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • With memory function
    Yes
  • PKWIU
    27.12.24.0

Other technical data

  • Assembly arrangement
    Basic element
  • Serial dimmer
    Yes
  • Substation input
    No
  • Applicable with button
    Yes
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • RAL-number (similar)
    7035
  • Suitable for degree of protection (IP)
    IP20
  • Connection type
    Screwed terminal
  • Device height
    43 mm
  • Method of operation
    Push button
  • Type of load
    Resistive load
  • Light value memory
    Yes
  • Applicable with movement sensor
    No
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    No
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Colour
    Other
  • Transparent
    No
  • Frequency
    50 ... 50 Hz
  • Device width
    48 mm
  • Device depth
    20 mm
