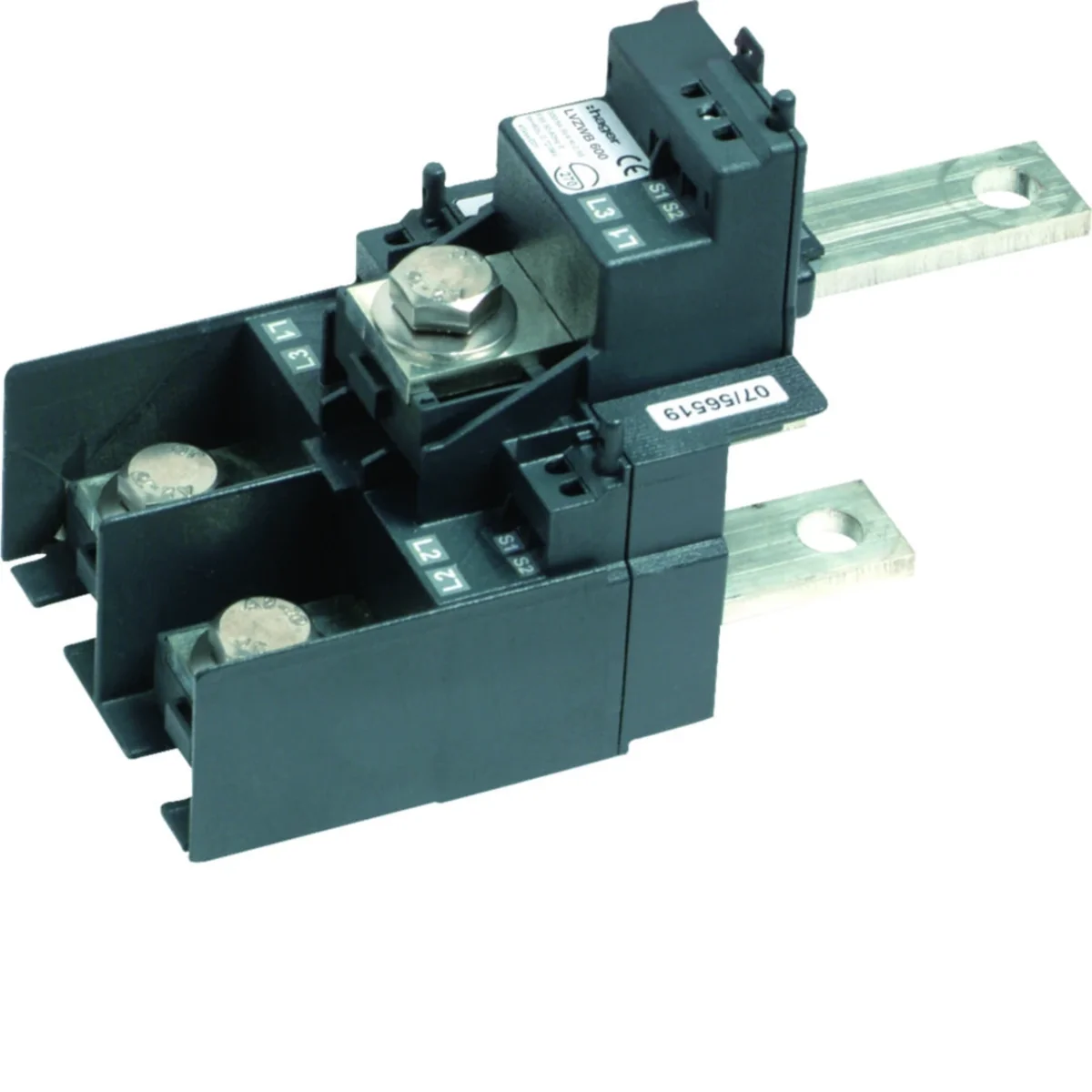

Transformer block 600/5 class 0.5S LVZWB600

local index:
AUK064HAGE
Catalog No:
LVZWB600
EAN code:
4049857133673
Manufacturer: HAGER
Rated frequency [Hz]: 50
Length [mm]: 204
Depth [mm]: 204
Price:
148,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Transformer block for LVxxx series fuse switch disconnectors:

  • 600/5A,
  • mounting: screwed,
  • < li> accuracy class: 0.5S.

Technical data

  • Rated frequency [Hz]
    50
  • Depth [mm]
    204
  • Input power [VA]
    5
  • Family
    LV
  • Width [mm]
    99
  • Height [mm]
    136.2
  • Accuracy [s]
    0.5
  • storage temperature [°C]
    from -40 to 75
  • Wire cross-section (cord) [mm²]
    6
  • PKWIU
    27.11.42.0
  • Length [mm]
    204
  • Power [VA]
    5
  • Fixing
    screwed
  • Level of security
    IP20
  • Connection type
    Screw connection
  • Operating temperature range [°C]
    from -5 to 40
  • Gear
    600;5
  • Rated insulation voltage [kV]
    3
  • Conductor cross-section (wire) [mm²]
    6

Other technical data

  • Model
    Pipe stick current converter
  • Rated secondary current
    5 A
  • Overcurrent limiting factor
    FS 5
  • With copper rail
    No
  • Rated primary current
    600 A
  • Rated secondary apparent power
    5 VA
  • With shock protection
    Yes
  • Number of primary inputs
    1

Bulk packaging

A kind of package Karton
Quantity 1 pcs. 1 pcs.
Weight (kg) 1,500 1,560
Width (m) 0,099 0,110
Length (m) 0,136 0,195
Depth (m) 0,204 0,250
