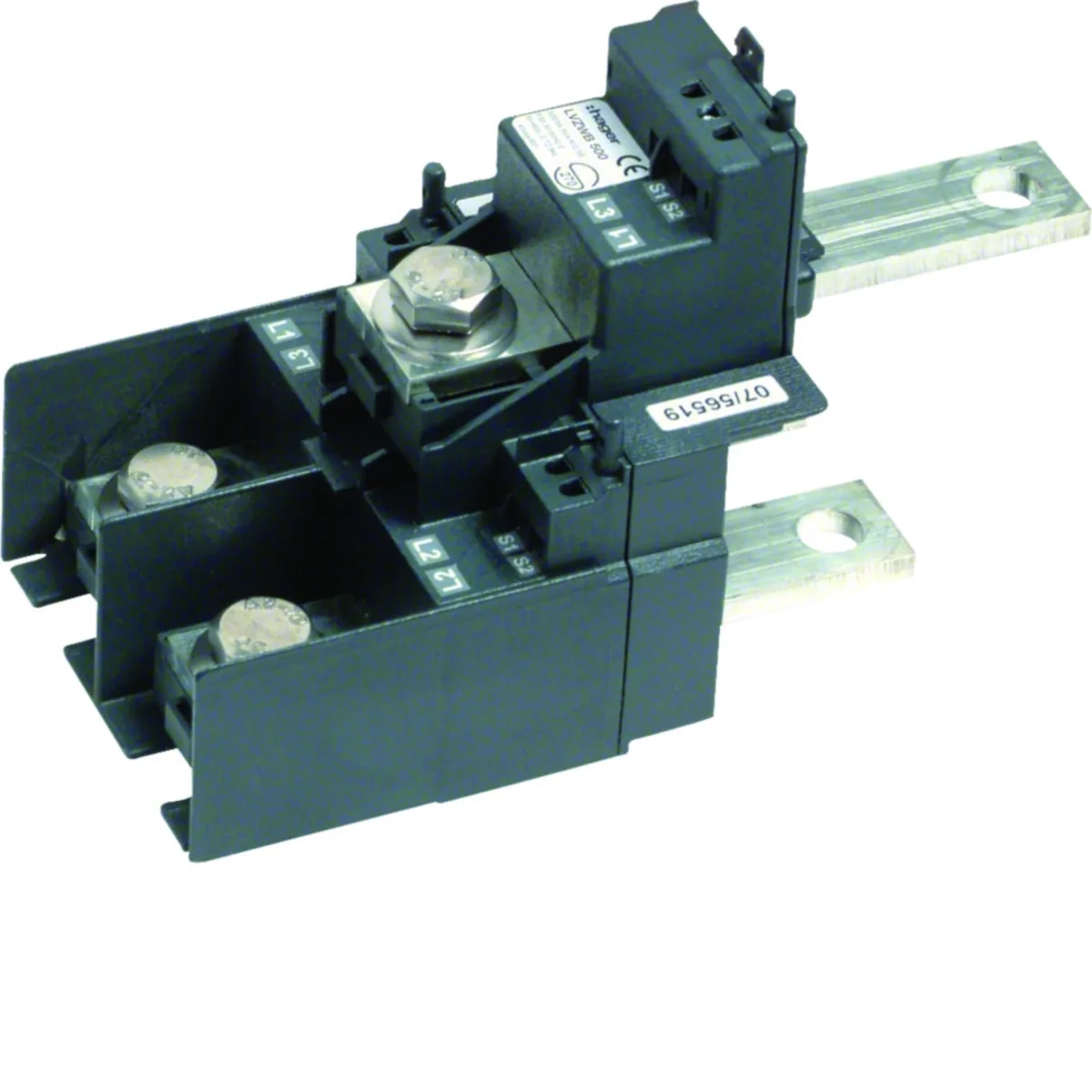

Transformer block 500/5 class 0.5S LVZWB500
local index:
AUK063HAGE
Catalog No:
LVZWB500
EAN code:
4049857138999
Price:
150,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Transformer block for LVSGxCPX NH1/2/3 series fuse switch disconnectors:
- 500/5A,
- mounting: screwed,
- accuracy class: 0.5S.
Technical data
-
Rated frequency [Hz]60
-
Depth [mm]204
-
Input power [VA]5
-
InstallationOn the TH-35 rail
-
Level of securityIP10
-
Connection typeScrew connection
-
Operating temperature range [°C]from -40 to 40
-
Gear500;5
-
Rated insulation voltage [kV]3
-
Conductor cross-section (wire) [mm²]6
-
Length [mm]204
-
Power [VA]5
-
Fixingscrewed
-
FamilyLV
-
Width [mm]99
-
Height [mm]136
-
Accuracy [s]0.5
-
storage temperature [°C]from -40 to 75
-
Wire cross-section (cord) [mm²]6
-
PKWIU27.11.42.0
Other technical data
-
ModelOther
-
Rated secondary current5 A
-
Overcurrent limiting factorFS 5
-
With copper railNo
-
Rated primary current500 A
-
Rated secondary apparent power5 VA
-
With shock protectionYes
-
Number of primary inputs1
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 100 pcs. |
| Weight (kg) | 1,440 | 1,500 | 169,000 |
| Width (m) | 0,099 | 0,140 | 0,800 |
| Length (m) | 0,136 | 0,120 | 0,600 |
| Depth (m) | 0,204 | 0,220 | 1,200 |
