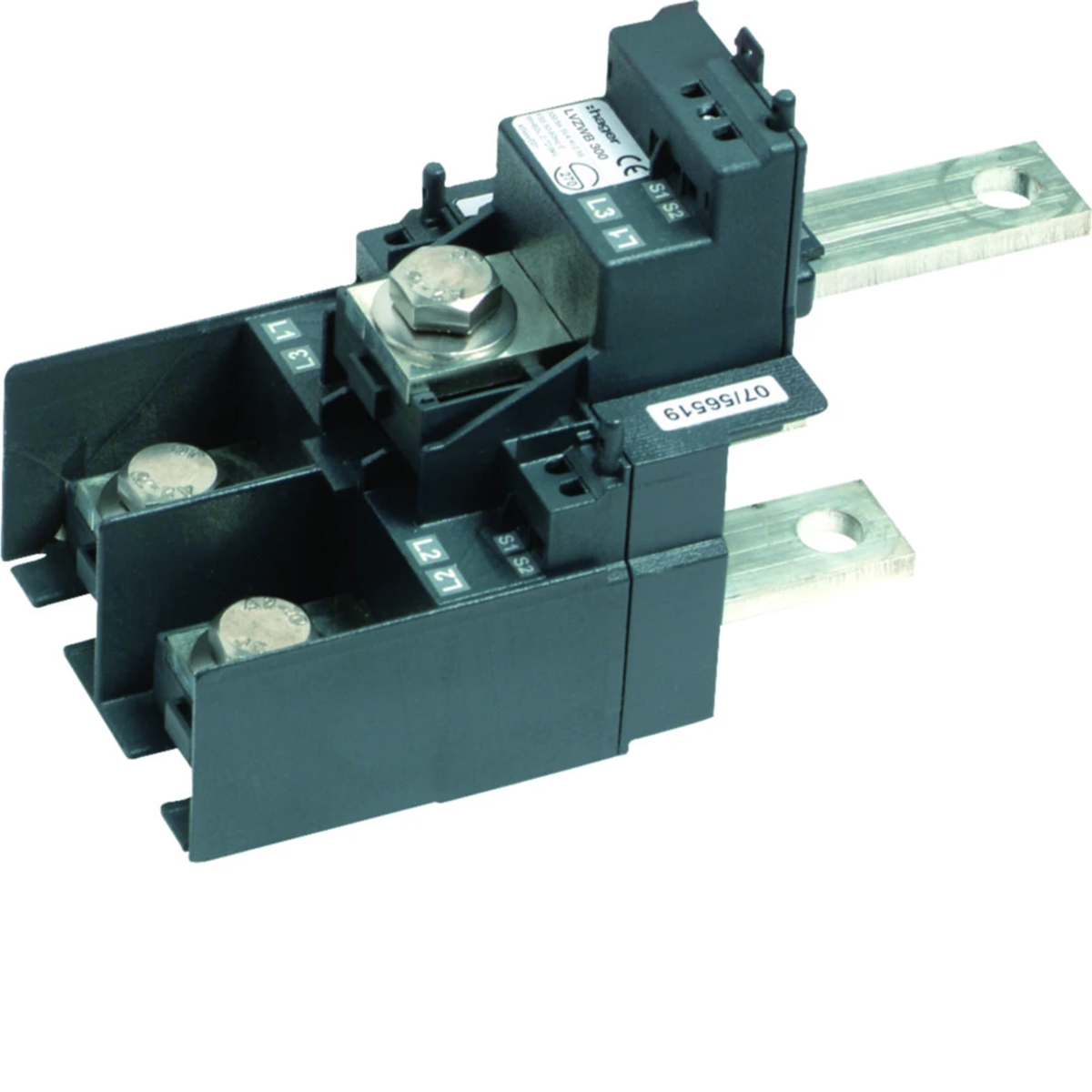

Transformer block 300/5 class 0.5S LVZWB300
local index:
AUK061HAGE
Catalog No:
LVZWB300
EAN code:
4049857017485
Price:
143,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Transformer block for LVxxx series fuse switch disconnectors:
- 300/5A,
- mounting: screwed, < li> accuracy class: 0.5S.
Technical data
-
Rated frequency [Hz]50
-
Depth [mm]204
-
Input power [VA]5
-
FamilyLV
-
Width [mm]99
-
Height [mm]136.2
-
Accuracy [s]0.5
-
storage temperature [°C]from -40 to 75
-
Wire cross-section (cord) [mm²]6
-
PKWIU27.11.42.0
-
Length [mm]204
-
Power [VA]5
-
Fixingscrewed
-
Level of securityIP20
-
Connection typeScrew connection
-
Operating temperature range [°C]from -5 to 40
-
Gear300;5
-
Rated insulation voltage [kV]3
-
Conductor cross-section (wire) [mm²]6
Other technical data
-
ModelPipe stick current converter
-
Rated secondary current5 A
-
Overcurrent limiting factorFS 5
-
With copper railNo
-
Rated primary current300 A
-
Rated secondary apparent power5 VA
-
With shock protectionYes
-
Number of primary inputs1
Bulk packaging
| A kind of package | Karton | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 1,500 | 1,560 |
| Width (m) | 0,099 | 0,110 |
| Length (m) | 0,136 | 0,195 |
| Depth (m) | 0,204 | 0,250 |
