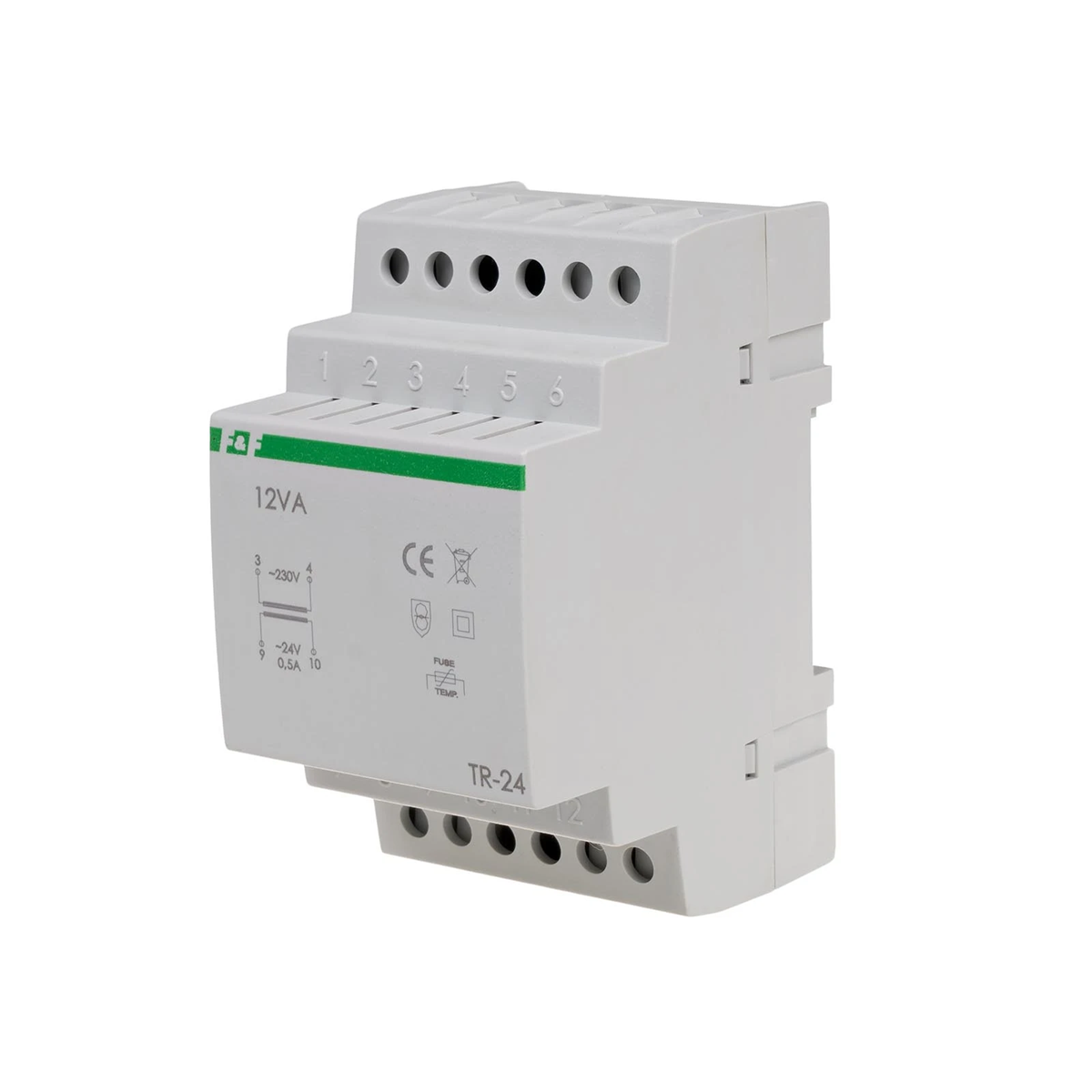

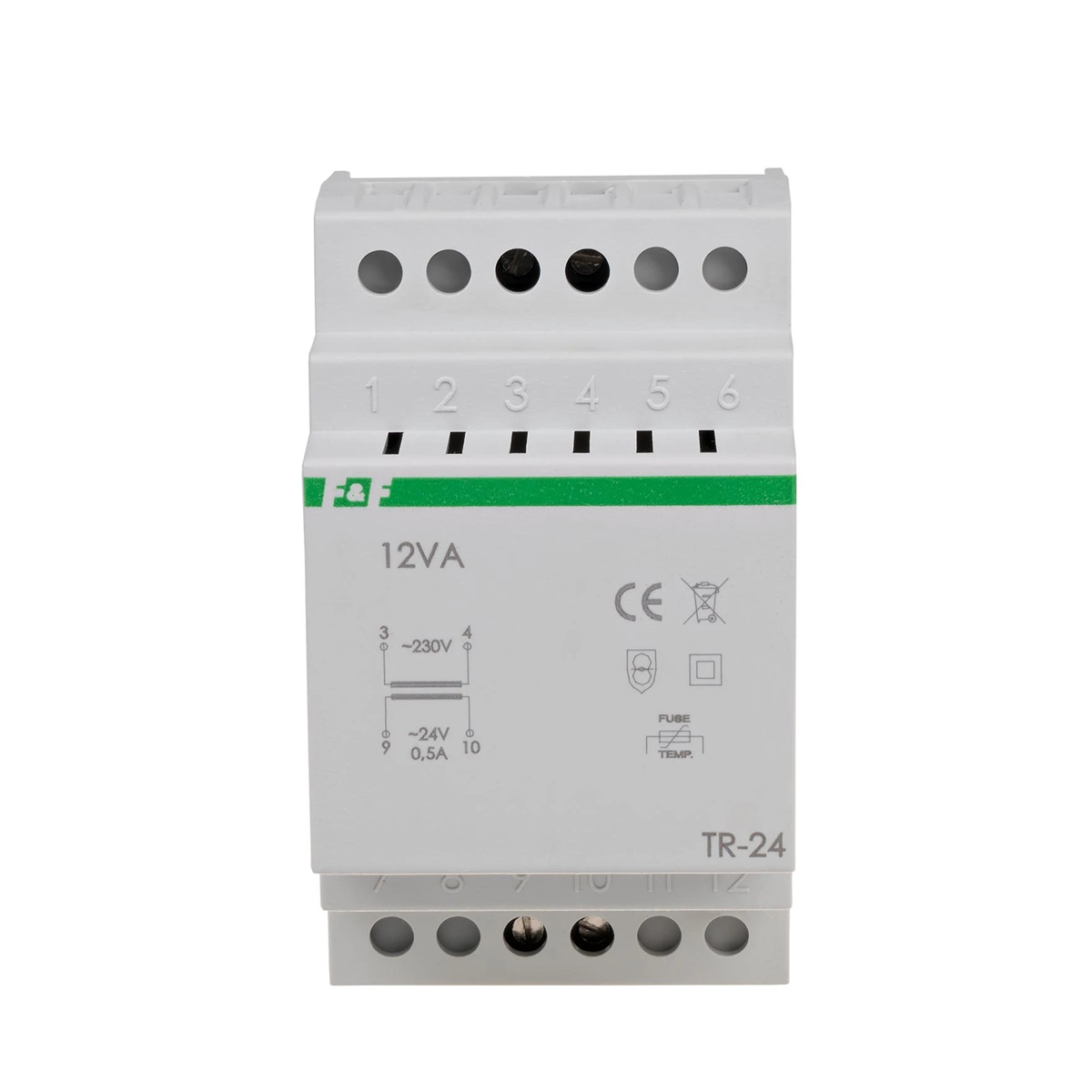

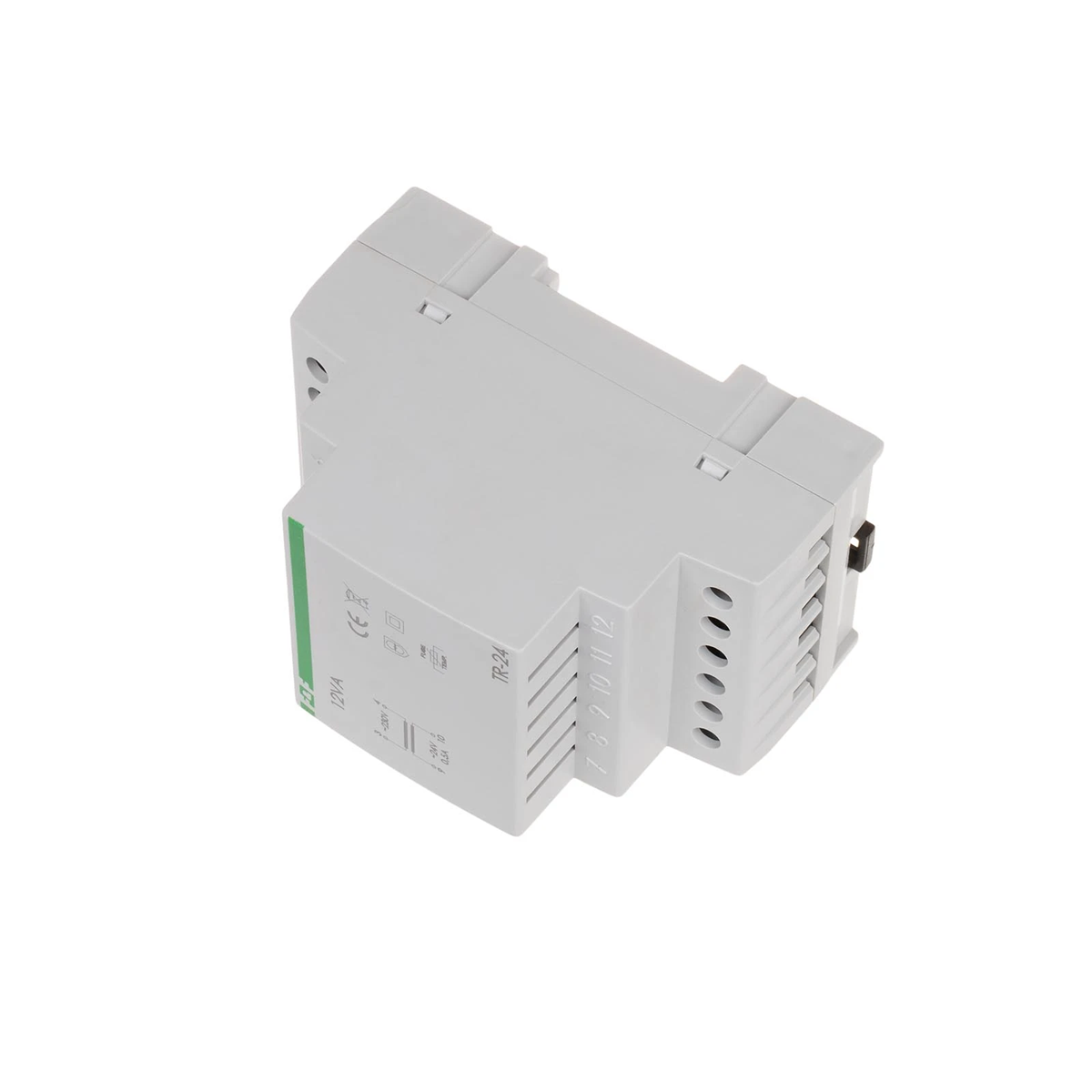

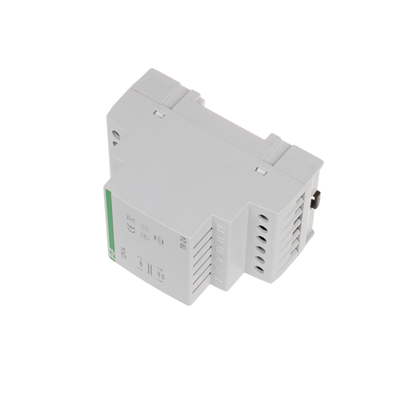

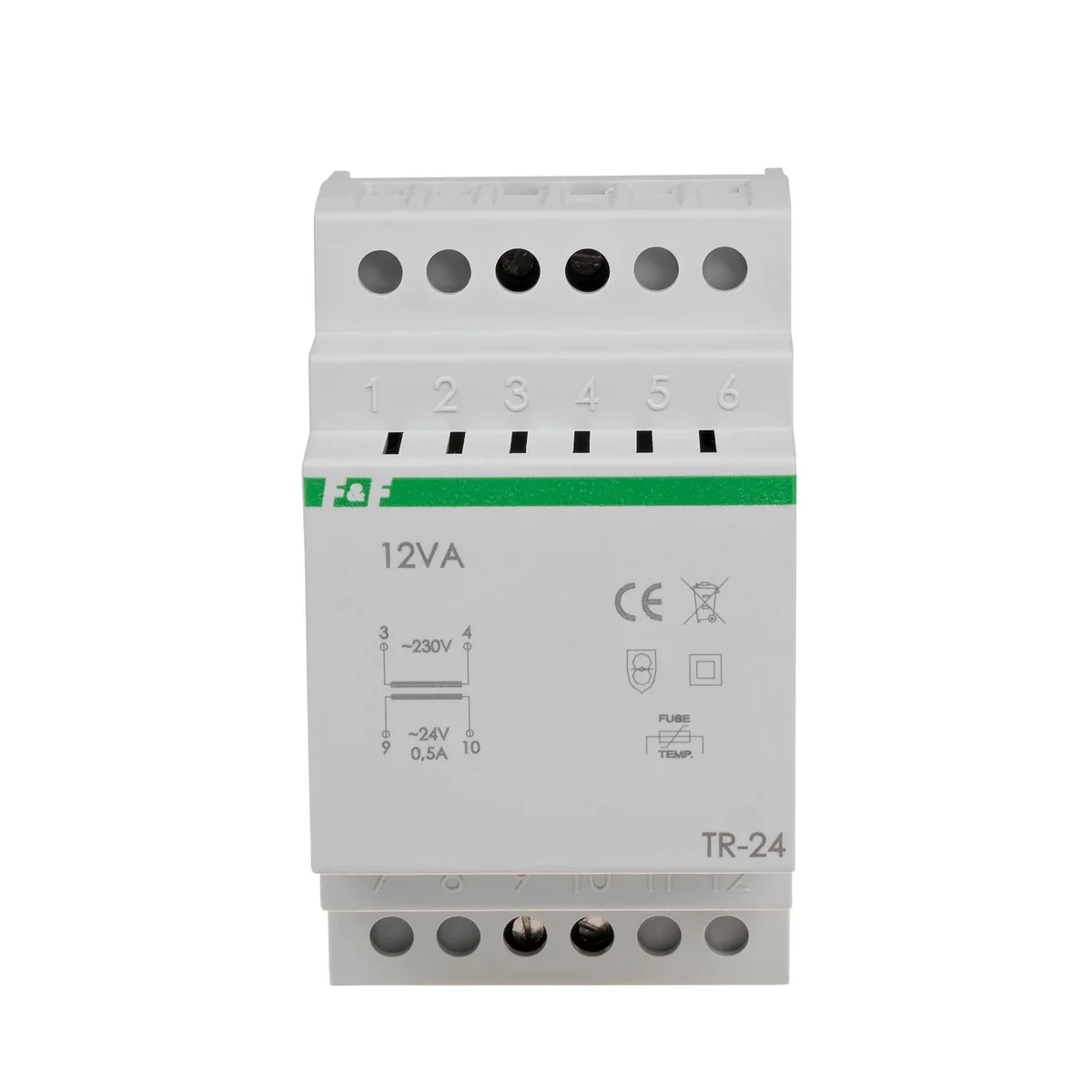

TR-24 mains transformer TR-24
local index:
AUU050FIFQ
Catalog No:
TR-24
EAN code:
5908312596172
Price:
18,71 €
gross / pcs.
(including VAT 23%)
60,35 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Use
TR is used to power electrical and electronic devices that do not require a stable, filtered supply voltage independent of changes in mains voltage. Note!
TR has a one-time electronic thermal fuse protecting the transformer against exceeding the temperature of 115°C. For complete protection of the receiver, it is recommended to connect an additional 1.5A overcurrent protection (e.g. BZ-1 fuse module) on the secondary side.
Technical data
-
Output power [W]12VA
-
Input voltage [V]230
-
Working temperature [°C]-25-35
-
Dimensions3 modules (52.5mm)
-
Package height [mm]150
-
Package weight [kg]0.31
-
PKWIU27.11.42.0
-
InstallationOn the TH-35 rail
-
Output current [A]0.5A
-
Weight [g]310
-
Thermal protectionDisposable thermal fuse
-
Package width [mm]60
-
Output current [A]0.5A
Other technical data
-
Built as safety transformerNo
-
Built as energy saving transformerNo
-
Secondary voltage 124 ... 24 V
-
Short-circuit-proofNo
-
Height90 mm
-
Degree of protection (IP)IP20
-
Suitable for mounting on PCBNo
-
Built as isolating transformerYes
-
Primary voltage 1230 ... 230 V
-
Rated apparent power12 VA
-
Width52.5 mm
-
Depth65 mm
-
Ring coreNo
-
Modular versionYes
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,444 |
| Width (m) | 0,056 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
